DeckLink IPSDI HD

Capture and playback for IP broadcast systems 2110 - DeckLink IP/SDI HD

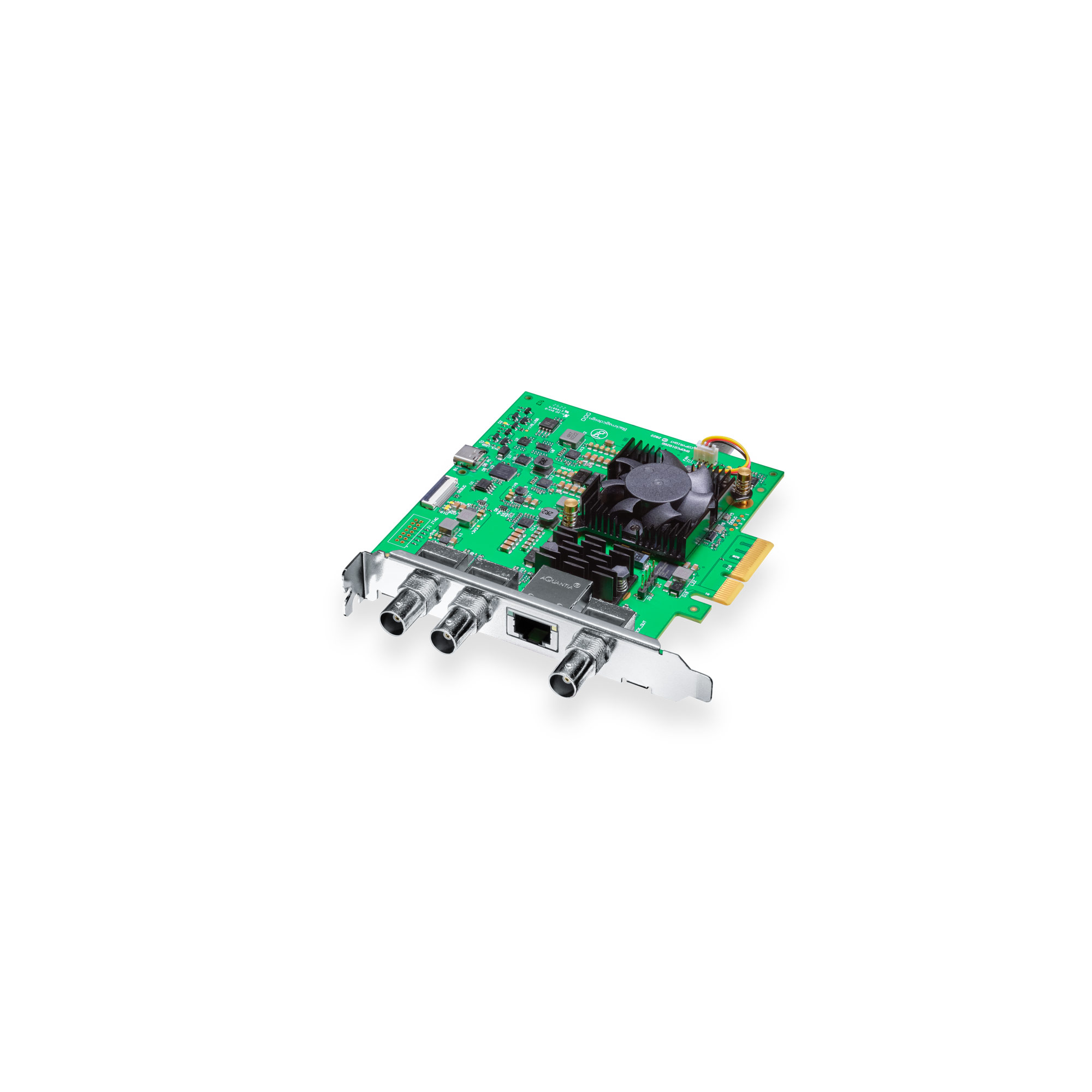

Connect to both 3G-SDI and 2110 IP systems with DeckLink IP/SDI HD.
It has 2 capture and playback channels to 2110 IP via RJ45 Ethernet, 2 direction configurable 3G-SDI connections and reference out.
It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, and supports 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.

Connections
° SDI Ports: 2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output, 16 channels audio embedded in SD and HD.
° 10G Ethernet Port: 1 x 10G BASE-T, 10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels.
° Sync Output: Tri-Sync or Black Burst.
° Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

° Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2
Uncompressed 10-bit 4:4:4
