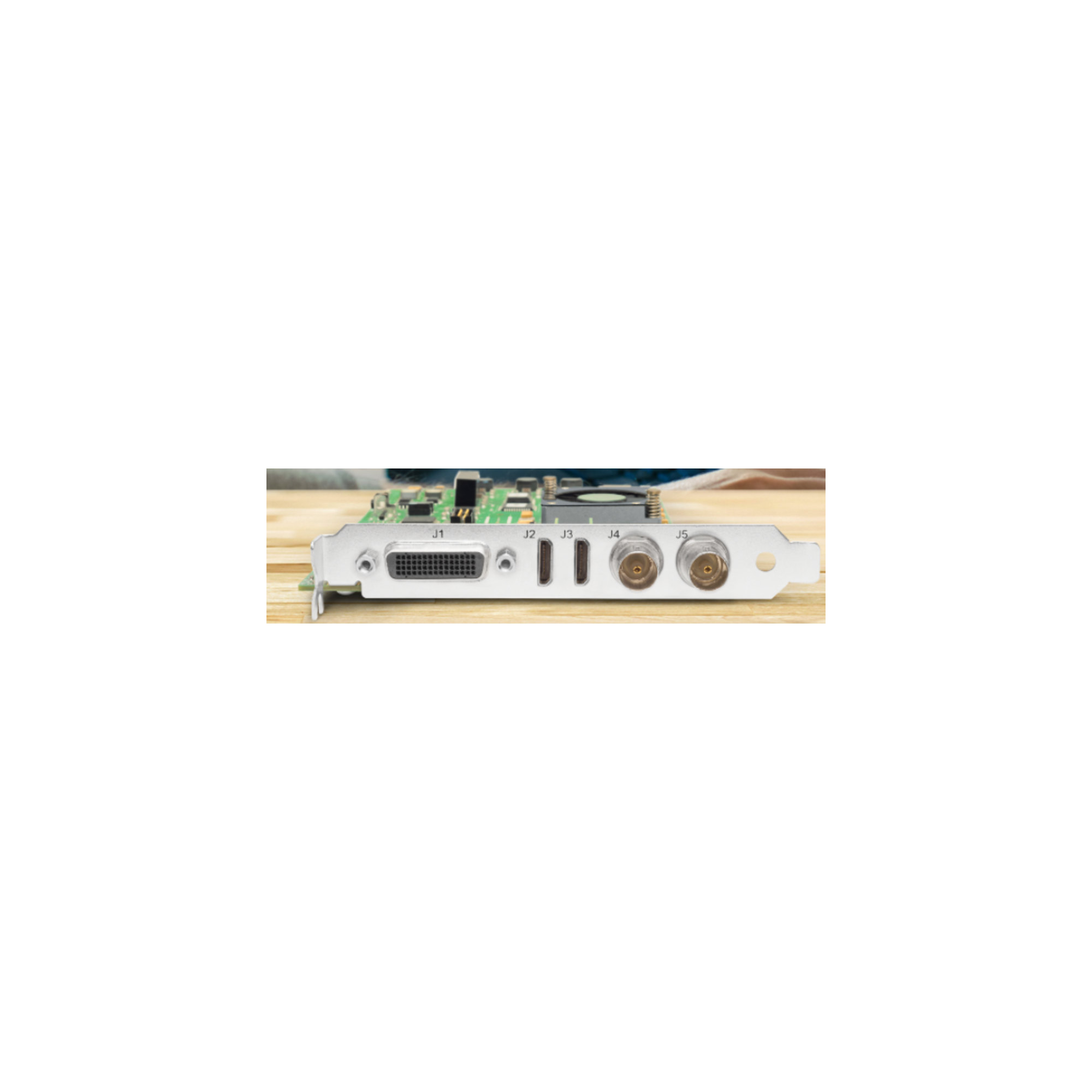

KONA-LHI-R0

Video Formats:
(2K) 2048 x 1080p 23.98, 24, 25
(2K) 2048 x 1080PsF 23.98, 24
(HD) 1080i 50, 59.94, 60
(HD) 1080PsF 23.98, 24
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Video Input Digital:
3G-SDI, SMPTE 425
YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
YCbCr 4:2:2 10-bit, 8-bit
HDMI v1.3
30-bits/pixel, RGB or YUV, 2.25 Gbps
SD, HD, 1080p 50/60 (1x mini-HDMI)

Video Output Digital:
3G-SDI, SMPTE 425
YCbCr 4:2:2 10-bit
1.5G-SDI, SMPTE 292M
Single Link HD-SDI YCbCr 4:2:2 10-bit
270 Mbps SDI, SMPTE 259M-C
YCbCr 4:2:2 10-bit, 8-bit
HDMI v1.3
30-bits/pixel, RGB or YUV, 2.25 Gbps
SD, HD, 1080p 50/60 (1x mini-HDMI)

Video Input Analog:
Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3 x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit D/A, 8x oversampling
+/- .2 dB to 5.0 MHz Y Frequency Response
+/- .2 dB to 1 MHz C Frequency Response
.5% 2T pulse response
<1% Diff Phase
<1% Diff Gain
<1 ns Y/C delay inequity

Video Output Analog:
Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
12-bit D/A, 8x oversampling
+/- .2 dB to 5.0 MHz Y frequency response
+/- .2 dB to 1 MHz C frequency response
.5% 2T pulse response
<1% Diff Phase
<1% Diff Gain
<1 ns Y/C delay inequity

Audio Input Digital:
8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
2-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)

Audio Input Analog:
2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box)
+24 dBu full scale digital
+/- 0.2 dB 20 Hz to 20 kHz frequency response

Audio Output Digital:
8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
2-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)

Audio Output Analog:
2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box)
+24 dBu full scale digital (0 dBFS)
+/- 0.2 dB 20 Hz to 20 kHz frequency response
2-Channel unbalanced output (via 2x RCA jacks on optional KLHi-Box)

Up-Conversion:
Hardware 10-bit
Anamorphic: fullscreen
Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars
Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
Zoom Letterbox: results in image zoomed to fill fullscreen
Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

Down-Conversion:
Hardware 10-bit
Anamorphic: fullscreen
Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
Crop: image is cropped to fit new screen size

Cross-Conversion:
Hardware 10-bit
1080i to 720p
720p to 1080i
720p to 1080PsF

SD to SD Aspect Ratio Conversion:
Letterbox: This transforms SD anamorphic material to a letterboxed image
H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
V Crop: Will transform SD letterbox material to an anamorphic image

Size (w x d x h): 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)
Weight: 0.7 lb (0.4 kg)
Power: 13W typical, 15W maximum
