T-TAP-PRO-R0

12G-SDI and HDMI v2.0 output 4K/HD with 12/10-bit and HDR (Thunderbolt cable not included)

Compact Unit, Connects via Thunderbolt 3
12G-SDI and HDMI 2.0 Output
DCI 4K/UHD 4K/2K/HD/SD Format Support
RGB 4:4:4 12-Bit, YCbCr 4:2:2 10-Bit
HDMI 8-Channel/12G-SDI 16-Channel Audio
PQ/HLG/HDR10/Dolby Vision
Headphone Jack with Audio Level Control
Windows and macOS Support
4K Closed Captioning Support
Power Supply Included

Output up to 4K video from your Thunderbolt 3-enabled Windows/macOS computer or NLE to HDMI and SDI destinations for live broadcast, monitoring, switching, and recording workflows with the T-TAP Pro from AJA. The T-Tap Pro improves on its predecessor by providing output of up to 10/12-bit 4:4:4 video in up to DCI 4K60 resolution. The ultracompact T-Tap Pro outputs video and embedded audio from a Thunderbolt 3-enabled computer and outputs it in the same broadcast-quality to professional and consumer monitors and recording gear via 12G-SDI and HDMI 2.0 outputs.

Both outputs can be used simultaneously at all times, and the HDMI output can be connected directly into 4K HDMI monitors for monitoring HDR video in PQ, HLG, HDR10, and Dolby Vision formats with third-party support. Audio support includes 16 channels of audio via the 12G-SDI output and up to 8 channels of audio via the HDMI output. Other features include 4K closed caption support, VPID signaling via SDI, HDR metadata, auto playback detection, a headphone jack, front-panel audio levels, and connection status indicators.

The T-TAP Pro connects to the computer's Thunderbolt 3 connector and is powered using the included power supply.
Key Features
12G-SDI and HDMI 2.0 connectivity for working with DCI 4K or UHD 4K over a single cable up to 60p
SDI output supports 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI, and 270 Mb/s
DCI 4K, UHD 4K, 2K, HD, and SD output and monitoring up to 50/60p
1 x 12G-SDI BNC with 16-channel embedded audio
1 x HDMI 2.0 with 8-channel embedded audio
1 x Thunderbolt 3 connector

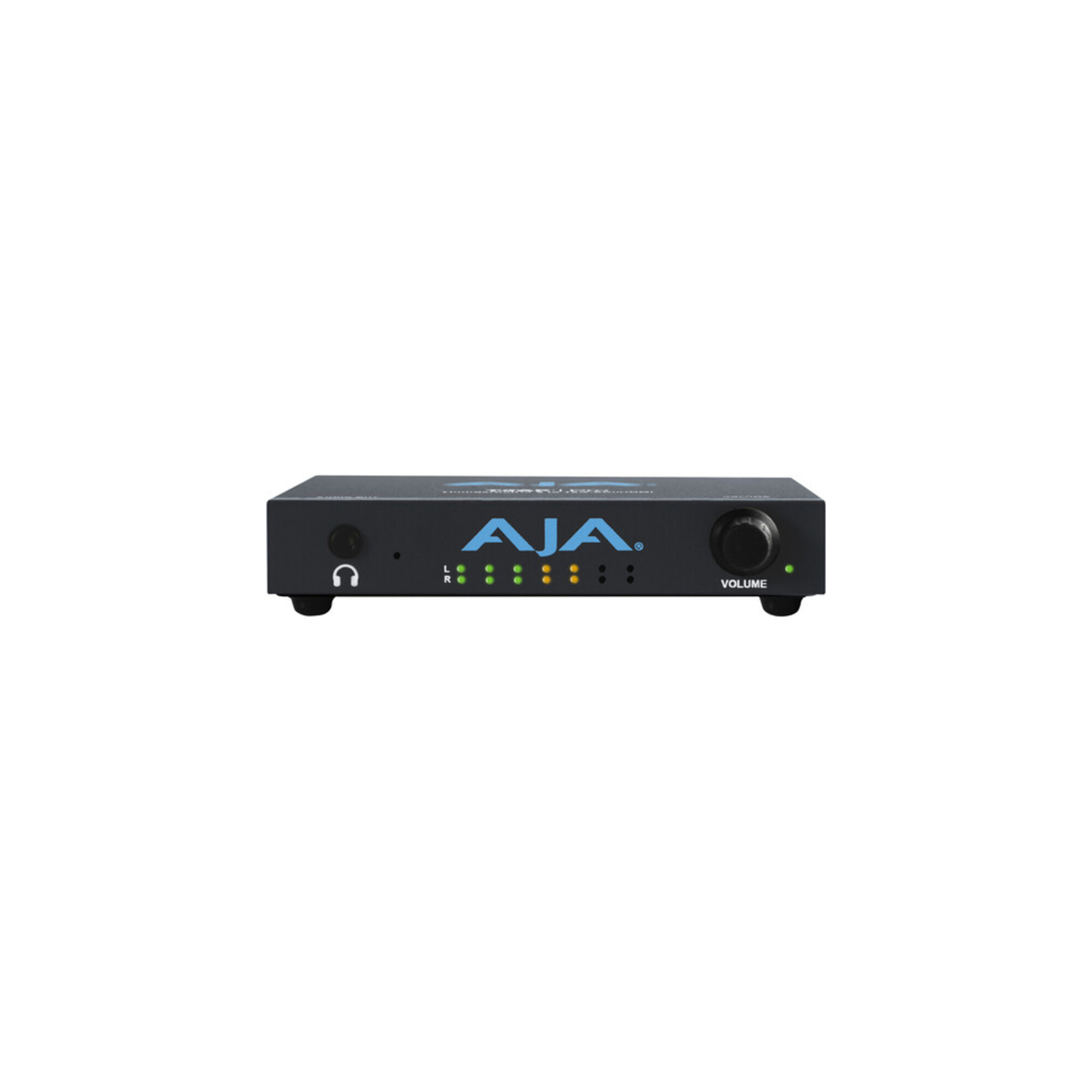

Compact, silent, and mobile form factor with front-panel audio levels reference display
RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit, and HFR workflows supported
4K Closed Caption support
VPID signaling for SDR/HDR transfer characteristics, colorimetry, and luminance via SDI
PQ, HLG, HDR10, and Dolby Vision with third-party support
HDR metadata auto playback detection
Headphone jack and quick access audio level control for mobile environment
Thunderbolt, power, and bitfile connection status indicators
Power supply included
