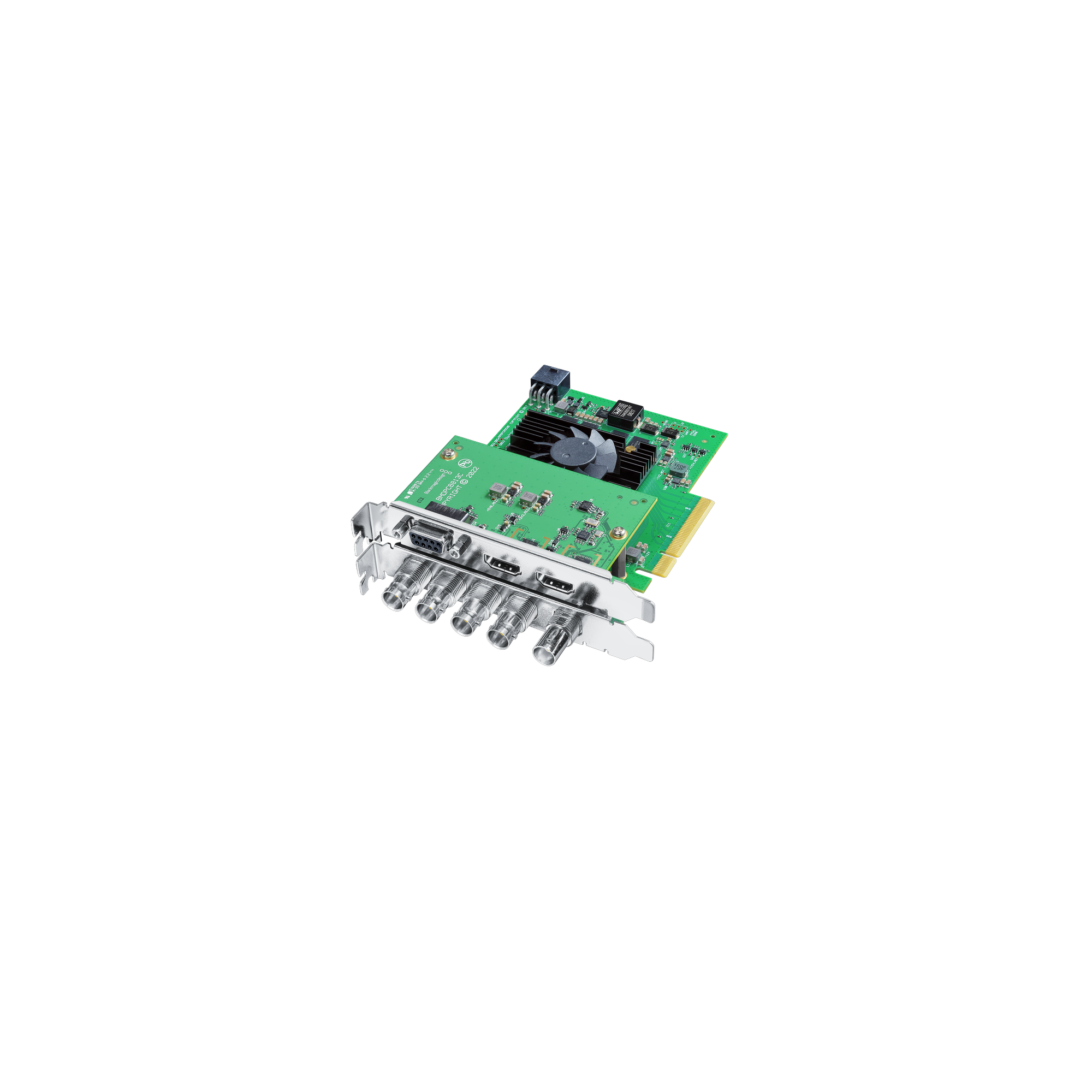

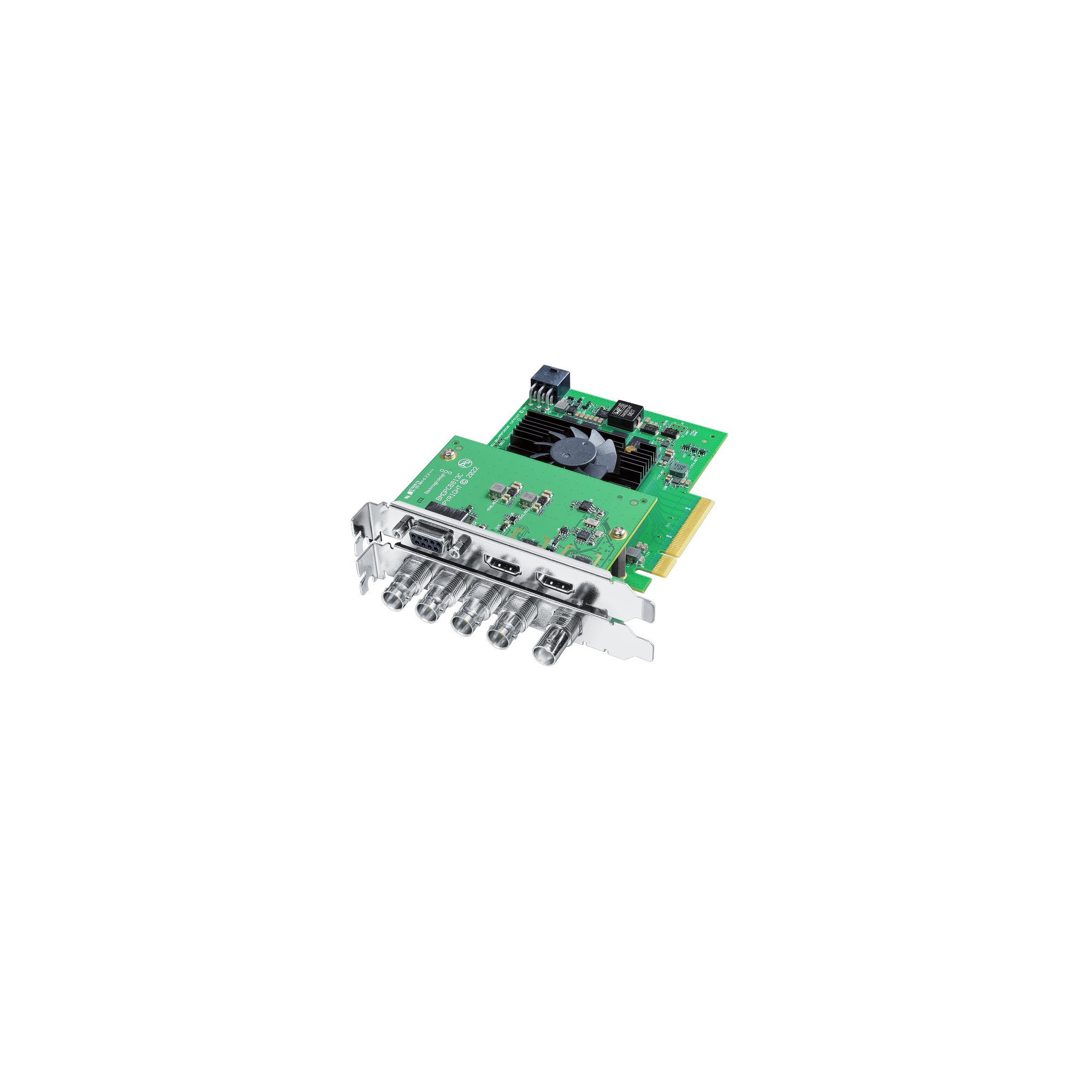

DeckLink 8K PRO G2

Name: DeckLink 8K PRO G2
Brand: Blackmagic
SKU: DeckLink 8K PRO G2
Price: 1525478 NGN
Availability: InStock

Blackmagic

EAN: 9338716008579

High resolution 8K capture and playback SD e HD e 4K, 8k SDI & HDMI

go to the technical sheet

₦ 1,525,478.00

₦ 1,419,049.00 VAT excl.

Available 2 unit

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

DeckLink 8K Pro G2 includes four bi-directional 12G-SDI plus HDMI 2.1 connections to support all SD, HD, Ultra HD, 4K and 8K standards, making it the ultimate professional 8K PCIe capture and playback card for designed for feature film production. You can also use the free DeckLink SDK to configure up to 4 video streams in any direction, format or frame rate up to 4K DCI 60p, for true multi channel capture and playback.

° DeckLink 8K Pro G2 supports 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color
° In addition, you can work at up to 120 frames per second in HD and 4K, and up to 60 frames per second in 8K
° The four 12G-SDI connections support up to 64 channels of embedded audio
° DeckLink 8K Pro G2 is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows!

Connections
SDI video inputs:4 x bi-directional 12G-SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI video outputs: 4 x bi-directional 12G-SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.

SDI audio inputs:
&emsp, 16 Channels embedded in SD/HD/2K.
&emsp, 64 Channels embedded in 4K/8K.

SDI audio outputs:
&emsp, 16 Channels embedded in SD/HD/2K.
&emsp, 64 Channels embedded in 4K/8K.

HDMI video inputs:
&emsp, 1 x HDMI 2.1
HDMI video outputs:
&emsp, 1 x HDMI 2.1
HDMI audio inputs:
&emsp, 8 Channels embedded in TMDS.
&emsp, 32 Channels embedded in FRL.
HDMI audio outputs:
&emsp, 8 Channels embedded in TMDS.
&emsp, 32 Channels embedded in FRL.

Sync Input: Tri-Sync or Black Burst.
Remote Control: 1 x RS-422 Out
Computer interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.

SDI Video Standards
SD Video Standards
HD Video Standards
&emsp, 720p50, 720p59.94, 720p60
&emsp, 1080i50, 1080i59.94, 1080i60
&emsp, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
&emsp, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
&emsp, 2K Video Standards
&emsp, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88 DCI, 2Kp120 DCI
&emsp, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
&emsp, Ultra HD Video Standards
&emsp, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120

4K Video Standards
&emsp, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI

8K Video Standards
&emsp, 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
8K DCI Video Standards
&emsp, 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI

3D SDI Video Standards
&emsp, 720p50, 720p59.94, 720p60
&emsp, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080p95.90, 1080p96, 1080p100, 1080p119.88, 1080p120
&emsp, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
&emsp, 1080i50, 1080i59.94, 1080i60
&emsp, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI , 2Kp59.94 DCI, 2Kp60 DCI, 2Kp95.90 DCI, 2Kp96 DCI, 2Kp100 DCI, 2Kp119.88

DCI, 2Kp120 DCI
&emsp, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
&emsp, 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI, 4Kp95.90 DCI, 4Kp96 DCI, 4Kp100 DCI, 4Kp119.88 DCI, 4Kp120 DCI
&emsp, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60, 2160p95.90, 2160p96, 2160p100, 2160p119.88, 2160p120

SDI Compliance
&emsp, SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE &emsp, 2081-12, SMPTE 2082-10, SMPTE 2082-11, SMPTE 2082-12 and SMPTE ST2108-1

SDI Metadata Support
&emsp, RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling
&emsp, Television standard sample rate of 48 kHz at 24-bit.

SDI Video Sampling
&emsp, 4:2:2, 4:4:4

SDI Color Precision
&emsp, 8, 10, 12-bit RGB 4:4:4 in all modes up to 8Kp30 DCI, and 8, 10-bit YUV 4:2:2 in all modes.

Color Space
&emsp, REC 601, REC 709, REC 2020.

HDR Support
&emsp, HDR static metadata packing, HLG and PQ transfer characteristics.
&emsp, Multiple Rate Support

HDMI Video Sampling
&emsp, 4:2:2, 4:4:4 and 4:2:0*

HDMI Color Precision
&emsp, 8, 10 and 12-bit - supported video sampling and colour precision are dependent on connected HDMI device capabilities, video resolution and frame rate.

HDMI Color Space
&emsp, REC 601, REC 709, REC 2020.

HDR Support
&emsp, HDR static metadata packing, HLG and PQ transfer characteristics.

Copy Protection
&emsp, HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
