AV.io HD +

Name: AV.io HD +
Brand: Epiphan
SKU: AV.io HD +
Price: 621.4 EUR
Availability: OutOfStock

Epiphan

go to the technical sheet

€ 621,40

€ 578,05 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

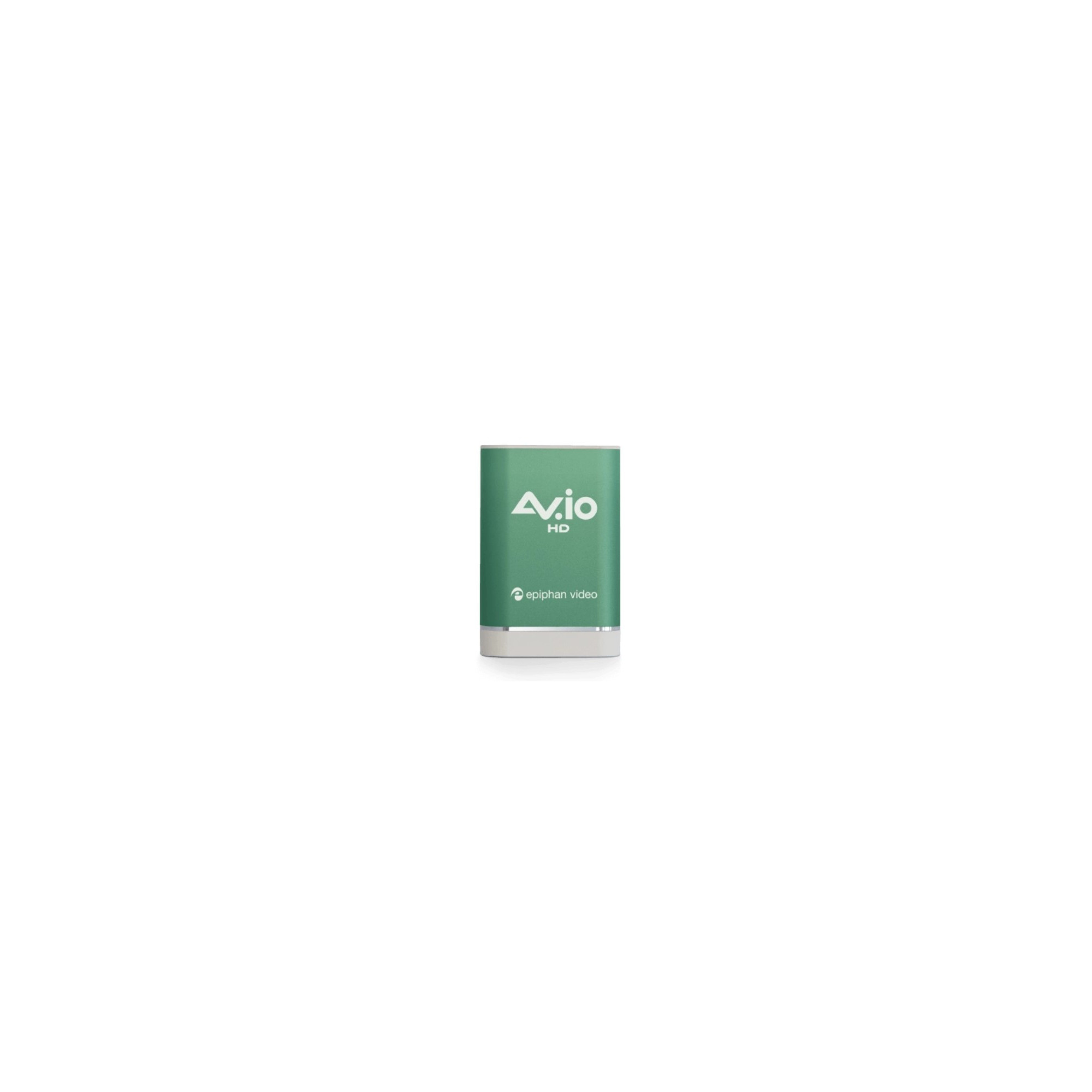

Take video and audio from HDMI compatible cameras and audio mixers and capture via USB 3.0 connection using this AV.IO HD+ USB Portable Video Grabber from Epiphan. One HDMI input and one 3.5mm input connect to the recording devices of your choice, while the USB Type-B output connects to your computer to deliver 1080p video to a compatible program.

The AV.IO HD+ is compatible with Windows, macOS, and Linux operating systems as well as programs like Zoom and Microsoft teams. Its ultracompact size makes it easy to take on the go and its metal exterior ensures it remains durable for repeated use.
Features at a Glance

Compatible with Windows, macOS, and Linux systems

Powered via USB Type-B

Automatically adjust image based on the software you're using, delivering superior quality even when swapping sources

Compatible with any program that accepts USB as a video source like Zoom, Microsoft Teams, Wirecast and OBS

High-quality audio capture via HDMI source or 3.5mm input from a mixer or external source

One LED light indicates power, readiness, and operation status

Cables & Connectors

Lindy

USB 3.0 cable

€ 19,35 VAT included

Available 10 unit in 4 Days

Input
Video Input Connectors: 1 x HDMI Female
Input Video Format:
HDMI (4:2:2 YUV)
WUXGA (1920 x 1200)
Audio Input Connectors: 1 x 1/8" / 3.5 mm TRS Stereo Analog
Input Audio Format:
LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Input: HDMI

Output
Output Video Format :
USB Type-B (4:2:2 YUV)
WUXGA (1920 x 1200) up to 60 fps
1080p up to 60 fps
WUXGA+ (1680 x 1050) up to 60 fps
HD+ (1600 x 900) up to 60 fps
UXGA (1600 x 1200) up to 60 fps
WXGA+ (1440 x 900) up to 60 fps
FWXGA (1366 x 768) up to 60 fps
1360 x 768 up to 60 fps
1280 x 960 up to 60 fps
WXGA (1280 x 800) up to 60 fps
1280 x 720 (Non-Standard WXGA) up to 60 fps
SXGA (1280 x 1024) up to 60 fps
XGA+ (1152 x 864) up to 60 fps
XGA (1024 x 768) up to 60 fps
1024 x 576 up to 60 fps
960 x 540 up to 60 fps
856 x 480 up to 60 fps
SVGA (800 x 600) up to 60 fps
PAL (768 x 576) up to 60 fps
720 x 576 up to 60 fps
720 x 480 up to 60 fps
VGA (640 x 480) up to 60 fps
640 x 360 up to 60 fps
QVGA (320 x 240) up to 60 fps
Output Audio Format Analog: 48 kHz / 16-Bit
Embedded Audio Output: USB Type-B

Standards
HDR Compatibility: None
OS Compatibility:
Windows 7 or Later
macOS 10.10 or Later
Linux 3.5.0 or Later
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Power Consumption: Device: 200 mA

General
Dimensions:
3.54 x 2.36 x 0.91" / 89.92 x 59.94 x 23.11 mm

Packaging Info
Package Weight: 0.89 lb
Box Dimensions (LxWxH): 6.5 x 6.5 x 2.7"
