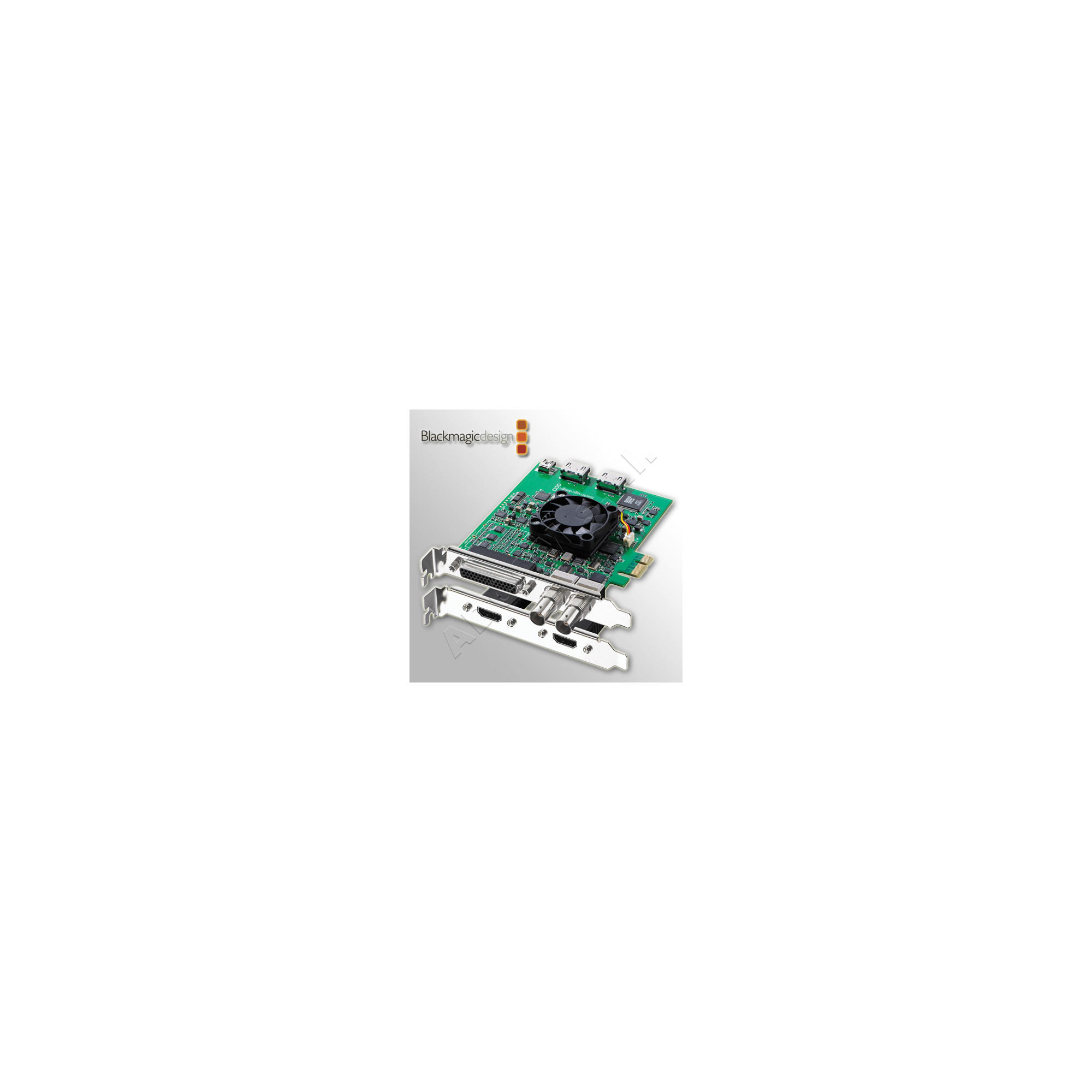

DeckLink Studio 4K

DeckLink Studio™ Connections
================

SDI Video Input 1 x 10 bit SD/HD switchable
SDI Video Output 1 x 10 bit SD/HD switchable x 10-bit SD only, down converted or key
Supported Video formats 525i NTSC, 625i PAL, 720HD and 1080HD
Analog Video Input 1 x Component video on 3 BNCs
1 x S-Video video on S-Video connector
1 x Composite NTSC/PAL on 1 BNC
Analog Video Output 1 x Component video on 3 BNCs
1 x S-Video video on S-Video connector
1 x Composite NTSC/PAL on 1 BNC
AES/EBU Audio Input 2 channel unbalanced AES/EBU digital audio with sample rate converter
AES/EBU Audio Output 2 channel unbalanced AES/EBU digital audio
Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU audio channels out when using this feature
SDI Audio Input 8 channel embedded in SD and HD
SDI Audio Output 8 channel embedded in SD and HD
Analog Audio Input 4 channels of professional balanced analog audio via 1/4" jack connectors
Analog Audio Output 4 channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 and 4 can switch to AES/EBU outputs
Multiple Rate support Standard definition SDI and high definition SDI
Sync Input Blackburst in SD and 1080i50, 720p50, 1080i59.94, 720p59.94 HD formats or TriSync in all HD formats
Device Control Sony™ compatible RS422 deck control ports
Serial ports TxRx direction reversible under software control
Settings Control DeckLink System Preferences (Intel Mac OS X™) and DeckLink Control Panel (Windows™)
Updates Firmware for cards built into software driver. Loaded at system start, or via updater software


Standards
================
HD Format Support 1080PsF23.98/24, 1080i50, 1080i59.94, 720p50 and 720p59.94.
SD Format Support 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
SDI Compliance SMPTE 259M, 292/296M.
Video Sampling 4:2:2 4:2:2
Color Precision 4:2:2 10-bit 4:2:2 10-bit
Color Space 4:2:2 YUV 4:2:2 YUV
SDI Metadata Support VITC read for 3:2 pulldown removal.
VANC capture and playback using up to 3 lines of video in file. HD RP188.
Audio Sampling Television rate of 48kHz at 24 bit.
Card type PCI Express 1 lane, compatible with 1,4,8 and 16 PCIe slots.


Processing
================
Colorspace Conversion Hardware based real time.
HD Down Conversion Built in hardware down conversion.
High quality down converter always output to SD-SDI, Composite and S-Video outputs when working in HD video formats. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. Software based down conversion.
HD Up Conversion Real-time up conversion from 720HD to 1080HD during video capture.
Real time effects Apple Final Cut Pro™ internal effects in DV, ProRes and uncompressed on Intel Mac OS X™.
Adobe® Premiere Pro® internal effects in DV, MJPEG and uncompressed.


Extras
Software Included Deck Control, Disk Speed Test, LiveKey, FrameLink and Blackmagic driver.
Firmware Upgrade Firmware for cards built into software driver. Loaded at system start, or via updater software.
Installation PCI Express 1 lane, compatible with 1, 4, 8, 16 lane PCI Express slots.
Please see the full system requirements for Mac OS X™ and Windows™.
Mac OS X™ systems require an Intel-based Mac Pro computer.
