Z Cam

6970130770415
Full Frame 8K 30p Cinema Camera Dual native ISO 14 Stops ZRAW EF mount
go to the technical sheet
₦ 11,919,008.00

₦ 11,087,449.00 VAT excl.

Available in 14 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

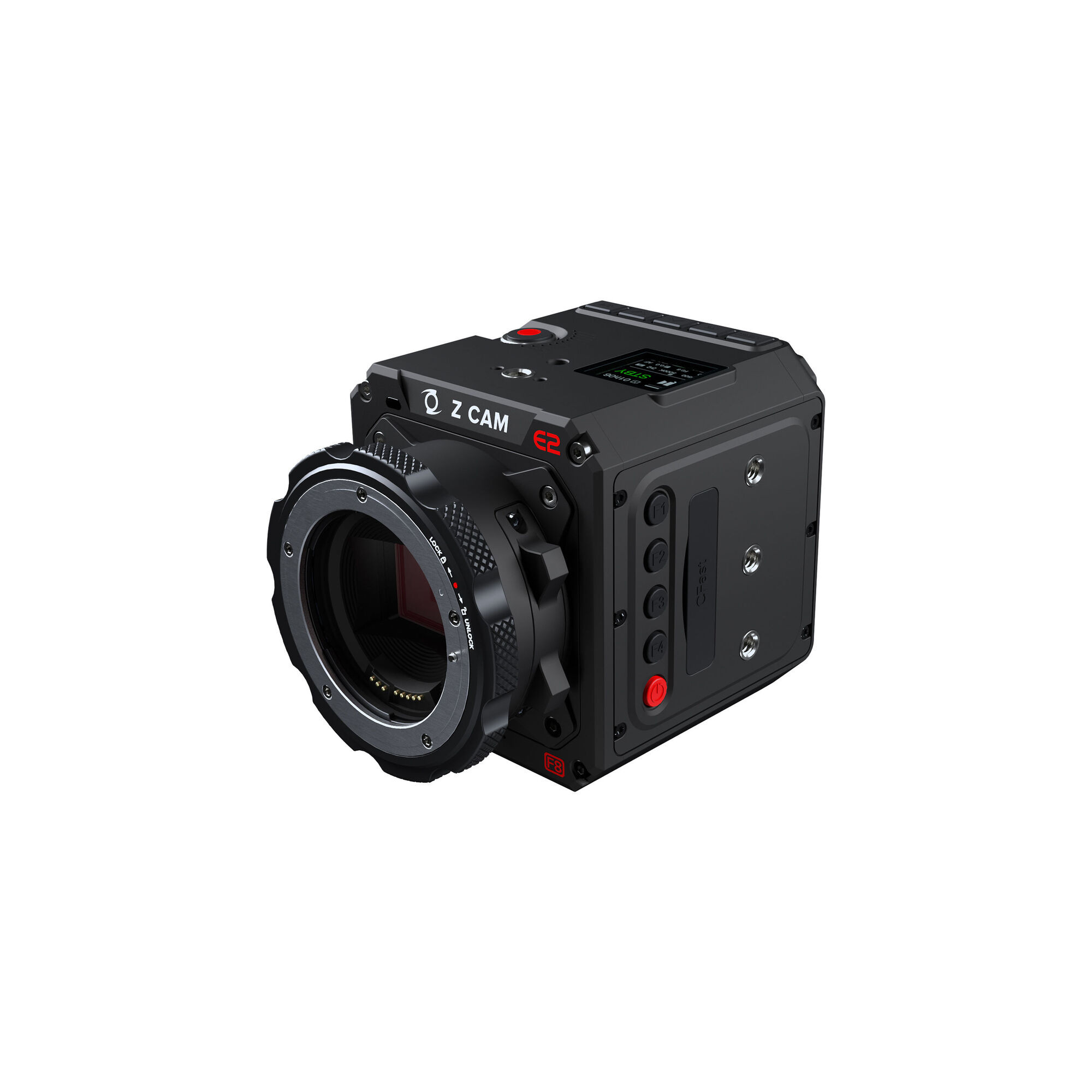

Shoot professional high-definition cinema footage with the Z CAM E2-F8 Full-Frame 8K Cinema Camera with a Canon EF lens mount. The camera features a full-frame sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 8K at up to 30 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats include ZRAW format, MOV and MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and firmware 0.88 allows the camera to record in the ZRAW format. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

The E2-F8 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-F8 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.
Firmware 0.88
Firmware 0.88 enables ZRAW recording to the camera.
8K Capture and Recording

Unburdened by a recording time limit, you can record 8K at up to 30 fps for up to the limit of your recording media's capacity
CMOS sensor with 14 stops of dynamic range
The camera supports ZRAW, REC. 709, Z-Log2, FLAT, and HLG
H.265 (10-bit color) internal recording on CFast 2.0 cards
4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
Full metal housing for efficient heat dissipation

Interfaces and Expandability

USB 3.0 Type-C for camera control and data transformation only
Two serial ports for camera control
Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
LANC port for remote control including power on/off

iOS App
Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview.
Camera Settings

White balance: Auto, preset, manual (2300 to 7500K)
Focus modes: MF, AF, CAF
Image: Brightness, contrast, saturation, sharpness
LUT: REC. 709, Z-Log2, FLAT, HLG
Timecode: Current time, manual input

Camera Body

Made from aluminum for strength and heat dissipation
2-pin LEMO 12 VDC power output
Powers from included 2-pin LEMO 12 VDC adapter or optional L-series batteries


In the Box

Z CAM E2-F8 Full-Frame 8K Cinema Camera (EF Mount)
LEMO Power Cable
AC/DC Power Adapter
Lens Mount Cap

MVTTWINGA
Manfrotto

MVTTWINGA

₦ 1,038,879.00 VAT included
Available in 9 days
MVTTWINMC
Manfrotto

MVTTWINMC

₦ 1,514,513.00 VAT included
Available in 14 days
MVTTWINMA
Manfrotto

MVTTWINMA

₦ 1,038,879.00 VAT included
Available in 14 days
S-8975
Swit

S-8975

₦ 160,443.00 VAT included
Available 2 unit in 4 Days
S-8110S
Swit

S-8110S

₦ 393,019.00 VAT included
Available 2 unit in 4 Days
S-8180S
Swit

S-8180S

₦ 684,989.00 VAT included
Available 2 unit in 4 Days
S-8972
Swit

S-8972

₦ 134,374.00 VAT included
Available 5 unit in 4 Days
TA-ABP-G
Tilta

TA-ABP-G

₦ 94,868.00 VAT included
Available in 24 days
S-8082S
Swit

S-8082S

₦ 289,819.00 VAT included
Available 2 unit in 4 Days
PB-H290S
Swit

PB-H290S

₦ 708,263.00 VAT included
Available 1 unit in 4 Days
PB-S220S
Swit

PB-S220S

₦ 687,193.00 VAT included
Available 2 unit in 4 Days
PB-S98A
Swit

PB-S98A

₦ 383,935.00 VAT included
Available in 34 days
S-8192S
Swit

S-8192S

₦ 700,523.00 VAT included
Available 1 unit in 4 Days
LB-SF65C
Swit

LB-SF65C

₦ 178,879.00 VAT included
Available 3 unit in 4 Days
PB-S98S
Swit

PB-S98S

₦ 222.00 VAT included
Available 8 unit in 4 Days
S-8770
Swit

S-8770

₦ 113,358.00 VAT included
Available 1 unit in 4 Days
S-8083S
Swit

S-8083S

₦ 405,919.00 VAT included
Available 2 unit in 4 Days
S-8113S
Swit

S-8113S

₦ 502,346.00 VAT included
Available 2 unit in 4 Days
PB-R290S+
Swit

PB-R290S+

₦ 1,108,646.00 VAT included
Available 2 unit in 4 Days
PB-M98S
Swit

PB-M98S

₦ 444,350.00 VAT included
Available in 14 days
FF-T07
Tilta

FF-T07

₦ 132,224.00 VAT included
Available 1 unit in 4 Days
FF-T05
Tilta

FF-T05

₦ 1,972,194.00 VAT included
Available in 14 days
FF-T03
Tilta

FF-T03

₦ 1,026,033.00 VAT included
Available in 14 days
PL-E90
Swit

PL-E90

₦ 742,878.00 VAT included
Available 3 unit in 4 Days
PL-E60D
Swit

PL-E60D

₦ 833,661.00 VAT included
Available 2 unit in 4 Days
PL-E90D
Swit

PL-E90D

₦ 1,196,205.00 VAT included
Available 1 unit in 4 Days
LS 300X
Aputure

LS 300X

₦ 2,350,486.00 VAT included
Available in 15 days
LS C300d II VL
Aputure

LS C300d II VL

₦ 2,056,474.00 VAT included
Available 3 unit in 4 Days
PL-E90 3KIT
Swit

PL-E90 3KIT

₦ 3,098,364.00 VAT included
Available 1 unit in 4 Days
S-3602F
Swit

S-3602F

₦ 218,385.00 VAT included
Available 3 unit in 4 Days
SC-302S
Swit

SC-302S

₦ 350,126.00 VAT included
Available 2 unit in 4 Days
MB-T04
Tilta

MB-T04

₦ 1,895,600.00 VAT included
Available 2 unit in 4 Days
UMB-1 Clamp on
Wooden Camera

UMB-1 Clamp on

₦ 2,968,504.00 VAT included
Available in 14 days
MB-T06
Tilta

MB-T06

₦ 2,486,205.00 VAT included
Available in 14 days
MB-T15
Tilta

MB-T15

₦ 142,060.00 VAT included
Available in 14 days
MB-T12
Tilta

MB-T12

₦ 1,032,805.00 VAT included
Available 1 unit in 4 Days
AL-MC
Aputure

AL-MC

₦ 214,139.00 VAT included
Available in 15 days
Mars T1000
Hollyland

Mars T1000

₦ 2,935,286.00 VAT included
Available in 29 days
LH5P II
Portkeys

LH5P II

₦ 898,108.00 VAT included
Available in 14 days
OEYE-RED EVF
Portkeys

OEYE-RED EVF

₦ 2,826,335.00 VAT included
Available 2 unit in 4 Days
Z-CAM EVF
Z Cam

Z-CAM EVF

₦ 2,113,288.00 VAT included
Available 1 unit in 4 Days
MVH502A546BK-1
Manfrotto

MVH502A546BK-1

₦ 1,656,681.00 VAT included
Available in 14 days
MB PL-RL-A55
Manfrotto

MB PL-RL-A55

₦ 834,306.00 VAT included
Available 1 unit in 4 Days
MB MBAG60N
Manfrotto

MB MBAG60N

₦ 103,898.00 VAT included
Available in 14 days
MB MA3-RB
Manfrotto

MB MA3-RB

₦ 503,368.00 VAT included
Available 2 unit in 4 Days
MB PL-RL-A50
Manfrotto

MB PL-RL-A50

₦ 723,958.00 VAT included
Available in 14 days
MB PL-RL-S55
Manfrotto

MB PL-RL-S55

₦ 877,414.00 VAT included
Available 1 unit in 4 Days
MB PL-CL-S
Manfrotto

MB PL-CL-S

₦ 367,165.00 VAT included
Available 2 unit in 4 Days
MB PL-CL-M
Manfrotto

MB PL-CL-M

₦ 470,258.00 VAT included
Available in 14 days
MB PL-CL-L
Manfrotto

MB PL-CL-L

₦ 545,078.00 VAT included
Available 4 unit in 4 Days
244RC
Manfrotto

244RC

₦ 482,405.00 VAT included
Available 1 unit in 4 Days
Z-LARM
Zacuto

Z-LARM

₦ 381,946.00 VAT included
Available in 14 days
Z-SARM
Zacuto

Z-SARM

₦ 363,886.00 VAT included
Available in 14 days
026
Manfrotto

026

₦ 101,855.00 VAT included
Available 60 unit in 4 Days
244MICRO
Manfrotto

244MICRO

₦ 179,954.00 VAT included
Available in 14 days
143N
Manfrotto

143N

₦ 299,924.00 VAT included
Available 4 unit in 4 Days
244
Manfrotto

244

₦ 355,340.00 VAT included
Available in 14 days
143RC
Manfrotto

143RC

₦ 512,774.00 VAT included
Available in 14 days
244N
Manfrotto

244N

₦ 335,453.00 VAT included
Available in 14 days
Arm Mini
ON-AIR

Arm Mini

₦ 43,160.00 VAT included
Available 3 unit in 4 Days
H5
Zoom

H5

₦ 393,019.00 VAT included
Available in 14 days
DR-40X
Tascam

DR-40X

₦ 393,180.00 VAT included
Available 3 unit in 4 Days
MixPre-10 II
Sound Devices

MixPre-10 II

₦ 3,944,013.00 VAT included
Available 2 unit in 4 Days
H2n
Zoom

H2n

₦ 213,225.00 VAT included
Available 1 unit in 4 Days
F6
Zoom

F6

₦ 1,066,560.00 VAT included
Available 2 unit in 4 Days
MixPre-3 II
Sound Devices

MixPre-3 II

₦ 2,033,845.00 VAT included
Available 2 unit in 4 Days
MixPre-6 II
Sound Devices

MixPre-6 II

₦ 2,395,099.00 VAT included
Available 1 unit in 4 Days
R8
Zoom

R8

₦ 530,350.00 VAT included
Available in 19 days
DR-10CS
Tascam

DR-10CS

₦ 476,331.00 VAT included
Available in 11 days
DR-60DMK2
Tascam

DR-60DMK2

₦ 471,010.00 VAT included
Available 2 unit in 4 Days
MB MA3-BP-GM
Manfrotto

MB MA3-BP-GM

₦ 238,380.00 VAT included
Available in 14 days
MB PL2-BP-FX-L
Manfrotto

MB PL2-BP-FX-L

₦ 497,401.00 VAT included
Available in 14 days
MB PL2-BP-BL-M
Manfrotto

MB PL2-BP-BL-M

₦ 303,848.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-A
Manfrotto

MB MA3-BP-A

₦ 174,686.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-H
Manfrotto

MB MA3-BP-H

₦ 256,440.00 VAT included
Available 2 unit in 4 Days
MB MA3-BP-BF
Manfrotto

MB MA3-BP-BF

₦ 218,761.00 VAT included
Available in 14 days
MB PL2-BP-BL-S
Manfrotto

MB PL2-BP-BL-S

₦ 272,780.00 VAT included
Available in 14 days
MB PL2-BP-ML-M
Manfrotto

MB PL2-BP-ML-M

₦ 618,930.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-FM
Manfrotto

MB MA3-BP-FM

₦ 354,104.00 VAT included
Available in 14 days
MB MA3-BP-T
Manfrotto

MB MA3-BP-T

₦ 245,851.00 VAT included
Available 1 unit in 4 Days
MB MA3-BP-C
Manfrotto

MB MA3-BP-C

₦ 183,985.00 VAT included
Available 2 unit in 4 Days
MB PL2-BP-FL-M
Manfrotto

MB PL2-BP-FL-M

₦ 325,993.00 VAT included
Available 2 unit in 4 Days
SF-G2M
Sony

SF-G2M

₦ 243,755.00 VAT included
Available 2 unit in 4 Days
FLOW500
Swit

FLOW500

₦ 1,429,856.00 VAT included
Available in 11 days
COSMO C1
Hollyland

COSMO C1

₦ 987,978.00 VAT included
Available 3 unit in 4 Days
Livetrak L-12
Zoom

Livetrak L-12

₦ 1,102,143.00 VAT included
Available 1 unit in 4 Days
CIAK STD
ON-AIR

CIAK STD

₦ 89,976.00 VAT included
Available 15 unit in 4 Days

Image Sensor
Image Sensor Size 37.09 x 24.75 mm (Full-Frame)
Sensor Type CMOS
Sensor Resolution Effective: 61.00 MP
ISO 400 to 125,000 (Expanded)
400 to 1250 (Native)
Advertised Dynamic Range 14 Stops
Camera
Lens Mount Canon EF
Shutter Speed 1/1 to 1/8000 sec
Shutter Angle 1 to 360°
Built-In ND Filter None
Built-In Microphone Type Stereo
Recording Media 1 x CFast 2.0 Card Slot
Internal Recording
Raw Recording Raw 10-Bit:
4096 x 2160 at 30 fps (300 Mb/s)
Recording Modes H.265/MOV/MP4 4:2:0 10-Bit:
8192 x 3456p at 30 fps (300 Mb/s)
7680 x 4320p at 30 fps (300 Mb/s)
6144 x 3240p at 30 fps (300 Mb/s)
5760 x 3240p at 30 fps (300 Mb/s)
3840 x 2160p at 72 fps (300 Mb/s)
H.264/MOV/MP4 4:2:0 8-Bit:
8192 x 3456p at 30 fps (300 Mb/s)
7680 x 4320p at 30 fps (300 Mb/s)
6144 x 3240p at 30 fps (300 Mb/s)
5760 x 3240p at 30 fps (300 Mb/s)
3840 x 2160p at 30 fps (300 Mb/s)
Audio Recording MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: 2-Channel 24-Bit 48 kHz AAC Audio
MOV: 2-Channel 24-Bit 48 kHz AAC Audio
External Recording
Video Output 4:2:2 10-Bit via HDMI:
3840 x 2160p at 60 fps
Interfaces
Video Connectors 1 x HDMI (HDMI 2.0) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Input
1 x 5-Pin LEMO Input
1 x 1/8" / 3.5 mm Stereo Output
Other I/O 1 x USB Type-C Camera Interface Data, Control Input/Output
1 x 2.5 mm LANC Control Input
1 x RJ45 GIG-E 1000BASE-T, LAN Data, Control, Monitor Input/Output
2 x 4-Pin LEMO Camera Interface Control Input/Output
Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi Control
Display
Display Type Status Display
Power
Battery Type Sony L-Series
Power Connectors 1 x 2-Pin LEMO (12 VDC) Input
1 x 2-Pin LEMO (12 VDC) Output
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Accessory Mount 11 x 1/4"-20 Female
Material of Construction Aluminum
Dimensions 3.91 x 3.9 x 3.59" / 99.2 x 99.1 x 91.2 mm
Packaging Info
Package Weight 4.45 lb
Box Dimensions (LxWxH) 9.9 x 9.2 x 4.9"

Other products in the same category

Previous
Next
PYXIS 12K EF
Blackmagic

PYXIS 12K EF

₦ 9,770,936.00 VAT included
Available in 19 days
  • New
MAVO mark2 LF
Kinefinity

MAVO mark2 LF

₦ 14,026,119.00 VAT included
Available in 19 days
BURANO 8K
Sony

BURANO 8K

₦ 26,874.00 VAT included
Available in 14 days
CIAK Black
Adcom

CIAK Black

₦ 124,430.00 VAT included
Available 27 unit in 4 Days
ILME-FX30.CEC
Sony

ILME-FX30.CEC

₦ 4,046,675.00 VAT included
Available 3 unit in 4 Days
MAVO mark2 S35
Kinefinity

MAVO mark2 S35

₦ 9,424,758.00 VAT included
Available in 19 days
