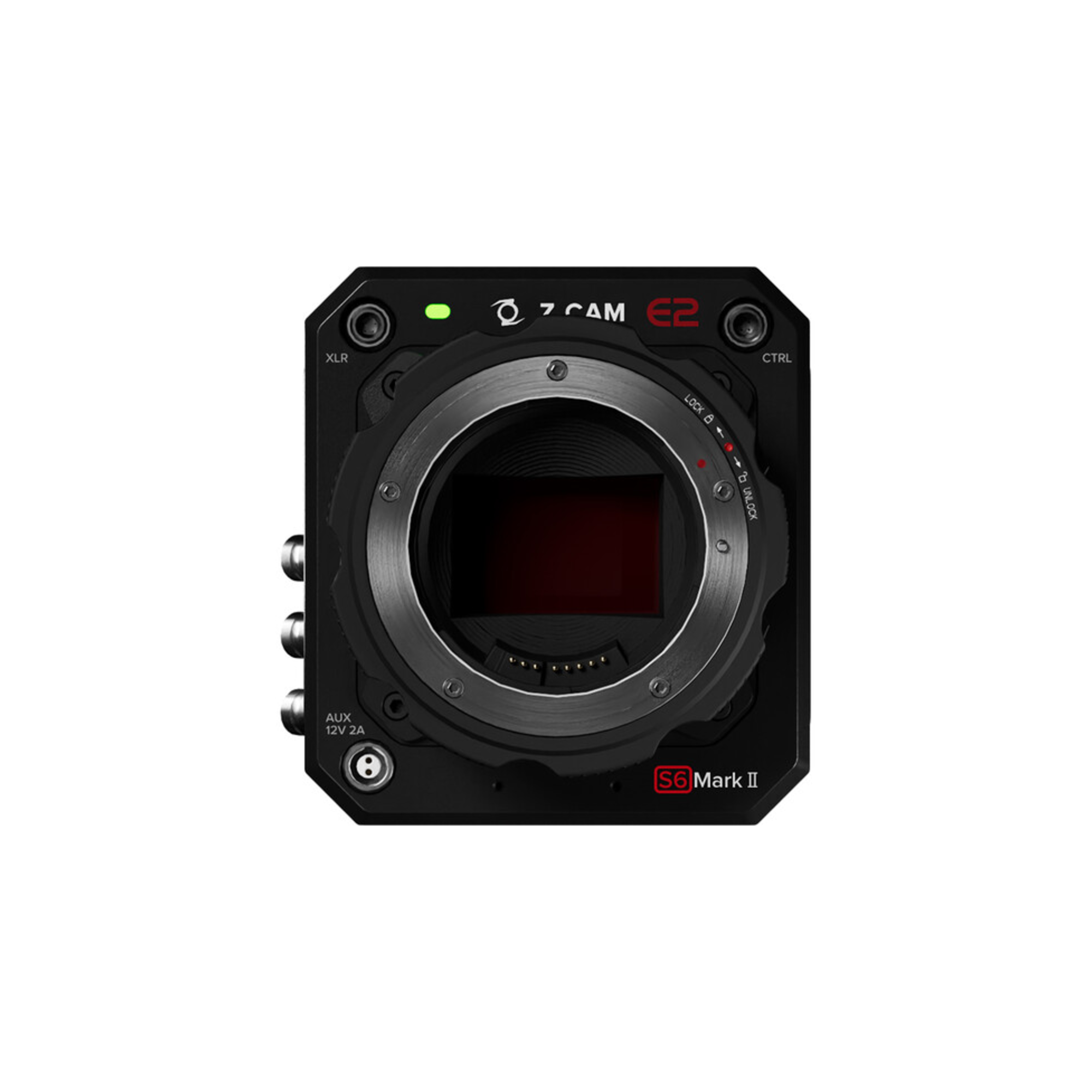

Z CAM E2-S6 Mark II

Name: Z CAM E2-S6 Mark II
Brand: Z Cam
SKU: Z CAM E2-S6 Mark II
Price: 4855364 NGN
Availability: OutOfStock

Z Cam

EAN: 6970130770248

6K Super 35 Professional Cinema Camera (Canon EF),3G-SDI+HDMI,Body Only

go to the technical sheet

₦ 4,855,364.00

₦ 4,516,617.33 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Z-CAM E2-S6 Mark II Super 35 6K Cinema Camera (Canon EF), 3G-SDI + HDMI, BNC Connector, Sensor Size 23.5 x 15.7 mm (Diagonal 28.3mm) - E1704

The Z CAM E2-S6 Mark II Super 35 6K Cinema Camera adds connectivity and stabilization improvements to the previous camera model while maintaining its interchangeable Canon EF lens mount and the ability to record ProRes RAW to select Atomos recorder/monitors.
The camera records 6K video at up to 60 fps and HD to 120 fps, all to a CFexpress Type B card (not included).
Live stream RTSP, RTMP, and SRT protocols directly from the camera via a Gigabit Ethernet connection.
The camera features a Super 35 sensor with 10-bit color support and 14 stops of dynamic range. ISO settings include 400 and 1250 in native mode and a total manual range of 400 to 128,000.

Expanded Interfaces
The E2-S6 Mark II features both HDMI and 3G-SDI output ports for expanded connectivity in comparison to its predecessor.
On top of this, Timecode and Genlock BNC inputs are built-in, allowing you to forgo additional adapters.
Use the USB-C, 2.5mm LANC, and Serial CTRL ports to facilitate camera control with compatible ecosystems.
A Gigabit Ethernet port also helps control the camera and live stream, and it even supports PoE+.
Audio connectivity includes a 3.5mm stereo jack input, 5-pin LEMO input, and 3.5mm stereo jack output.

6K Capture and Recording
- Unburdened by a recording time limit, you can record 6K at up to 60 fps and 120 fps at 4K fps for up to the limit of your recording media's capacity
- CMOS sensor with 14 stops of dynamic range
- Supports ZRAW, REC. 709, Z-Log2, FLAT, HLG, Vivid 0/1/2, and Gamma
- H.265 (10-bit color) internal recording on CFexpress Type-B card
- 4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
- Aluminum alloy housing for efficient heat dissipation

Multicamera Synchronization
Using high sync precision and open API technology, multiple Z CAM units can sync together for live event applications.
Connect the units to a network switch to activate EzLink Sync.
Designate Master and Remote units by daisy-chaining the cameras via Z CAM sync cables.
Cat 6 Ethernet cables interconnect the wireless signals for precise sync at a latency of 0.5 ms.

iOS App
Z Camera is a mobile application that allows camera live preview and control through a Wi-Fi/USB cable connection.
It allows you to start/stop recording and adjust the camera settings remotely, and it has advanced features such as on-camera live preview.
It can be downloaded from the Apple App Store.

Camera
Sensor Type: Super 35mm CMOS Sensor
Sensor Size: 23.5 x 15.7 mm (Diagonal 28.3mm)
Effective Pixels: 26.11M
Dynamic Range: 14 stops
Lens Mount: EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone: Built-in Stereo Microphone

Recording
Resolution & Max Frame Rate:
30fps max @ Open Gate (6244x4168)
48fps max @ C6K (6144x3240)
60fps max @ 6K 2.4:1 (6144x2592)
48fps max @ 6K (5760x3240)
30fps max @ 5K 4:3 (5552x4164)
50fps max @ 5528x3112
60fps max @ C5K (5120x2700)
30fps max @ 5K 6:5 (4992x4160)
60fps max @ 5K (4800x2700)
30fps max @ C4K 3:2 (4096x2732)
30fps max @ C4K Low Noise (4096x2160)
75fps max @ C4K (4096x2160)
100fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4000x4000
30fps max @ 3840x3840
30fps max @ 4K Low Noise (3840x2160)
75fps max @ 4K (3840X2160)
50fps max @ 3456x3456
90fps max @ S16 16:9 (3392x1908)
120fps max @ 2.8K (2868x1512)
120fps max @ 1920x1080
Video Encoder: H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW
RAW over HDMI: ProRes RAW (using Atomos Ninja V), BRAW (using BMD VideoAssist)
Color Bit-depth: 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format: 16-bit 48 kHz
Audio Encoder: AAC / PCM (for MOV only)
File Format: MOV / MP4
Record Mode: Video / Time Lapse Video / Still Image Capture

Settings
ISO: Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 1250
Shutter:
- Shutter Speed: Auto, Manual (1"~ 1/8000")
- Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance: Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode: MF / AF / CAF
Image: Brightness / Contrast / Saturation / Sharpness / Gamma Setting
Image Config: Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code: Current Time / Manual Input / External Input

Storage
Storage Media: CF Express Type B
File System: exFAT

Connectivity
HDMI: HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI: 3G-SDI
Timecode In: LTC Timecode Input via BNC
Genlock: BB/Tri-Level Genlock Input via BNC
USB: USB 3.0 Type C for camera control & data transfer only
Remote Port: 2.5 mm jack socket (Sony LANC compatible)
Audio In: 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out: 3.5 mm stereo jack socket
Wi-Fi: 5G, up to 802.11n, external antenna port
CTRL: Serial port
Ethernet: Gigabit Ethernet port

Power
Battery: Mini V-Lock 14.8V (Battery not included)
Power Input: DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX): DC 12V 2A (2-pin LEMO socket)
Power Consumption: 50W maximum, not inclusive of AUX power consumption

Physical
Camera Body: Aluminum Alloy
Weight - Camera (w/o Lens): 1.21kg (with EF mount)
Weight - Full Package: 1.55kg
Dimensions (HxWxL) - Camera: 105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package: 145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
