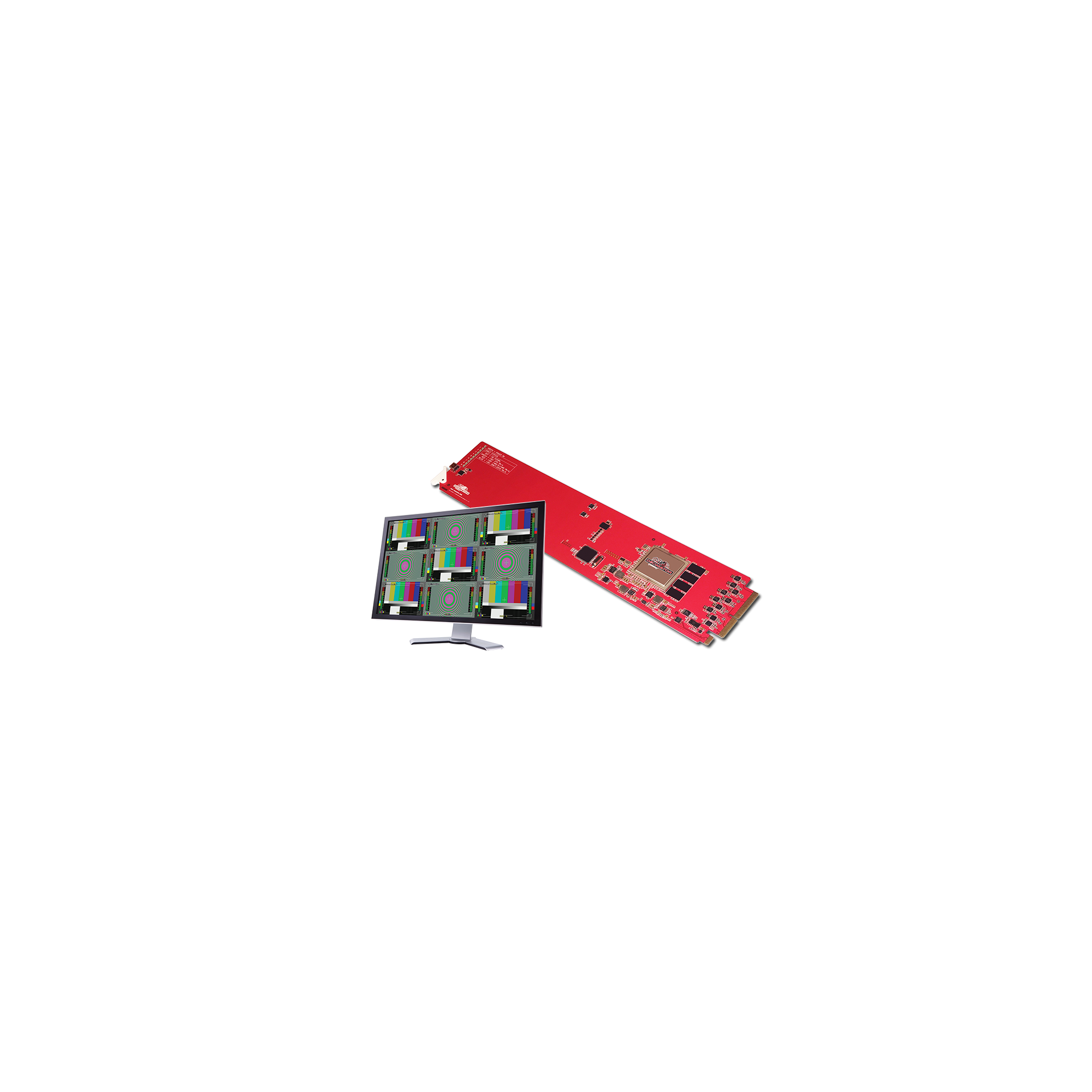

MC-DMON-9S

Supports 3G level A and B on inputs and output, allowing
conversion between 3G level A and B
• Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer
or 9 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual
enables, custom positioning and size
• 16 Channel Audio Metering overlay per window with individual
enables, custom positioning and size
• Safe Action and Safe Title overlay per window with individual
enables and adjustment
• Centre Cross overlay per window with individual enable
• Audio ID overlay
• 3 pin connector on the DR1-10B1G rear module allows
for Dynamic UMD and Tallies via RS422/485 using the
industry standard TSL protocol
• Tallies can be applied to either Tally Boxes (Default),
Outside Safe Action Area or Border
• Tally boxes allows for up to 4 Tallies per window
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen MultiViewer
mode
• Low latency buffering for each input allowing
non-synchronous inputs
• 9 x (3G/HD/SD)-SDI inputs with auto detection
(29 Formats supported in total)
• Each quadrant is independent of the others, allowing any
3G/HD/SD format of any frame rate to be displayed
simultaneously
• Variable aspect ratios per quadrant
• In Pass-Through mode the selected input is passed through
to both the (3G/HD/SD)-SDI outputs
• USB Mini B port for control and firmware updates
• Supports openGear DashBoard for control
• The DR1-10B1G rear is sold separately and has 10 BNC
connectors and a 3 pin connector for RS422/485.
