BAT-SA

Name: BAT-SA
Brand: Lumantek
SKU: BAT-SA
Price: 484609 NGN
Availability: OutOfStock

Lumantek

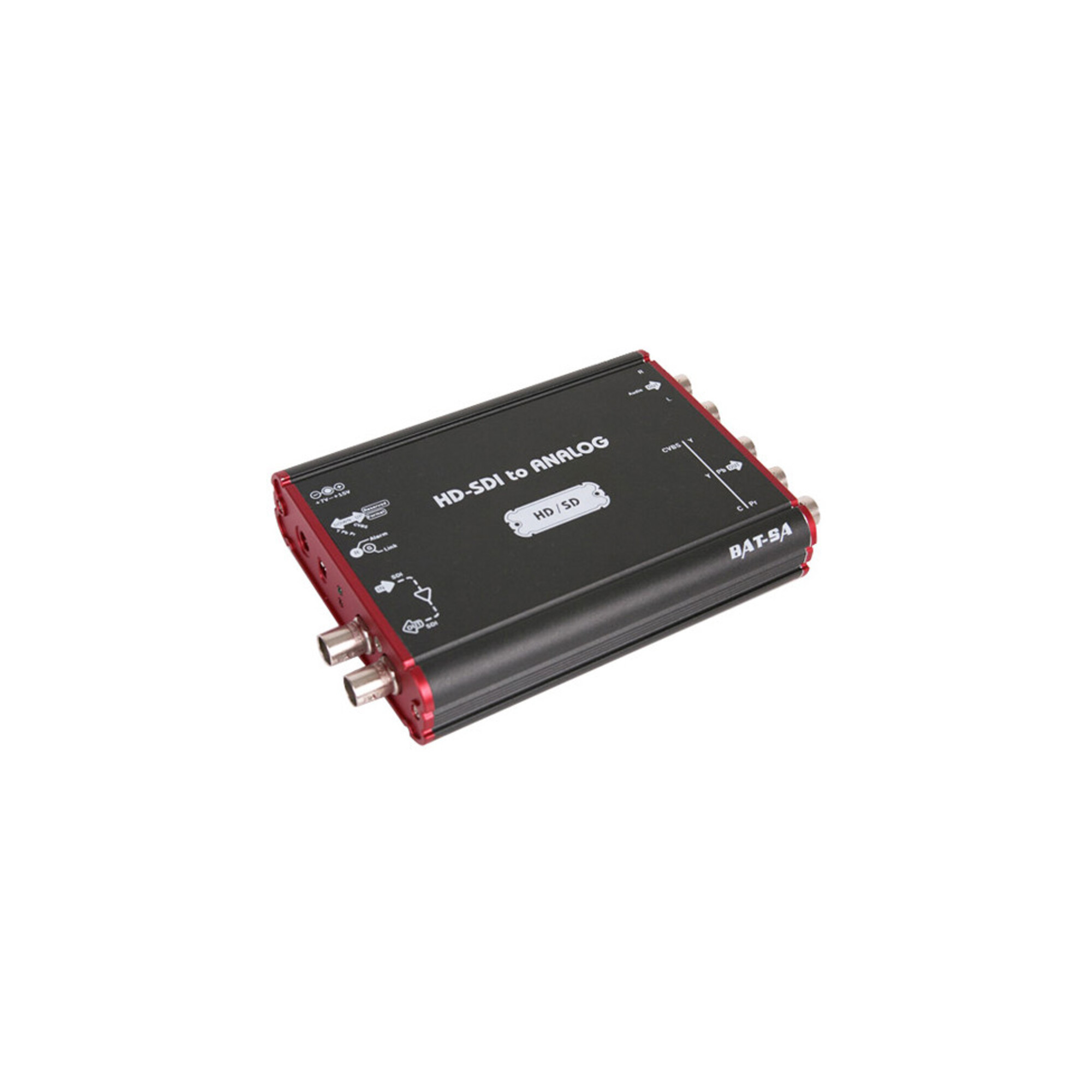

HD-SDI to Analog Mini Converter

go to the technical sheet

₦ 484,609.00

₦ 450,799.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

The HD-SDI to Analog Mini Converter from Lumantek converts HD/SD SDI signals to analog video outputs with input resolutions from 480i to 1080p30. This converter lets you select between component (YPbPr) or composite (CVBS) and features a 48 kHz audio sampling and a low power consumption.

Cables & Connectors

Teradek

Bolt D-TapLemo Cable

₦ 218,493.00 VAT included

Available 1 unit in 4 Days

Lumantek BAT-SA Specs
Inputs 1 x BNC, HD-SDI video
Outputs 3 x BNC, analog component/composite video
1 x BNC, HD-SDI loop-thru video
Audio 2 x RCA, unbalanced output
Control DIP switch, configuration
Video Formats 1920 x 1080p at 23.94/24/25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720p at 50/59.94/60 fps
720 x 576i at 50 fps
720 x 480i at 59.94/60 fps
Audio Sample Rate 48 kHz
DC Power Input 7-18 VDC
Power Consumption < 3 W
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 8.2 x 6.0 x 3.5"
