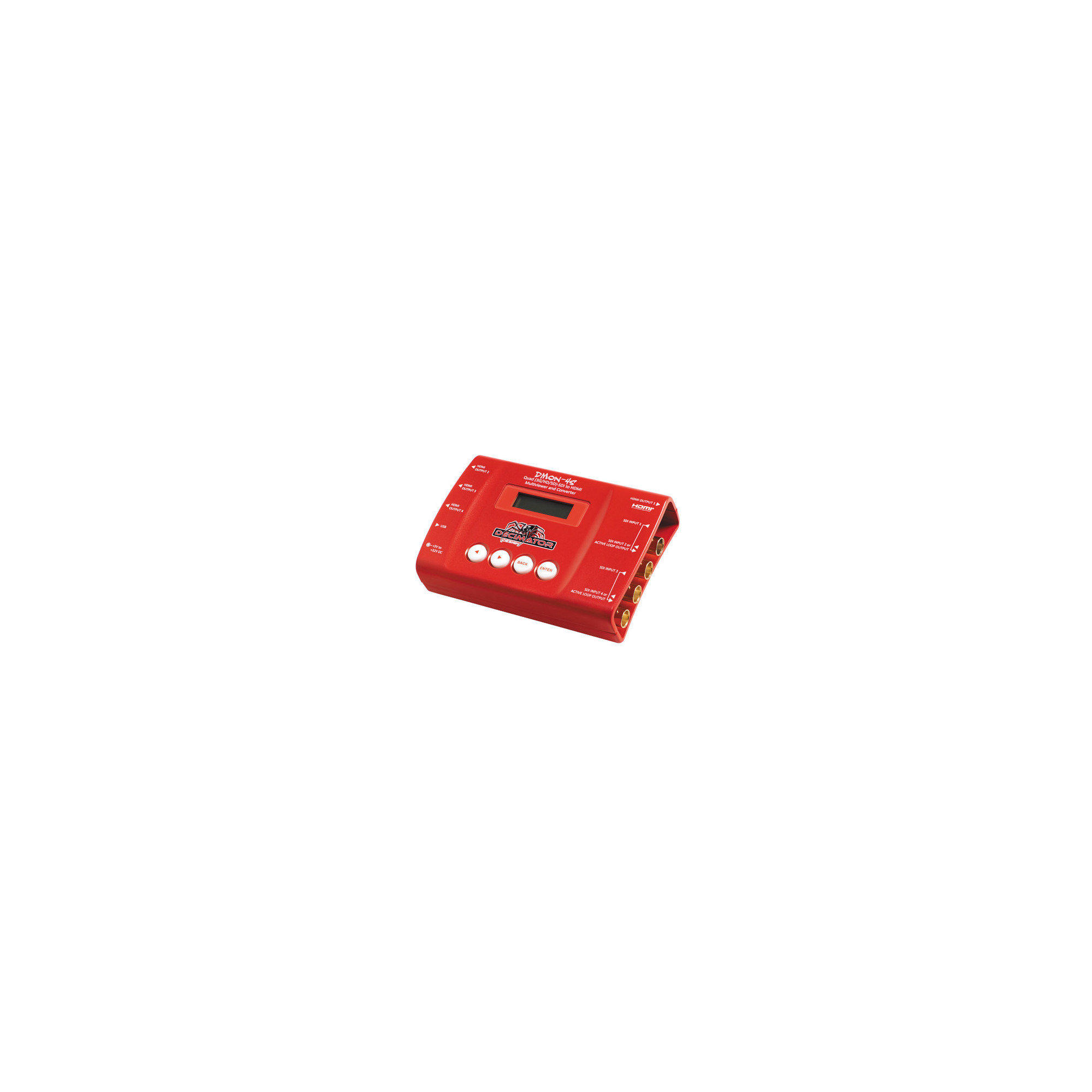

DMON-4S

4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer and Custom Layouts
• (NEW) Support for both 3G level A and B on the inputs.

• (NEW) Horizontal and/or Vertical image flipping per window

• Includes 4 independent mini HDMI outputs that can each output any
of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them.
For example you could use the unit to have:
- 4 independent SDI to HDMI converters
- 3 independent SDI to HDMI converters with a quad-split output
- 2 independent SDI to 2 x HDMI converters with loop through
- A single SDI or Multi-View to 4 x HDMI outputs

• Inputs 2 and 4 can be individually changed to output active loop
copies of inputs 1 and 2 respectively.

• (NEW) Multi-View mode offers:
- Custom Layouts with various standard layouts
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selection of audio from any input
- 16 Character UMD overlay per window with individual enables,
custom positioning and size
- Low latency buffering for each input allowing non-synchronous
inputs
- Each window is independent of the others, allowing any
3G/HD/SD format of any frame rate to be displayed
simultaneously
- Variable aspect ratios per window

• The DMON-4S is a truly portable converter, that incorporates our new
easy to use LCD and button control system.

• This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
