2110 IP Converter 4x12G PWR
Blackmagic
9338716009019
SMPTE-2110 4x12G IP video converter,supports HD and ultra HD standards (2160p60)
go to the technical sheet
₦ 4,322,574.00
₦ 4,020,999.00 VAT excl.

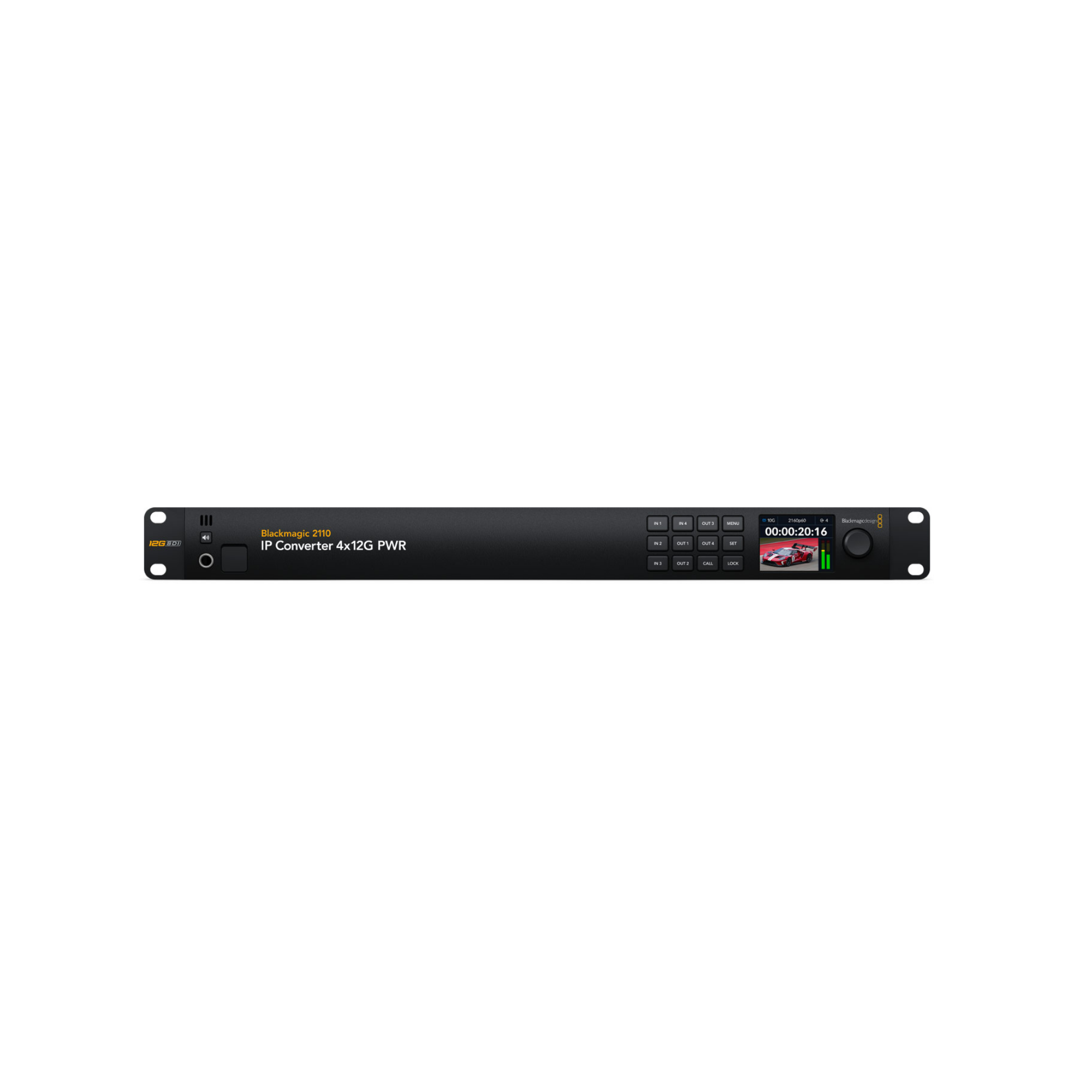

Blackmagic SMPTE-2110 4x12G IP Video Converter supports HD and Ultra HD standards up to 2160p60
This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment.
It features a 1RU design with 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections.
This means it can also supply high power to each 10G Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera 6K Pros, all at the same time.
Each channel has a 12G-SDI input, but there's even a 12G-SDI program return input that sends to all channels.
The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems.
The rack mount models can be installed in equipment racks right next to the equipment you're converting.
However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters!
Plus most Blackmagic SMPTE-2110 IP video products can be remote powered!
But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110.
Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.
° Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.
° Uses Simple 10G Ethernet for Low Cost
Blackmagic 2110 IP Converters are available in models with RJ-45 connectors for simple Cat6 copper cables or SFP sockets for optical fiber modules and cables.
Using simple Cat6 copper cables means you can build SMPTE-2110 systems at a dramatically lower cost.
The cables are simple and Ethernet switches for 10G Ethernet are very common.
In most cases, modern buildings already have 10G Ethernet cable installed, so you can use the cables you already have! Plus copper cables can remote power devices such as converters and cameras.
There are also models for optical fiber Ethernet.
Optical fiber at 10G speed is much lower cost than 25G or 40G Ethernet. You can even use 3G, 6G or 12G-SDI modules!
This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment.
It features a 1RU design with 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections.
This means it can also supply high power to each 10G Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera 6K Pros, all at the same time.
Each channel has a 12G-SDI input, but there's even a 12G-SDI program return input that sends to all channels.
The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems.
The rack mount models can be installed in equipment racks right next to the equipment you're converting.
However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters!
Plus most Blackmagic SMPTE-2110 IP video products can be remote powered!
But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110.
Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.
° Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.
° Uses Simple 10G Ethernet for Low Cost
Blackmagic 2110 IP Converters are available in models with RJ-45 connectors for simple Cat6 copper cables or SFP sockets for optical fiber modules and cables.
Using simple Cat6 copper cables means you can build SMPTE-2110 systems at a dramatically lower cost.
The cables are simple and Ethernet switches for 10G Ethernet are very common.
In most cases, modern buildings already have 10G Ethernet cable installed, so you can use the cables you already have! Plus copper cables can remote power devices such as converters and cameras.
There are also models for optical fiber Ethernet.
Optical fiber at 10G speed is much lower cost than 25G or 40G Ethernet. You can even use 3G, 6G or 12G-SDI modules!
Connections
Total SDI Inputs: 5
SDI Video Inputs: 4
SDI Main Program Inputs: 1
Total SDI Outputs: 5
SDI Video Outputs: 4
SDI Main Program Outputs: 1 Loop Out.
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
SMPTE ST-2110 IP Video Inputs: 4 x 10G Ethernet
SMPTE ST-2110 IP Video Outputs: 4 x 10G Ethernet
Analog Audio Outputs: 1 x 6.35 mm headphone socket.
SDI Audio Inputs: 16 Ch embedded audio on SDI input.
SDI Audio Outputs: 16 Ch embedded audio on SDI loop output.
SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
Multi Rate Support: Auto detection of SD, HD, Ultra HD and 4K.
Reclocking: Yes
Ethernet: 4 x 10Gb/s RJ-45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters.
1 x 1Gb/s RJ-45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates.
Computer Interface: 1 x USB-C 3.0 for configuration and firmware updates.
SDI Video Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Color Precision: 4:2:2
SDI Color Space: YUV
SDI Auto Switching: Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video): IGMP v2
SMPTE 2110-21 (Traffic Shaping):
- Sender: Narrow
- Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM): Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Precision Time Protocol:
- IEEE 1588-2008 (PTP v2)
- ST 2059-1
- ST 2059-2
NMOS IS-04 Discovery and Registration:
- v1.3.2
- Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP-002-01: Natural Grouping
NMOS BCP-004-01: Receiver capabilities
Audio
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Control
Built in Control Panel: 12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.
Operating Systems
Mac 13.0 Ventura
Mac 14.0 Sonoma or later
Windows 10 and 11
Power Requirements
Power Supply: 2 x Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Usage: TBA
Environmental Specifications
Operating Temperature: 5° to 40° C (41° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
Blackmagic 2110 IP Converter 4x12G PWR
Welcome wallet with QR code for software download
