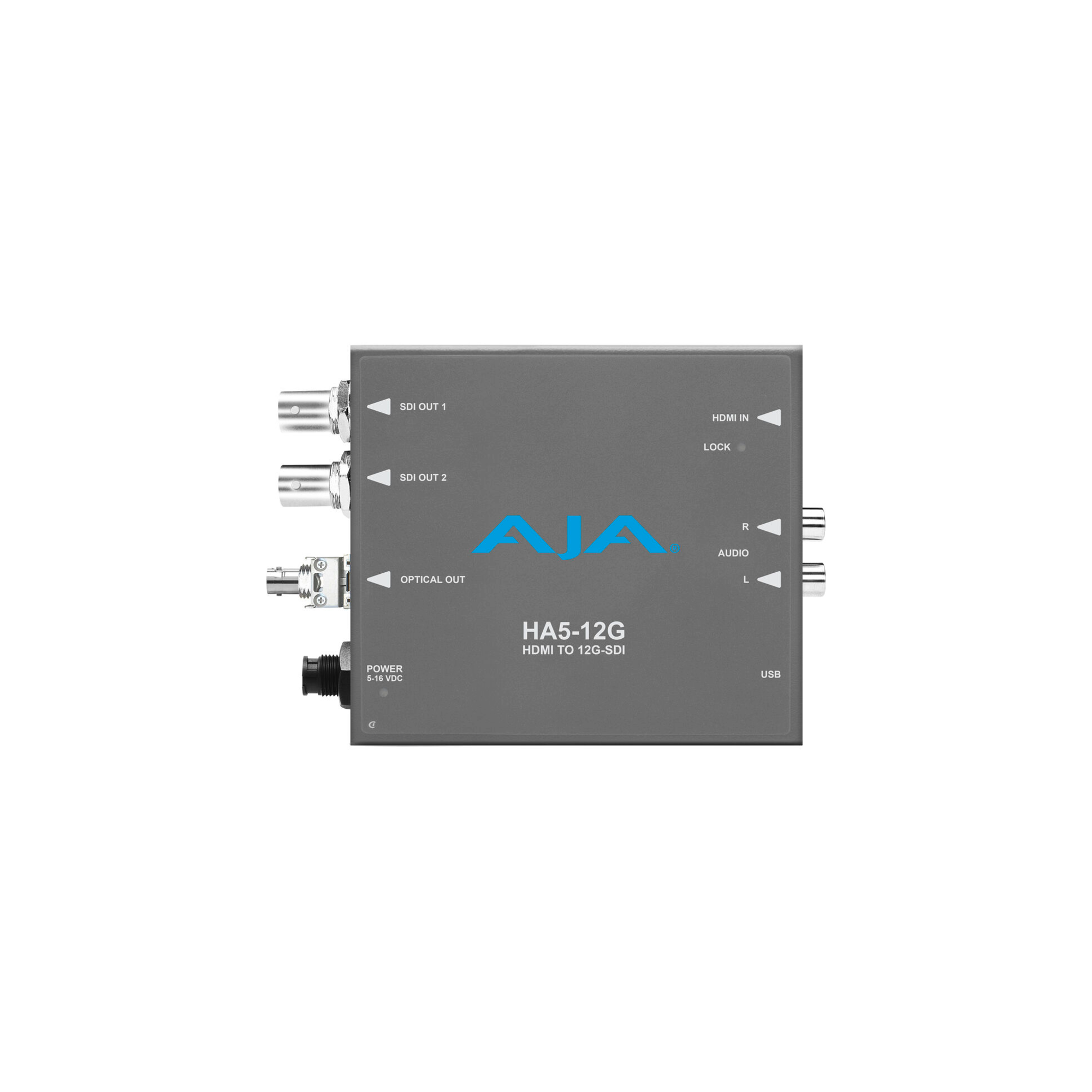

HA5-12G-T-ST

AJA Convert HDMI 2.0b up to 4K 60p to 12G-SDI 12G ST transmitter

° HDR
HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow.
This gives your imagery a more ‘dynamic' look and allows for natural true to life colors to be communicated to your audience.

HA5-12G provides support for analyzing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.

° 4K and UltraHD
Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160.
This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows.
HA5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

HA5-12G also supports High Frame Rate (HFR) inputs.
4K/UltraHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

° Full HDMI Support
The equalized input on HA5-12G is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable.
Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.

° 12G-SDI Support
The 12G-SDI outputs on HA5-12G allows extremely high quality signal representation for use with large raster and deep color workflows where image quality is critical.

° Pristine Image Quality
A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability.
An LED indicator shows the input source as either SD (green), HD (red) or 4K/UltraHD (orange) for fast and easy signal identification.

° Analog audio input
Using the two RCA analog audio inputs, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.

° DSLR support
HA5-12G accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.

° USB and Mini-Config Support
AJA's free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats.
Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

° Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

° Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig.
A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

° AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS.
The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app.
The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
