HA5-12G-T-R0

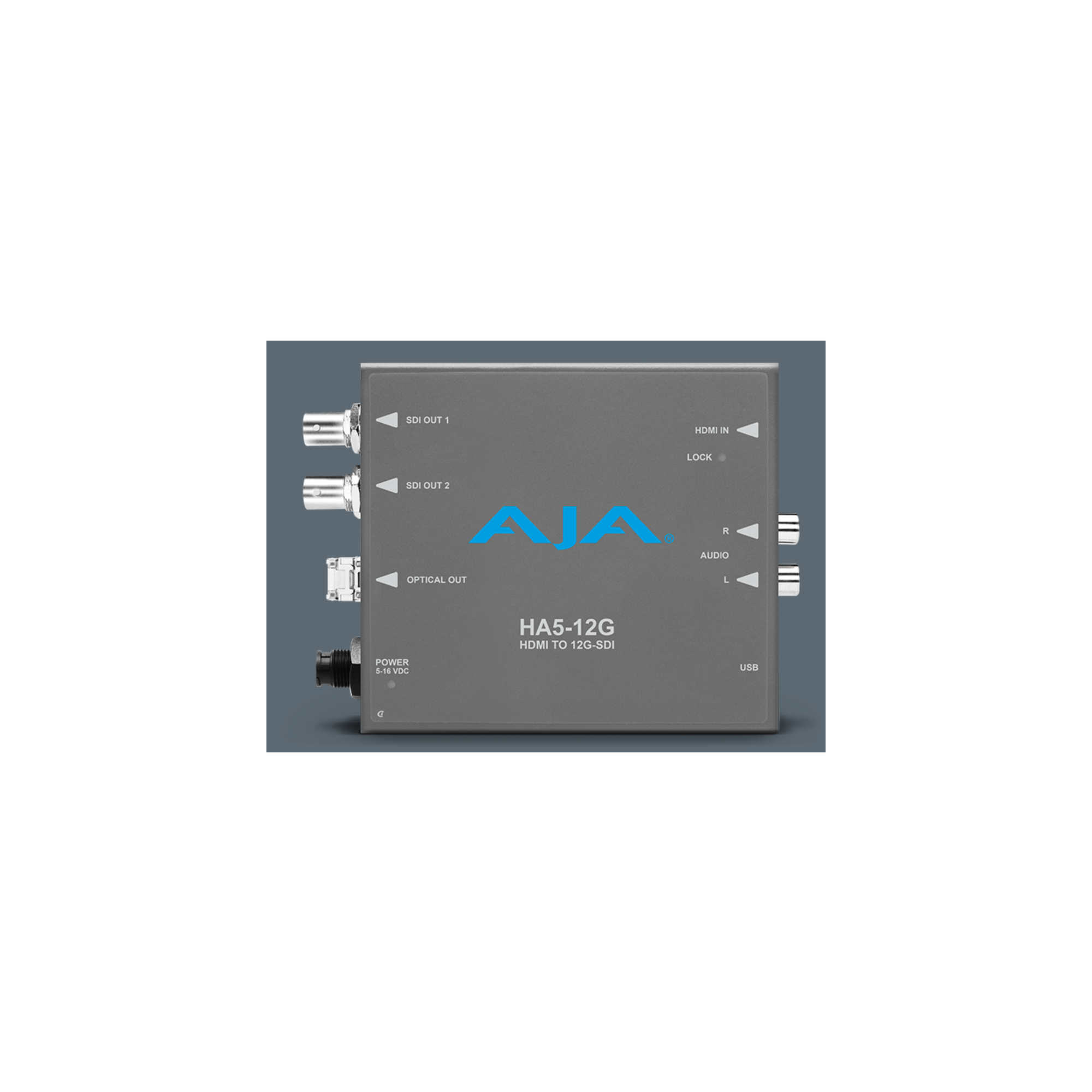

AJA HDMI 2.0 to 12G-SDI Conversion with Fiber Transmitter - HA5-12G-T-R0

AJA's HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs.
HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source or two-channel analog audio (RCA) input.

HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.

HA5-12G-T and HA5-12G-T-ST Fiber SFP-equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link respectively.
These models ship with SFPs installed, and include all functionality of the HA5-12G, with the added benefit of extending audio and video signals further.

Convert HDMI 2.0b to 4K 60p to 12G-SDI with a second mirrored output
Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
HA5-12G-T ships with FiberLC-1T-12G SFP installed
Support for up to 60p input at 4:4:4/4:2:2/4:2:0
Supports 12-bit workflows
EDID LFR & HFR Emulation up to UHDp60
Two Sample Interleave (2SI) 4K/UltraHD source mapping
Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
Embedded audio can be selected from the HDMI or Analog audio inputs
Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
Configure via USB port and supplied AJA Mini-Config software
Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
