AJA

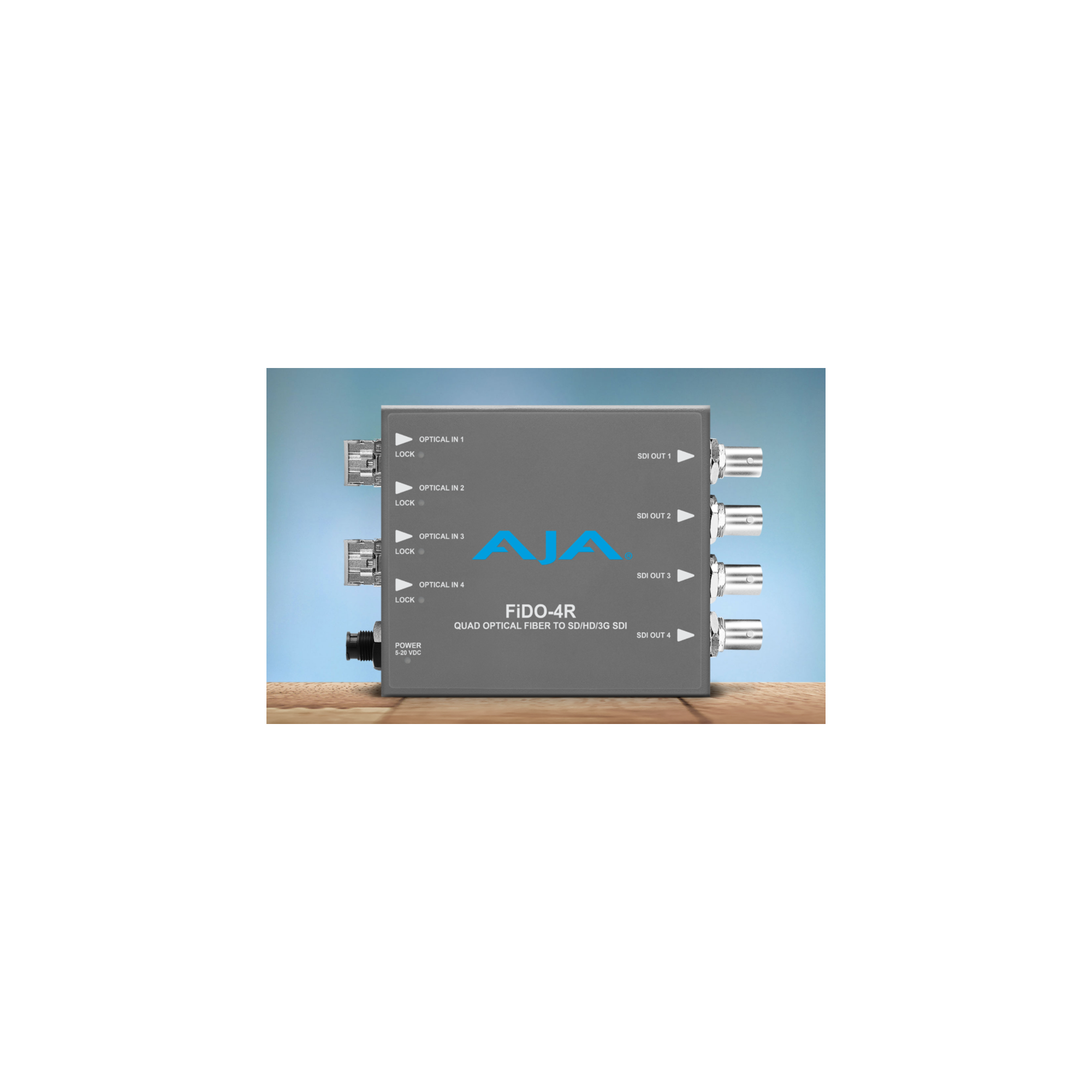

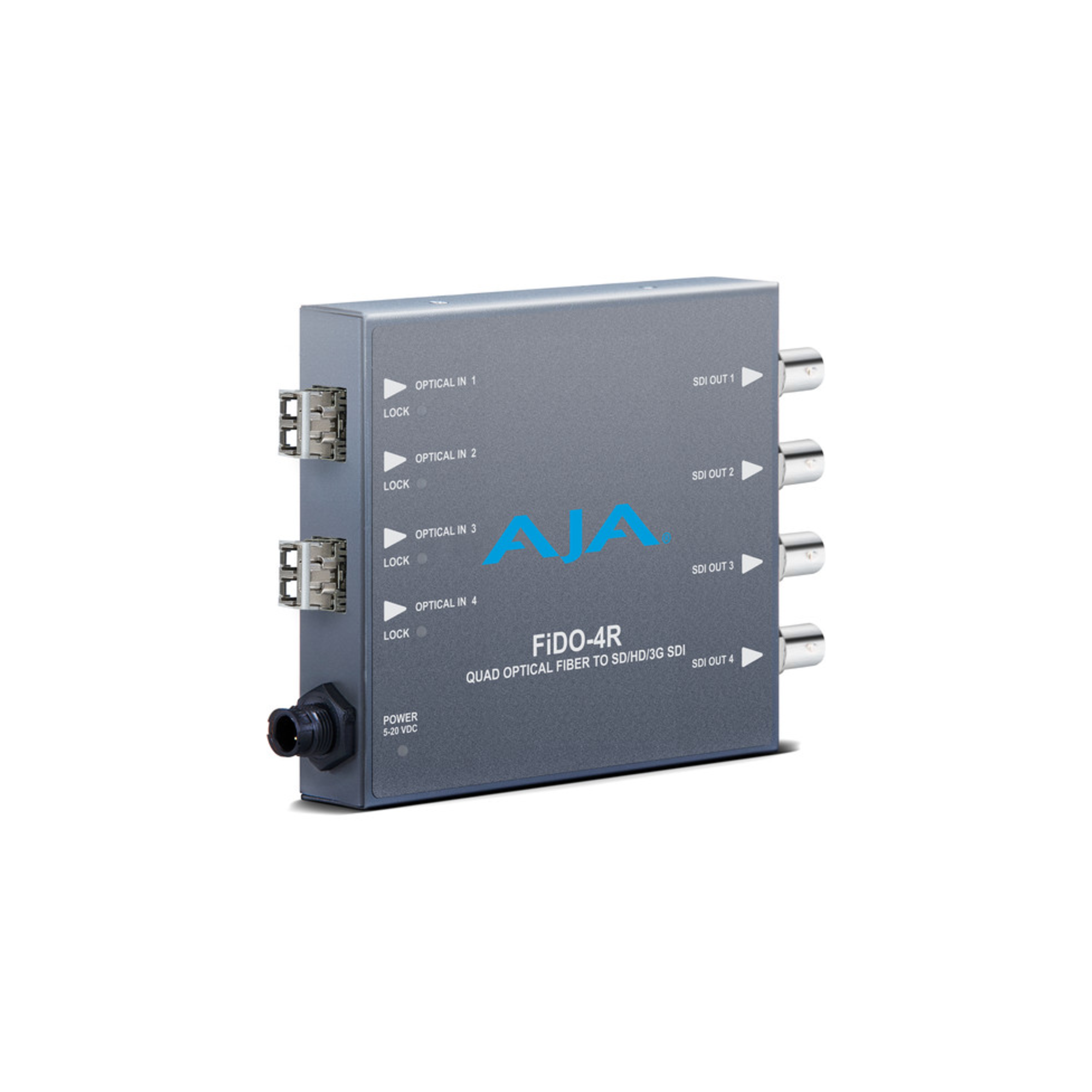

4-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
go to the technical sheet
€ 2.508,08

€ 2.333,10 VAT excl.

Available in 14 days
Not sure if this is the right product for you? Talk to a consultant
AJA 4-Channel Multi-Mode LC Fiber to 3G-SDI Receiver

4-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
4 simplex or 2 duplex input connections (LC connector)
4 independent channels of 3G/HD/SD-SDI output
4K/UltraHD-SDI over 4 fiber links
Uses 5-20VDC power (DWP-U-R1 universal power supply included)

° Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

° Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig.
A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

° AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS.
The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app.
The free AJA Mini-Matrix app for iPad and iPhone is available now in the Apple iTunes Store.

Video formats: 150Mbps - 3Gbps, format agnostic
Digital Video Input:
° 4-channel independent multimode LC fiber inputs, SMPTE-297
° Nominal wavelength: 850 nm
° Optical sensitivity: -15 dBm (min)
° Overload power: 0dBm
Digital Video Output
4-channel independent 3G-SDI BNC outputs, SMPTE-259/292/424

Relocation:
° 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
° All other speeds pass through and are not reclocked.

Power:
° 5 watts max
° Uses 5-20VDC power supply (AJA model DWP-U-R1 power supply included)

Environment:
° Safe operating temperature: 0 to 40 C (32 to 104 F)
° Safe Storage Temperature (Off): -40 to 60 C (-40 to 140 F)
° Operating relative humidity: 10-90% non-condensing
° Operating altitude: <3,000 meters (<10,000 feet)

General:
Dimensions: 4.6" x 4.02" x 0.85" (117 x 102.11 x 21.6 mm)
Weight: 0.8 lb (0.4 kg)
