Flow 2
12G-SDI/HDM 4K60 UpDownCross Converter/Optical Transceiver
go to the technical sheet
€ 1.017,38
€ 946,40 VAT excl.

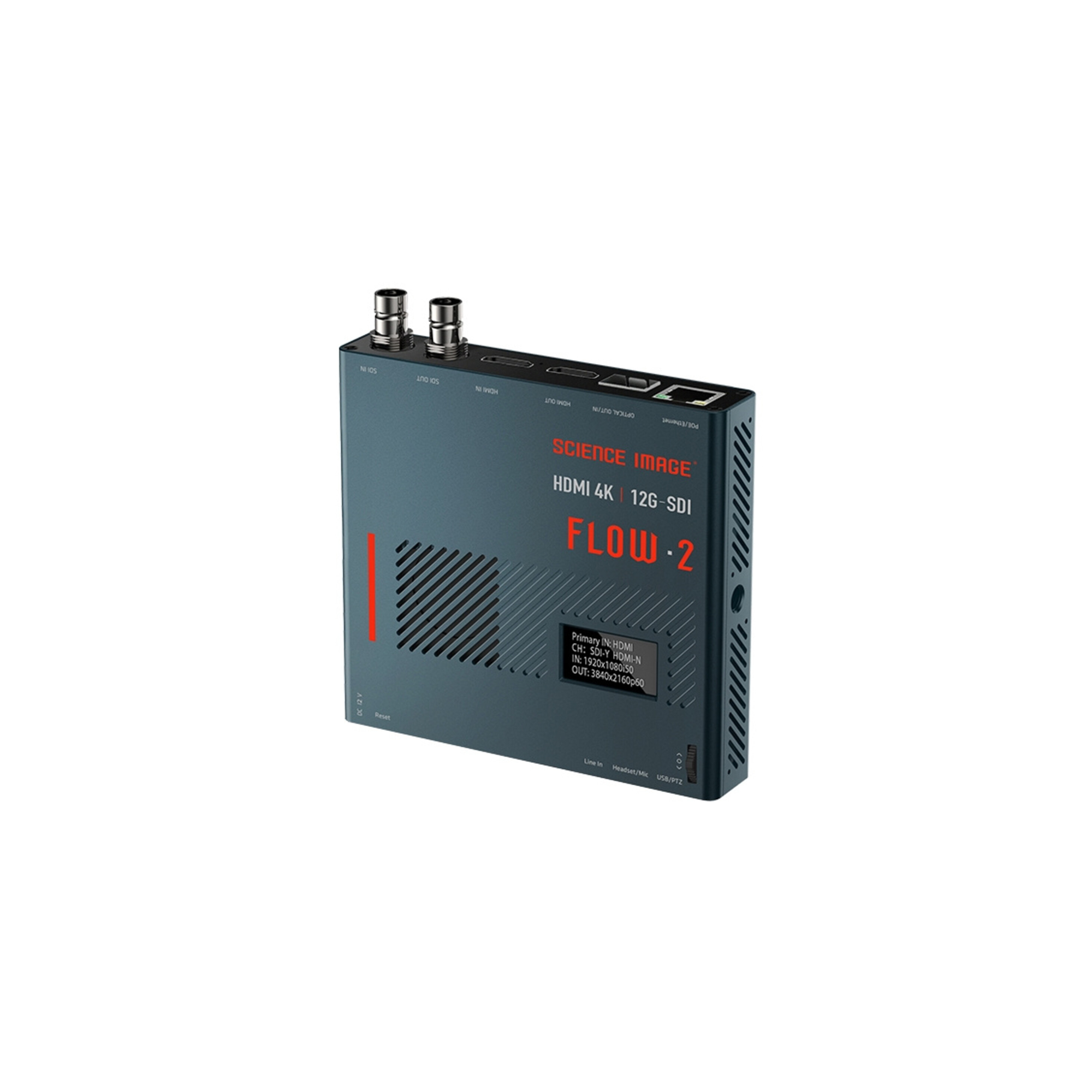

Science Image 12G-SDI/HDM 4K60 UpDownCross Converter/Optical Transceiver
FLOW 2 is a powerful product, it combines frequency conversion and optical transceiver in one tiny device.
It is the upgraded version of FLOW 4K with an intelligent scroll wheel.
Widely used in various business scenarios such as broadcast program, variety show recording, large events, and video conferences, providing users with excellent AV experiences.
° Support at least 35 types SMPTE formats multiple functions ,efficient inter-convert
Flow2 provides up and down conversion in 35 formats (from HD to UHD), the maximum 3840x2160p60.
Supports up to 12G-SDI/HDMI 4K60 inter-conversion and output.
The user can choose the output format with just a click.
° Optical transceiver, Ultra long distance transmission
Provide a 12G SDI optical transceiver interface, simultaneously transmit and receive 3G/6G/12G SDI and HDMI 4K videos, support maximum 20km transmission.
The web UI is equipped with an optical transceiver switch, allowing users to freely choose HDMI optical transceiver or SDI optical transceiver in the web UI.
- SDI/HDMI input priority setting
- Optical transceiver function transmitting and receiving settings
- Free selection of output resolution format
Flexible deployment on the front end or display/control terminal according to different scenes on site.
While the optical transceiver works, it is also a SDI/HDMI bidirectional converter.
One machine for multiple purposes, reducing system cost, fast response, flexibility and convenience.
° Broadcast level,Reliable and stable
Support 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats , compatible with multiple sampling formats(444,422,420), accurate and fast signal recognition.
Adopt Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensure the program running stably,not influenced by the external complex environment.
° Compatibility and stability
Support SMPTE video source , compatible with the video from most equipment.
Open to most software and browsers ,truly plug and play.
FLow 2 meets industrial standard, which ensure it works durably and reliably.
FLOW 2 is a powerful product, it combines frequency conversion and optical transceiver in one tiny device.
It is the upgraded version of FLOW 4K with an intelligent scroll wheel.
Widely used in various business scenarios such as broadcast program, variety show recording, large events, and video conferences, providing users with excellent AV experiences.
° Support at least 35 types SMPTE formats multiple functions ,efficient inter-convert
Flow2 provides up and down conversion in 35 formats (from HD to UHD), the maximum 3840x2160p60.
Supports up to 12G-SDI/HDMI 4K60 inter-conversion and output.
The user can choose the output format with just a click.
° Optical transceiver, Ultra long distance transmission
Provide a 12G SDI optical transceiver interface, simultaneously transmit and receive 3G/6G/12G SDI and HDMI 4K videos, support maximum 20km transmission.
The web UI is equipped with an optical transceiver switch, allowing users to freely choose HDMI optical transceiver or SDI optical transceiver in the web UI.
- SDI/HDMI input priority setting
- Optical transceiver function transmitting and receiving settings
- Free selection of output resolution format
Flexible deployment on the front end or display/control terminal according to different scenes on site.
While the optical transceiver works, it is also a SDI/HDMI bidirectional converter.
One machine for multiple purposes, reducing system cost, fast response, flexibility and convenience.
° Broadcast level,Reliable and stable
Support 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats , compatible with multiple sampling formats(444,422,420), accurate and fast signal recognition.
Adopt Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensure the program running stably,not influenced by the external complex environment.
° Compatibility and stability
Support SMPTE video source , compatible with the video from most equipment.
Open to most software and browsers ,truly plug and play.
FLow 2 meets industrial standard, which ensure it works durably and reliably.
Interface
SDI video input: 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
SDI video output: 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
HDMI video input: 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
HDMI video output: 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
Optical fiber input and output: 1 x SMPTE optical fiber SFP socket, used to connect different types of Gigabit/10 Gigabit/12G-SDI optical fiber modules
RJ45 Gigabit Ethernet port: 1 x RJ45 Gigabit Ethernet interface
LINE IN audio input port: 1 x LINE IN 3.5mm audio input port for external analog audio embedding
MIC input and output port: 1 x Mic 3.5mm audio input and output port
SDI video format
1.5G/3G-SDI HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
6G/12G-SDI/Ultra HD /4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI specification: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
HDMI video format
HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI video sampling: 4:2:2 and 4:4:4
SDI audio sampling rate: TV standard 48kHz
SDI color accuracy: 4:2:2 and 4:4:4
SDI color space: REC 709 BT2020
HDMI color space: REC 709 BT2020
HDMI color accuracy: YUV 4:2:2 and RGB 4:4:4
Display
1.3 inch OLED screen: 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate.
Power supply
Two power supply modes: 5-18V DC power input and POE
Power consumption: MAX 12W
Environmental requirements
Operating temperature: 5°C to 40°C
Storage temperature: -20° to 60° C (-4° to 140° F)
Relative humidity: 0% to 90% non-condensing
Fisical Specifications
Material: all aviation aluminum milling
Size: 125mm x 115mm x 24mm
Weight: 365g
1x FLOW 2
1x Quick start manual
1x 12V universal power supply (includes four sets of international conversion plugs)
