ez-hs+

Name: ez-hs+
Brand: Lumantek
SKU: ez-hs+
Price: 349.64 EUR
Availability: OutOfStock

Lumantek

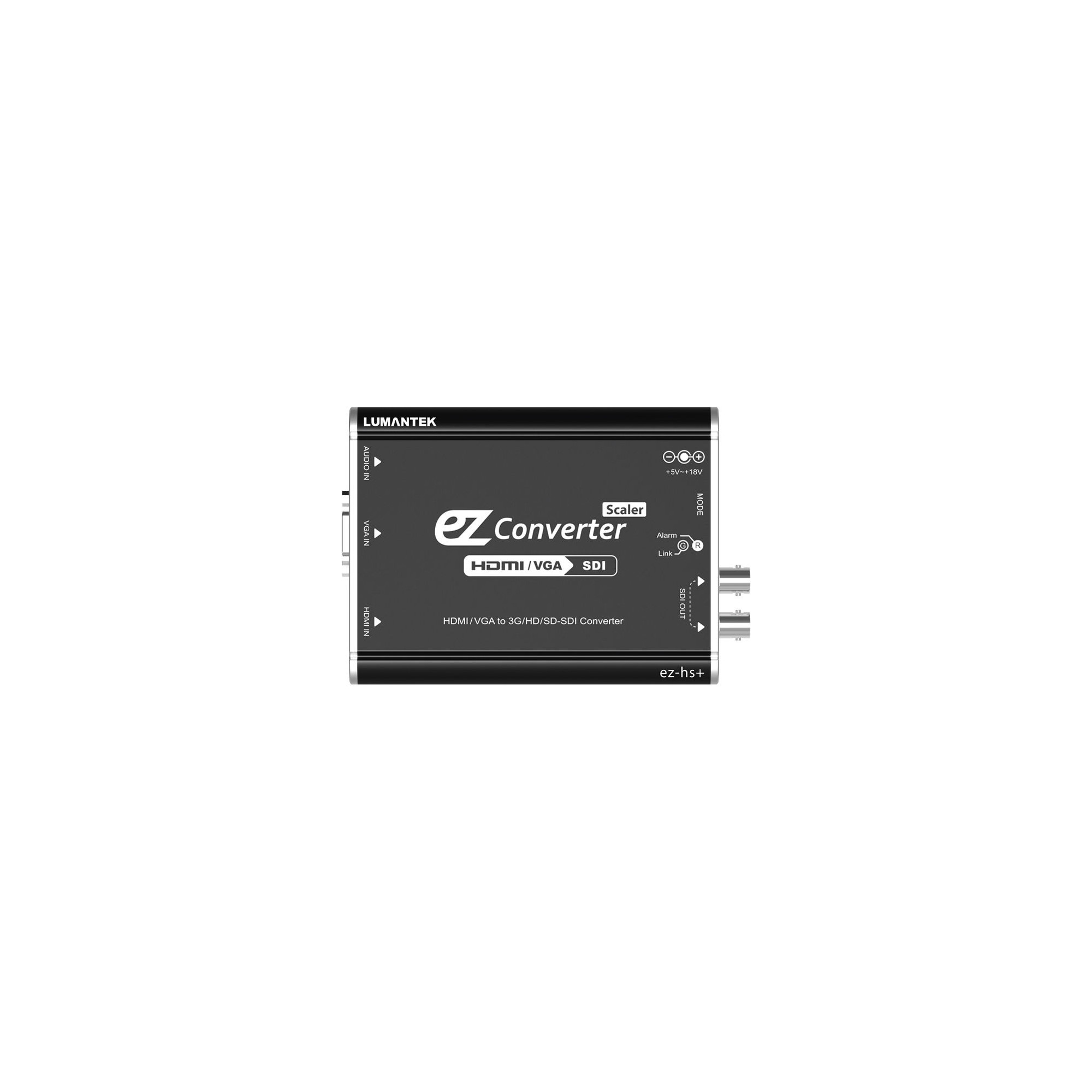

HDMI/VGA to SDI scaler/converter

go to the technical sheet

€ 349,64

€ 325,25 VAT excl.

Available in 14 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Scaler ez-Converters of LUMANTEK are converters with far more options to facilitate video transference. By handling the 'dip switch', the user will be able to change the video resolution from 480i to 1080p60. There are two models of Scaler ez-Converters.
Scaler ez-Converters can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. Use the 'dip switch' on the side of the converter and match to the right resolution.
You can change the output ratio as well. Choose from either 16:9 or 4:3 screen ratio to fit your requirement.
The maximum power consumption of Scaler ez-Converters is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.
Input:
1 x HDMI
1 x VGA
1 x 3.5mm Stereo Jack

Output:
2 x SDI

Cables & Connectors

Teradek

Bolt D-TapLemo Cable

€ 128,83 VAT included

Available in 14 days

Download

Datasheet

Download (846.35KB)

Video Input Format VGA
640x480
800x600
1024x768
1280x1024
1600x1200
1920x1080
HDMI
[email protected]/60, 720x576i@50
1280x720p@50, [email protected]/60
1920x1080i@50, [email protected]/60
[email protected]/24, 1920x1080p@25, [email protected]/30
1920x1080p@50, [email protected]/60
Video Output Format [email protected]/60, 720x576i@50
1280x720p@50, [email protected]/60
1920x1080i@50, [email protected]/60
[email protected]/24, 1920x1080p@25, [email protected]/30
1920x1080p@50, [email protected]/60
Video Aspect Ratio Full / Center cut / Letter Box / 14:9 Center cut
Audio Input Connector 3.5mm stereo Jack x 1
Video Input Connector HDMI (Type A)x1
VGA x 1
Video Output Connector BNC x 1
DC Input Power 5V ~ 18V
Power Consumption < 3W
Dimensions 131 x 98.8 x 28.4mm
