12G-AMA-R-ST

AJA 12G-SDI Input and Output up to 4K/UltraHD with ST Fiber Receiver - 12G-AMA-R-ST

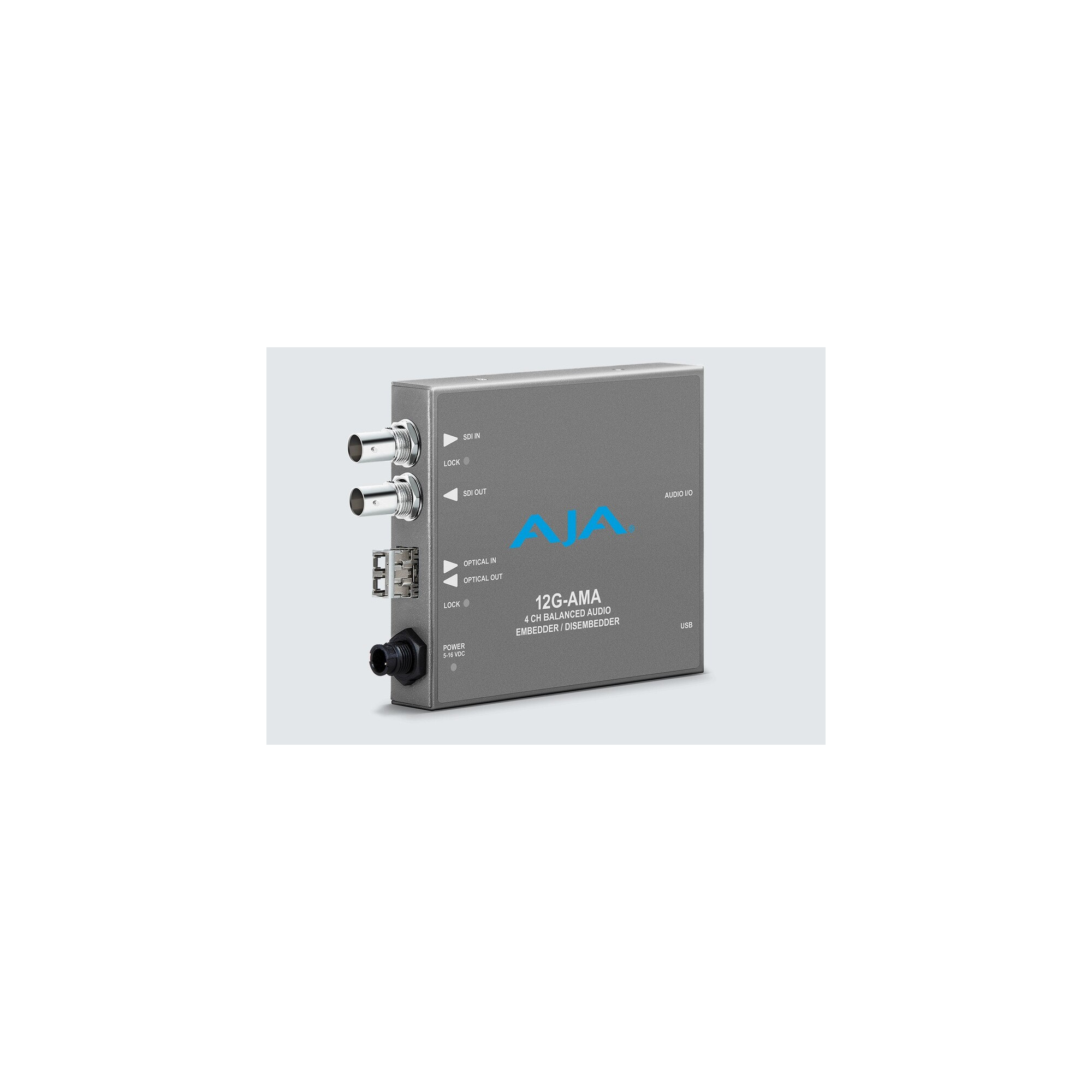

The 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD.
Fiber models offer single link fiber I/O including LC and ST options.

Audio disembedding is always functional, providing four analog outputs.
Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.

Analog audio levels are selectable.
The 12G-AMA automatically detects and configures the input video standard.

12G-SDI Input and Output up to 4K/UltraHD
4-channel balanced audio Embedder/Disembedder
Ships with a Fiber ST single channel SFP Receiver for extending 4K/UltraHD signals over long distances
Audio Disembedding is always functional with four Analog outputs
Audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio
Selectable Analog audio levels
Automatically detects and configures the input video standard
Small form factor allows for a wide variety of installation locations
Supplied XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors
Configure via USB port and supplied AJA Mini-Config software
DIP Switch configuration
+5-16 VDC Power
