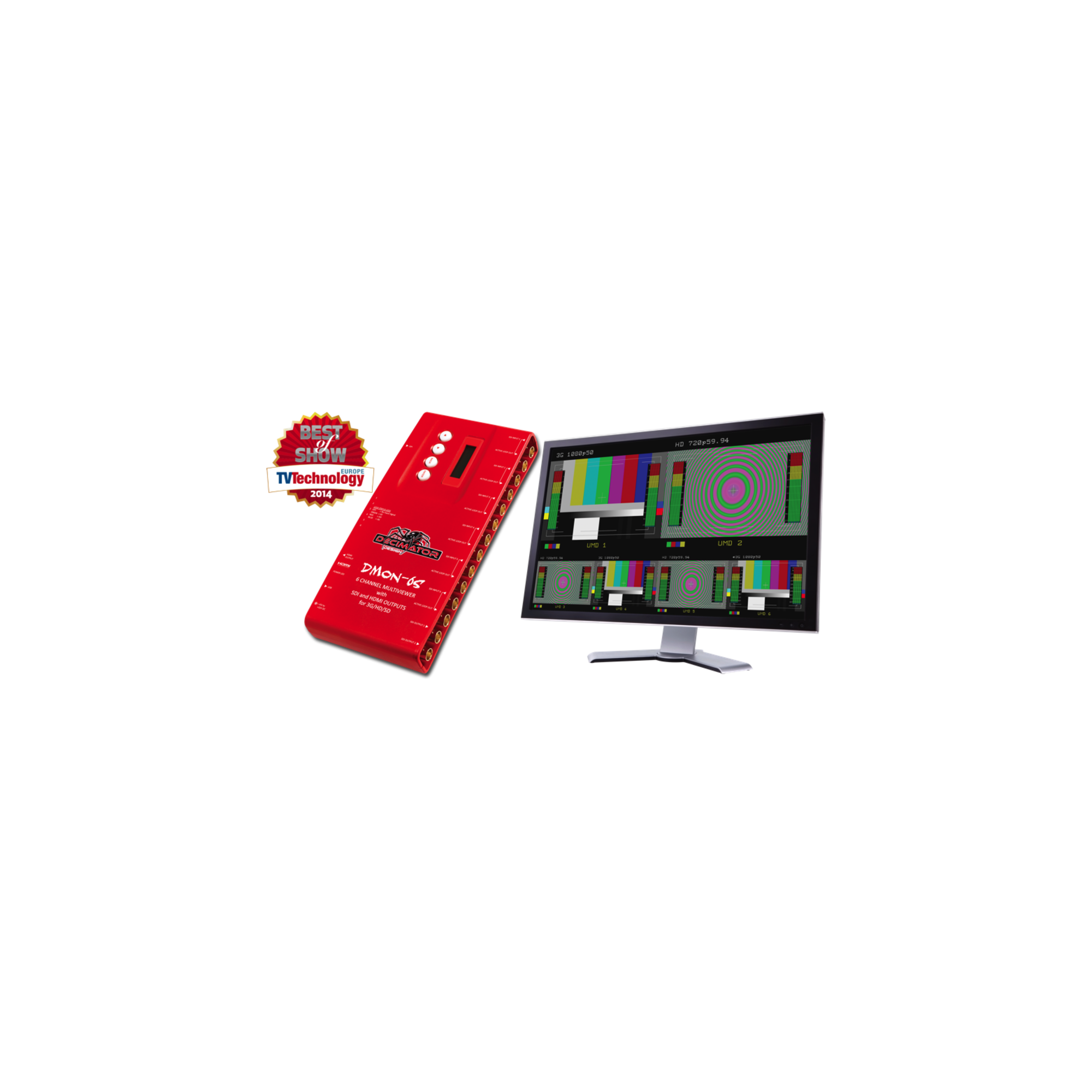

DMON-6S

Il DMON-6S is a a multiple conversion Box with 6 channel with multifinction function.
Support both 3G level A and B on input and output permitting conversion between the two level.
Function multi-viewer 1 on 6 and 6 on 1 multiplexer.
6x copy active loop (3G/HD/SD) for each input
customizable layout with various standard
Monitoring of 16 audio channel
Audio ID overlay
Possibility to manage tallies
The tally boxes permitup to 4 tally for window(green,red, Blu and yellow)

° Load and restore Custom Layouts
° Fast switching between inputs using Full-Screen scaling
° Selectable output format in both Full-Screen and Multi-Viewer mode
° Low latency buffering for each input allowing non-synchronous inputs
° Linked (3G/HD/SD)-SDI and HDMI outputs
° 6 x (3G/HD/SD)-SDI inputs with auto detection (6 Formats supported in total)
° Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
° Variable aspect ratios per window
° Pass-Through mode allowing any of the 6 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
° The DMON-6S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
° This unit also includes:
- 32 GPI on 37-pin D-SUB connector for Tallies and Remote Switching
- RS422/485 on 37-pin D-SUB connector for Dynamic UMD and Tallies via TSL protocol
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
