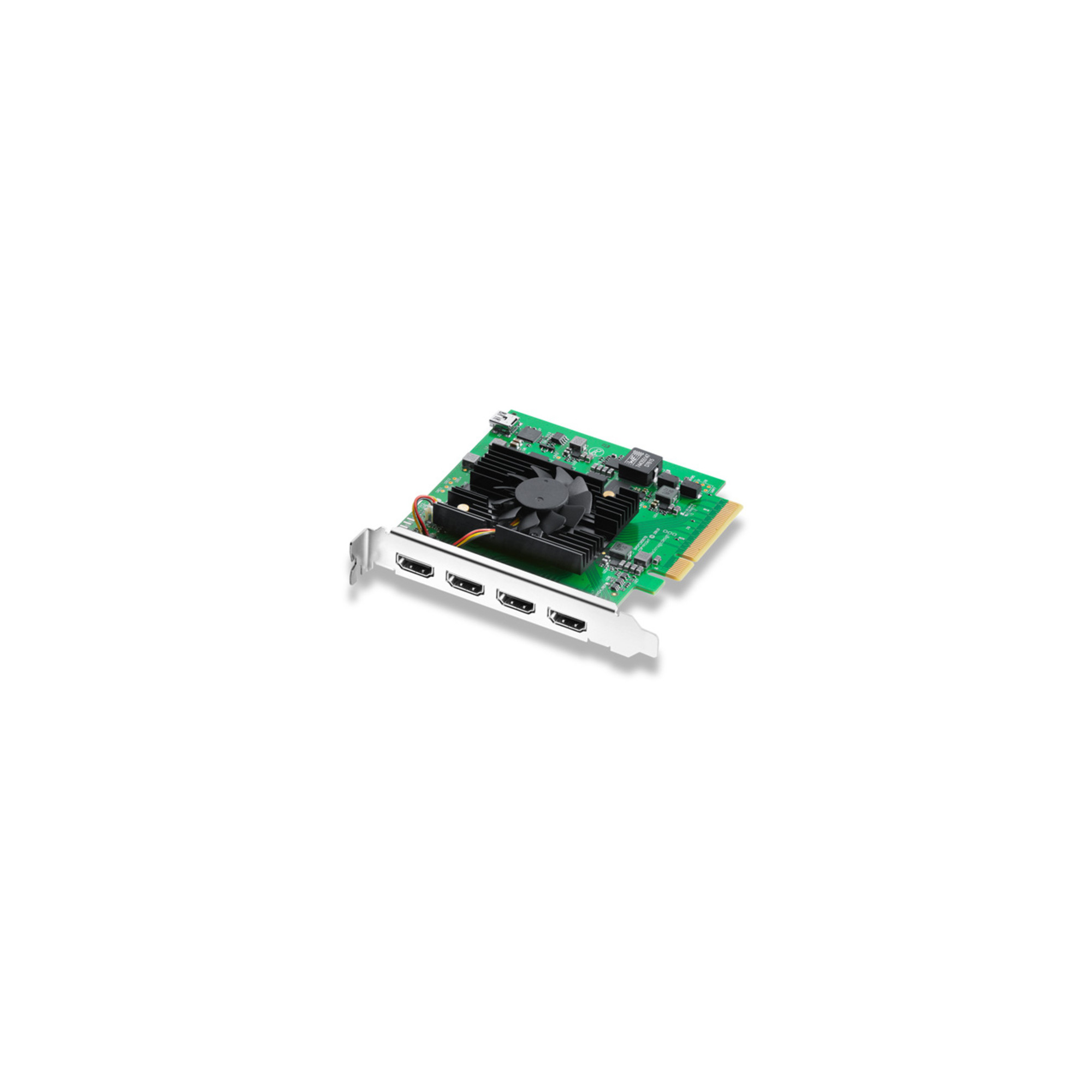

DeckLink Quad HDMI Recorder

Connections
HDMI 2.0b Video Inputs

4
HDMI Audio Inputs

8 Channels embedded in SD/HD/UHD/4K.
Computer Interface

PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
DeckLink Quad HDMI Recorder
Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software
Software Included

Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade

Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation

PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Software Applications
Wirecast

Wirecast
vMix

vMix
OBS

OBS

Other supported applications include: Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in.
Video Standards
SD Video Standards

525i59.94 NTSC, 625i50 PAL
HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Digital Video Interface (DVI) Standards

640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.
HDMI Color Precision

8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8-bit RGB 4:4:4 in all DVI modes.
Color Space

REC 601, REC 709, REC 2020
HDMI Video Sampling

4:4:4, 4:2:2 and 4:2:0
HDMI Configuration

HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
Multiple Rate Support

HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes.
Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Physical Specifications
DeckLink Quad HDMI Recorder
Operating Systems
Mac icon

Mac 10.13 High Sierra,
Mac 10.14 Mojave or later.
Windows Icon

Windows 7, 8.1 and 10, all 64-bit.
Linux icon

Linux
Power Requirements
Power Consumption

23 W
EMC Certifications

FCC, CE, RCM and KC
Environmental Specifications
Operating temperature

5° to 40° C (41° to 104° F)
Storage temperature

-20° to 45° C (-4° to 113° F)
Relative Humidity

0% to 90% non-condensing

What''s Included
DeckLink Quad HDMI Recorder
SD card with software and manual
3 Year Limited Manufacturer''s Warranty
