DeckLink Mini Monitor 4k

Name: DeckLink Mini Monitor 4k
Brand: Blackmagic
SKU: DeckLink Mini Monitor 4k
Price: 228.71 EUR
Availability: OutOfStock

Blackmagic

EAN: 9338716004359

SD/HD board with hardware downconversion

go to the technical sheet

€ 228,71

€ 212,75 VAT excl.

Available in 11 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

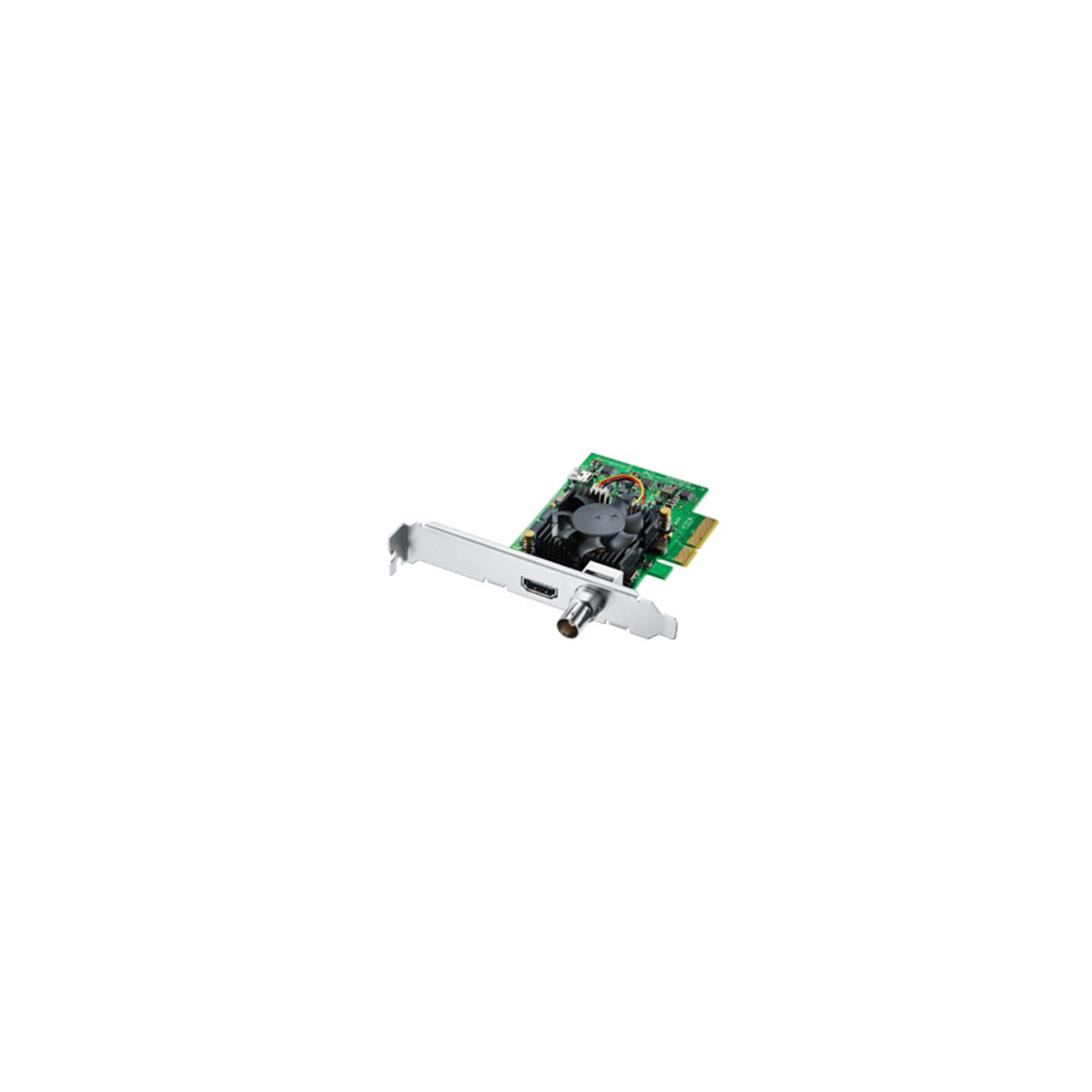

DeckLink Mini Monitor 4K is a low profile PCIe playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI, along with support for Rec. 2020 color space. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slot

Download

Manuale

Download (348.54KB)

Connections:

SDI Video Output: 1 x 10 bit SD/HD/Ultra HD switchable.
SDI Audio Output: 16 channels embedded in SD, HD, Ultra HD.
HDMI Video Output: 1 x HDMI 2.0a connector.
HDMI Audio Output: 8 Channels embedded in SD, HD, Ultra HD.
Computer Interface: Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.

Codecs:

Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software:

Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.
Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer

with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications:
DaVinci Resolve Icon DaVinci Resolve
Fusion Icon Fusion
Final Cut Pro Icon Final Cut Pro X
Premiere Pro Icon Premiere Pro CC
Avid Media Composer Icon Avid Media Composer
After Effects Icon After Effects CC
Avid Pro Tools Icon Avid Pro Tools
Steinberg Cubase Icon Steinberg Cubase
Steinberg Nuendo Icon Steinberg Nuendo
Photoshop Icon Photoshop CC

Other supported applications include: Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
