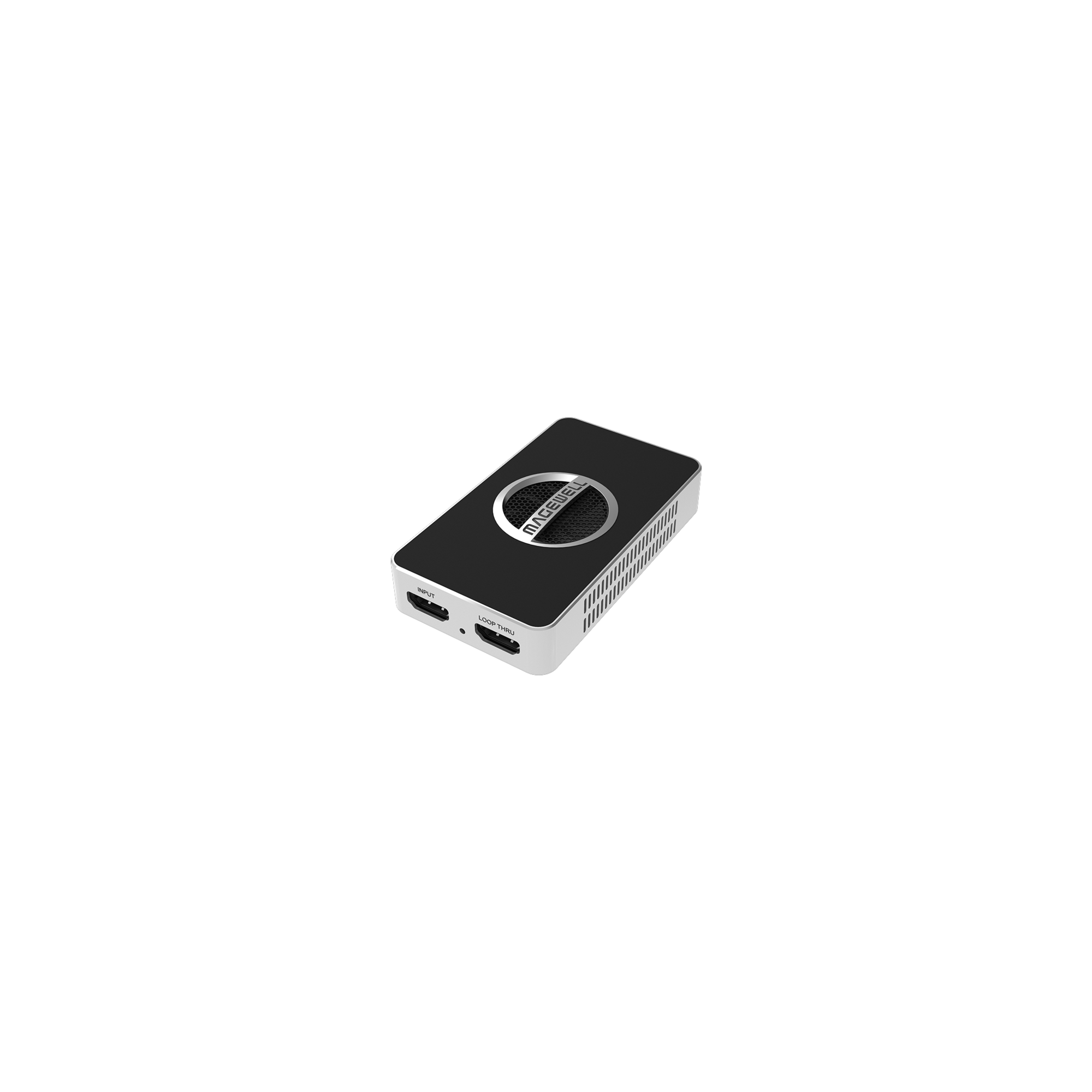

USB Capture HDMI 4K Pro

Input
____________________
600MHz HDMI receiver, max input & loop through video: 4096x2160 60fps 4:4:4
Custom EDID
Support for RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:0 8/10/12-bit, YUV 4:2:2 12-bit
Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
2-channel IEC60958 audio streams via 3.5mm microphone interface
HDMI interfaces: HDMI 2.0, DVI-D

Process and Capture
____________________
Video processing pipelines with ~700Mpixels/s processing bandwidth
Capture videos up to 4096x2160, frame rates up to 240fps. Outputs include (Actual capture format will vary based on the host system USB interface and operating system):
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/60
- 2560x1440p60
- 2560x1080p/1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, color format conversion, frame rate conversion, flip and mirror
Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack
Up to 2-channel IEC60958 audio streams

Included Software
____________________
USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs
____________________
The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
Windows DirectShow/Wave API/DirectSound/WASAPI
Linux V4L2/ALSA
macOS AVCaptureSession/AudioUnit

Output Interface
____________________
USB 3.2 Gen 2x2

Compatible Software
____________________
Zoom Rooms
Microsoft Teams
Skype for Business
Google Hangouts
GoToMeeting
Gstreamer
VLC
OBS Studio
XSplit
QuickTime Player
Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Recommended OS
____________________
Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
Linux x86, x64 & ARM architecture, with 2.6.35 and above
Mac OS X 10.9 and above
macOS 10.12 and above
Chrome OS

LED Indicator
____________________
Status LEDs indicate the working state of the device:
- Pulsing slowly: input signal unlocked
- On: input signal locked
- Double blinks: memory abnormal or FPGA configuration failed
- Off: firmware or power supply abnormal

Form Factor
____________________
3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)

Power Consumption
____________________
5V max current: ~1.474A
Max power consumption: ~7.369W

Working Environment
____________________
Operating temperature: 0 to 60 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

1× USB 3.2 Type C to Type C cable (80 cm) (up to 20Gbps, PN: ELE00053)
1× USB 3.2 Type C to Type A cable (80 cm) (up to 20Gbps, PN: ELE00053)
