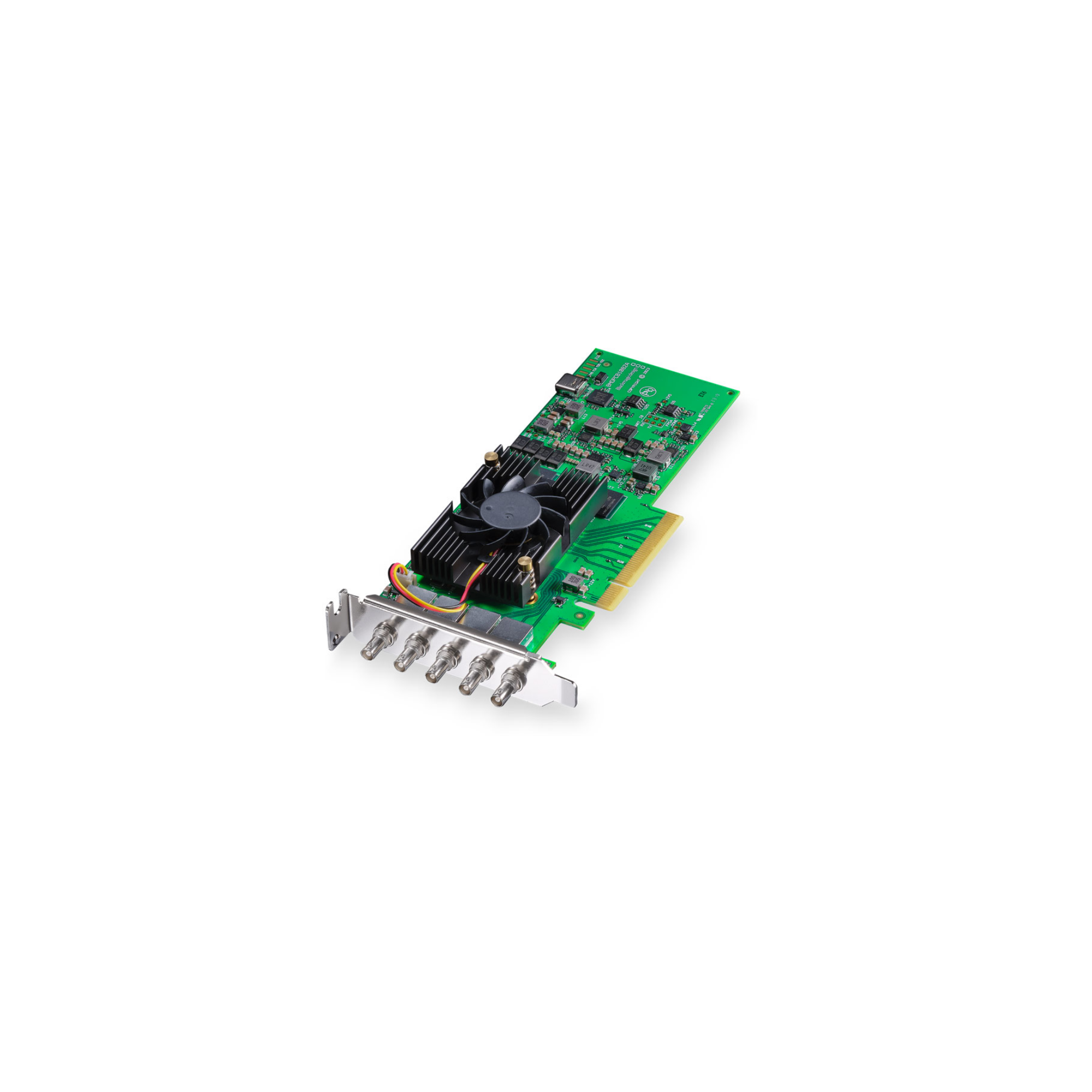

DeckLink 8K Pro Mini

Blackmagic High resolution 8K capture and playback card with multi channel support for all formats up to Ultra HD and 4K

DeckLink capture and playback cards are used every day on Hollywood feature films, episodic television programs, music videos, commercials and more!
Featuring the latest cutting edge technologies such as 12G-SDI and 8K support, DeckLink cards give you the highest quality video and work with more applications and platforms than any other card. Every DeckLink PCI Express card can be installed in Mac, Windows and Linux based workstations and servers, giving you ultimate flexibility!

DeckLink 8K Pro is an advanced Generation 3, 8 lane PCI Express capture and playback card designed for high resolution 8K workflows.
Featuring four 12G-SDI connections, DeckLink 8K Pro supports all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI formats. In addition to 8K, the four 12G-SDI connections can be configured for true multi channel capture and playback of 4 different video streams at any format or frame rate up to 4K DCI 60p using the free DeckLink SDK.
DeckLink 8K Pro works in 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 You also get full Rec. 2020 support for deep color and true digital cinema quality images!
The bi-directional 12G-SDI connections can be used for quad link 8K, single or dual link 4K, Ultra HD, HD and even SD.
You can even capture and playback simultaneously!

° Perfect for Post Production (SD, HD, Ultra HD, 4K and 8K)
Work with any video format and resolution that you need! DeckLink cards let you capture from cameras, decks and live feeds directly into editing, effects and design software applications such as DaVinci Resolve.
Depending on the model you choose, DeckLink cards support the complete range of formats used in today's high end film, television and commercial post production.
You get 12-bit RGB support and 4:4:4 image quality for deep color and high dynamic range work, high frame rate support of up to 60 frames per second, stereoscopic 3D and more!
There are DeckLink models to support either file or tape based workflows for perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even digital cinema projectors.

° Highest Quality Connections
DeckLink lets you work with compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed YUV and 12-bit RGB video.
When working with uncompressed, all images are a mathematically perfect pixel-for-pixel clone of the source, without any generational loss, so you have the confidence you're working at the absolute highest quality possible.
Get sharper keying with green screens, cleaner compositions, superior color correction and more!

° Advanced Technology
Get the latest 6G-SDI and 12G-SDI technology so you can capture and playback in full resolution Ultra HD, 4K or even 8K video, while remaining fully compatible with all SD and HD-SDI equipment!
That's up to 16 times the resolution of regular 1080 HD video at a massive 7680 x 4320 image size! DeckLink SDI 4K and the DeckLink Studio 4K include 6G-SDI, while the advanced DeckLink 8K Pro has quad link 12G-SDI and DeckLink 4K Extreme 12G includes dual link 12G-SDI connections for higher color resolution, dual stream 3D stereoscopic support and frame rates up to 60p!
The DeckLink 8K Pro and DeckLink 4K Extreme 12G are the perfect choice for DaVinci Resolve editing and color correction!
