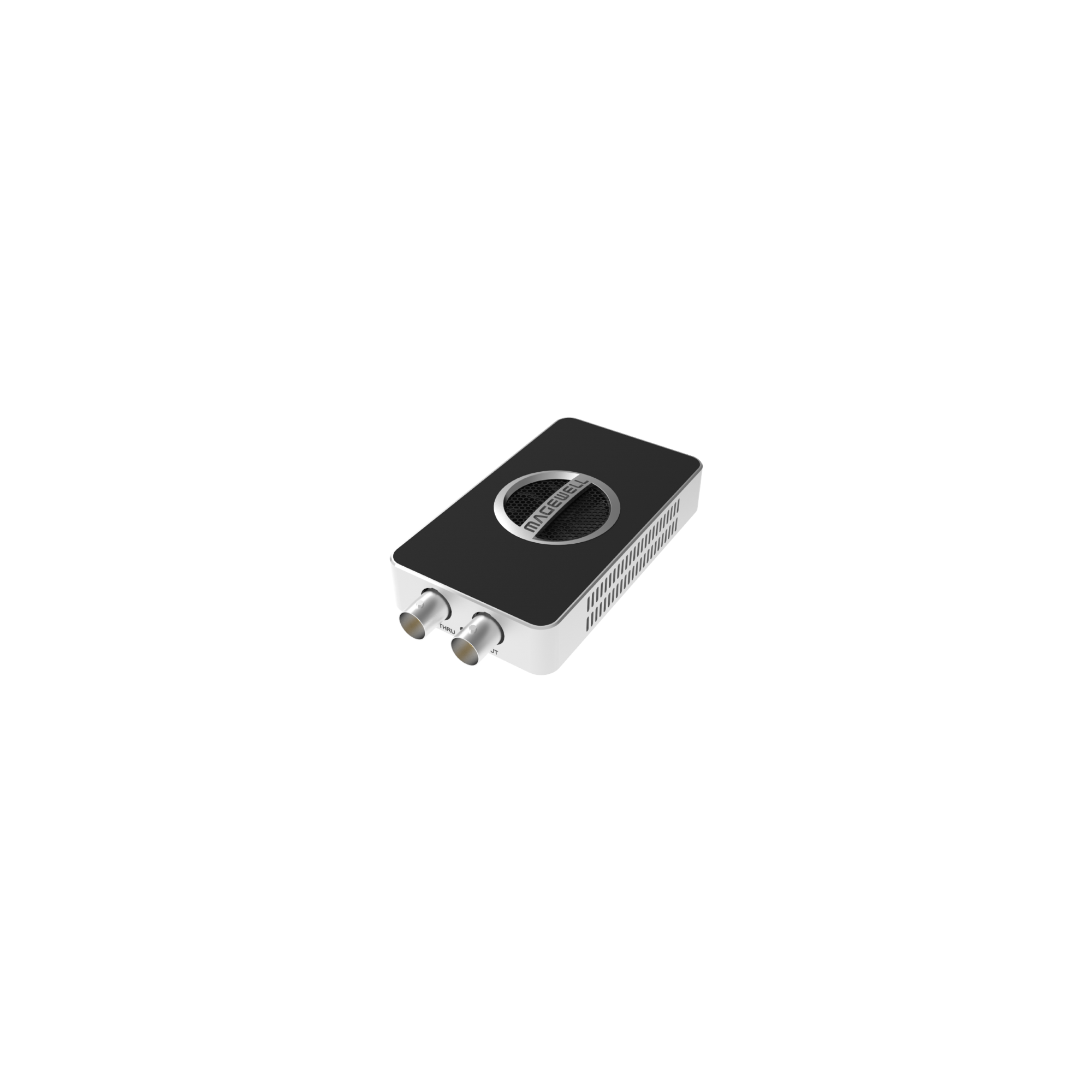

USB Capture SDI 4K Pro

Input
Max input & loop through signal at 12G 4096x2160 60fps 10Bit YUV4:2:2
Video format supports RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
Up to 8 channels, 24-bit SDI embedded audio, with a sample rate of 192kHz
Audio input through via 3.5mm line in supports 2-channel IEC60958 standard audio stream

Process and Capture
Video processing pipelines with ~700Mpixels/s processing bandwidth
Capture videos up to 4096x2160, frame rates up to 240fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.):
- 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/60
- 2560x1440p60
- 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576p25
- 720x480p30
Output NV12/I420/YUY2/UYVY/RGB24/RGB32 videos
Output audio of SDI signal via 3.5 mm line out
Supports 2-channel IEC60958 standard audio stream

Included Software
USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs
The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
Windows DirectShow/Wave API/DirectSound/WASAPI
Linux V4L2/ALSA
macOS AVCaptureSession/AudioUnit

Output Interface
USB 3.2 (20 Gbps) Type-C

Power Consumption
5V max current: ~1.439A
max power consumption: ~7.194W

Working Environment
Operating temperature: 0 to 60 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

1x USB Capture SDI 4K Pro
