Eco Capture HDMI 4K M.2 11520

Name: Eco Capture HDMI 4K M.2 11520
Brand: Magewell
SKU: Eco Capture HDMI 4K M.2 11520
Price: 318.47 EUR
Availability: OutOfStock

Magewell

EAN: 6936572400983

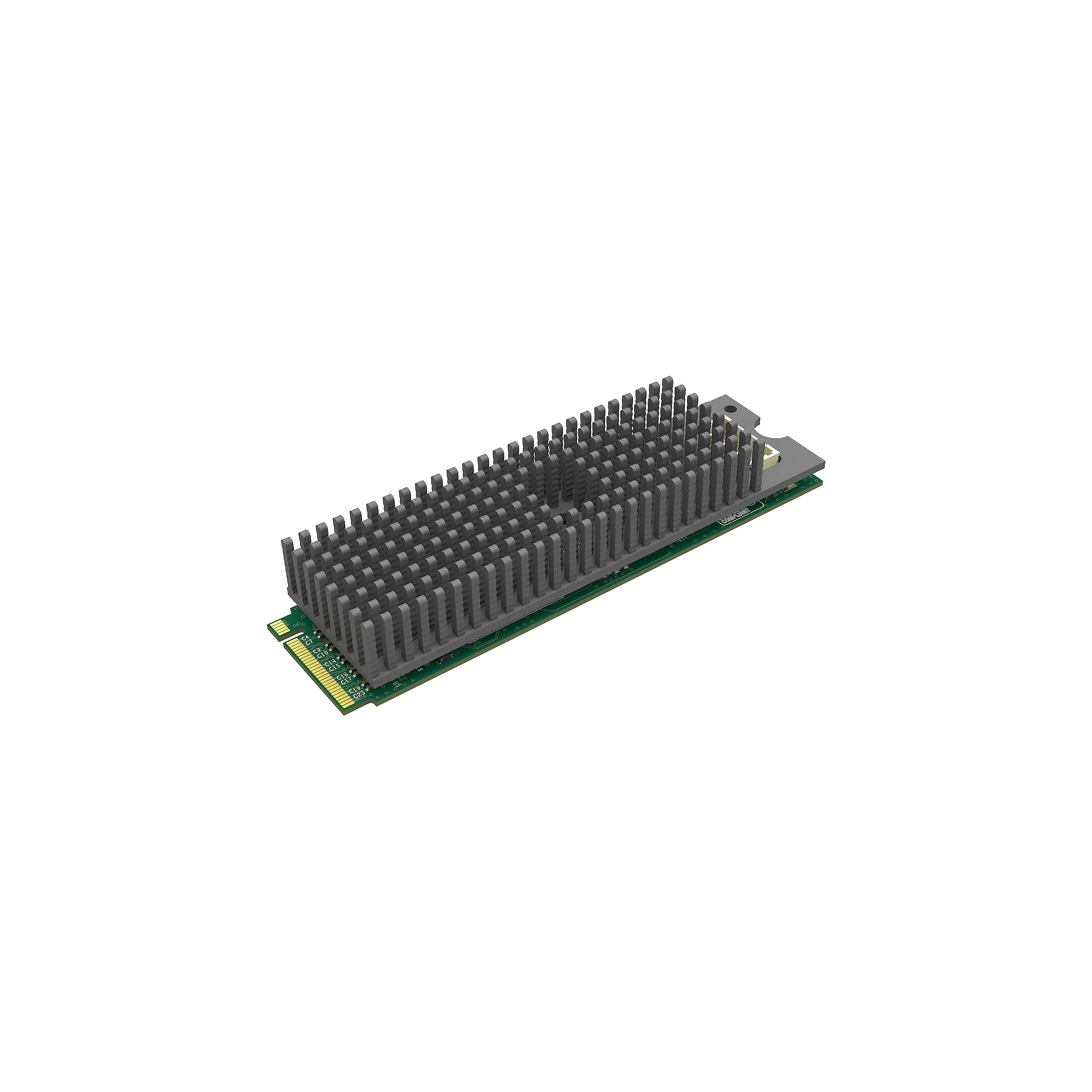

Single-channel 4K HDMI capture card with connection for an M.2 slot

go to the technical sheet

€ 318,47

€ 296,25 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

Magewell Single-channel 4K HDMI capture card with connection for an M.2 slot

This Eco card supports video capture for an HDMI signal up to 4096x2160 pixels with embedded audio, and high frame rate capture up to 144 fps.
These cards (22x80mm) are designed for small, portable systems that don't have room for full-size PCIe slots.

Magewell Eco Capture M.2 cards offer powerful, high-performance video capture solutions with low power consumption.
The Magewell SDK allows developers to customize Magewell APIs for lower latency capture and synchronize channels across multi-channel or even multiple capture cards.

- Single channel 4K capture card
- HDMI + integrated audio

Video Equipments

Elgato

Stream Deck XL

€ 272,96 VAT included

Available 2 unit in 4 Days

Elgato

Stream Deck MK.2

€ 171,45 VAT included

Available 4 unit in 4 Days

Elgato

Stream Deck Mini

€ 115,82 VAT included

Available in 14 days

Supported Operating Systems
- Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 and x64)
- Linux (based on V4L2, support for x86, x64, and ARM architecture)

Supported APIs
° Windows:
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
° Linux:
- V4L2
- ALSA

Supported Software
- VLC
- VirtualDub
- OBS
- XSplit
- vMix
- VidBlaster
- Wirecast
- Microsoft Media Encoder
- Adobe Flash Media Encoder
- Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces: 1 x JST SHD 20-pin socket supporting included SHD to HDMI cable (HDMI 1.4) (DVI-D 1.0 supported via optional adapter)

Host Interface: M.2 2280 standard size

Power Consumption:
- Max Current at 3.3 V: 1.12 A
- Max Power Consumption: 3.75 W

Operating Temperature: 32 to 104°F (0 to 40°C)

Storage Temperature: -4 to 158°F (-20 to 70°C)

Relative Humidity: 5 to 90% non-condensing
