Fairlight Audio MADI Upgrade

Name: Fairlight Audio MADI Upgrade
Brand: Blackmagic
SKU: Fairlight Audio MADI Upgrade
Price: 291.42 EUR
Availability: OutOfStock

Blackmagic

go to the technical sheet

€ 291,42

€ 271,09 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

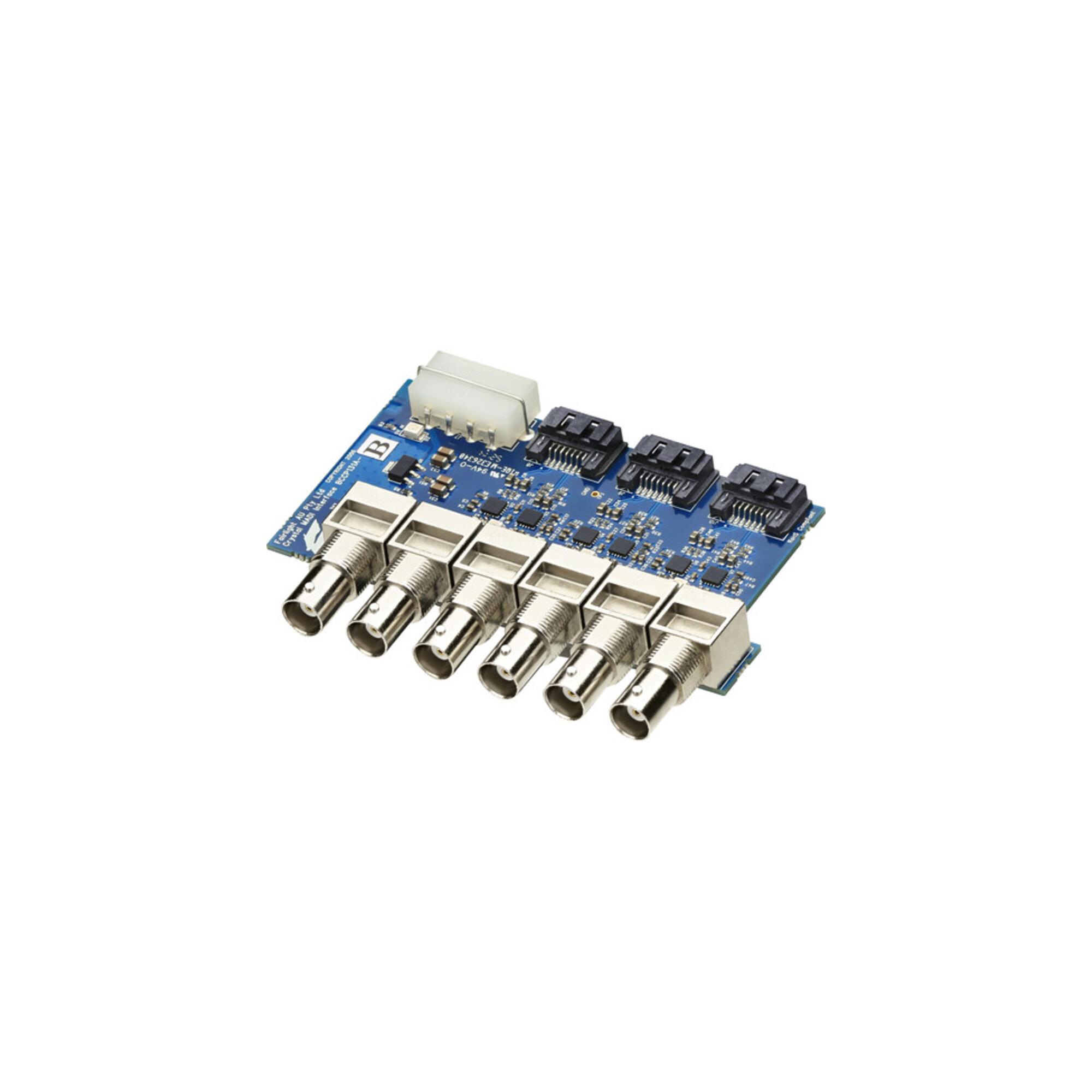

Fairlight Audio MADI Upgrade.

Connected to your Fairlight Audio Accelerator, the Blackmagic Design Fairlight PCIe Audio MADI Upgrade adds 192 channels of MADI I/O to your DaVinci Resolve 17 system, raising the total MADI channel count to 256 inputs and outputs. This half-length card uses no additional PCIe bandwidth and hooks up to the Fairlight Audio Accelerator (required and available separately) through the supplied SATA cables.

The Fairlight Audio MADI Upgrade operates at 24-bit / 48 kHz resolution. It features three 75-ohm BNC MADI inputs and three 75-ohm BNC MADI outputs to provide extreme channel counts while using minimal physical space.
MADI Inputs
Three MADI inputs via 75-ohm BNC jacks
MADI Outputs
Three MADI outputs via 75-ohm BNC jacks
Audio Channels
Total of 192 inputs and outputs
Bit Depth and Sample Rate
24 bit / 48 kHz
PCI Form Factor
Single half-length PCIe x4 board
Power
4-pin computer power cable connector
Hardware Requirements
Requires Fairlight Audio Accelerator (available separately)
PCIe Requirements
Requires connection to Fairlight Audio Accelerator using three supplied SATA cables; uses no additional PCIe bandwidth

Form Factor: Internal Card
Display: None
Channels of I/O
MADI:
192 Inputs / 192 Outputs at 48 kHz
Maximum Sampling Rate: 48 kHz / 24-Bit
Number of Microphone Preamps: None
Expansion Slots: None

Signal Processing
Pad: None
High-Pass Filter: None
Solo/Mute: None

Connectivity
Analog Audio I/O: None
Phantom Power: None
Digital Audio I/O:
3 x BNC Coaxial MADI Input
3 x BNC Coaxial MADI Output
Host Connection / USB: 1 x PCIe
USB (Non-Host): None
Sync I/O: None
Network I/O: None
MIDI I/O: None
Wireless Connectivity: None

Performance
Impedance:
Coaxial MADI
75 Ohms

Digital Audio
Sample Rates: 48 kHz
Sample Rate Conversion: None
Bit Depths: 24-Bit
Sync Sources: MADI

Audio Storage & Playback
Memory Card Slot: None

Compatibility
OS Compatibility macOS 10.15 or Later
Windows 10 (64-Bit Only)
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software: None
Supported Drivers/API & Plug-Ins: Proprietary
Mobile Device Compatibility: None
Required Hardware: PCIe Card Slot
Power
Power Requirements: PCIe
Power Consumption: 4 W

Physical
Operating Humidity :0 to 90%
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Dimensions: 3.07" / 7.8 cm (Half-Size PCIe Card)
Weight: 4.9 oz / 139.0 g

Packaging Info
Package Weight: 0.525 lb
Box Dimensions: 5.5 x 5.4 x 1.2"
