Tascam

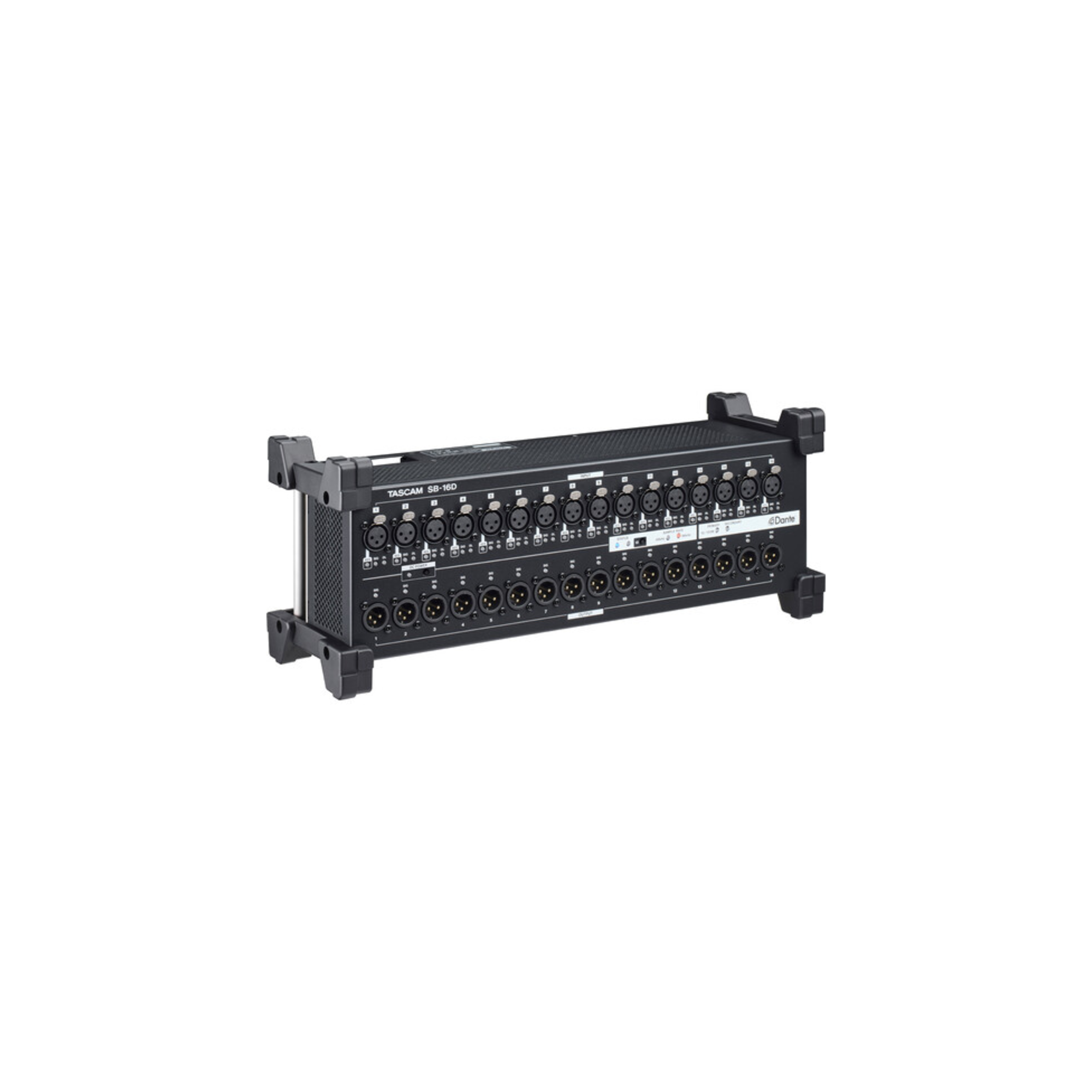

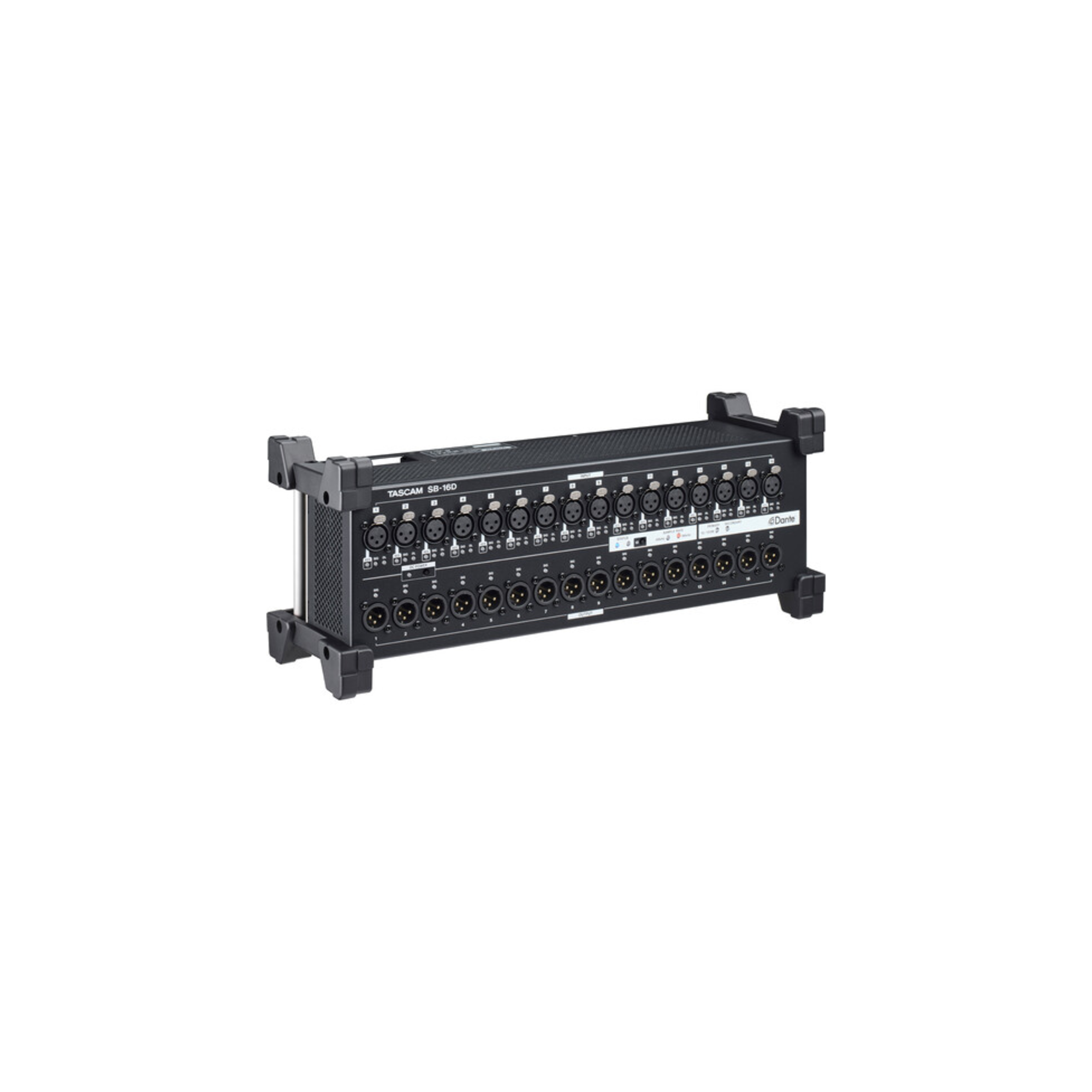

TASCAM SB-16D 16x16 Dante Stage Box and Audio Interface
go to the technical sheet
₦ 5,285,290.00

₦ 4,916,549.00 VAT excl.

Available in 14 days
Manuale: Download
Not sure if this is the right product for you? Talk to a consultant
TASCAM SB-16D 16x16 Dante Stage Box and Audio Interface - Black

Audio professionals in search of I/O expansion for the Sonicview digital mixing console will be impressed with the TASCAM SB-16D, a 16-in / 16-out Dante stage box and standalone audio interface with built-in 32-bit / 96 kHz AD/DA converters and Class 1 HDIA (High Definition Instrumentation Architecture) microphone preamps, well suited for touring bands, concert halls, clubs, bars, special events, corporate meetings, and rental houses.

The stagebox includes 16 XLR inputs and 16 XLR outputs plus primary/secondary Dante I/O connectors and a DB-25 GPIO connector for events and relay applications.
Control the SB-16D with the TASCAM IO Control app or with Sonicview series mixers.
The stage box can be used on the floor, stacked, or racked in a standard 19" rack case (3 RU).
The SB-16D ships with a rackmount kit and mounting hardware

Top Quality Audio I/O for Dante Networks
° Offering the same performance and hardware quality as Sonicview recording and live mixers, TASCAM SB-16D Dante-networked 16-in / 16-out stage box offers all the advantages of Dante networking, combined with seamless integration with Sonicview mixers.
The stage boxes can be used as a floor stage box or rackmounted, and multiple stage boxes can be used simultaneously in a Dante network.

Seamless Integration with Sonicview Mixers
° When a SB-16D stage box is connected to a Sonicview 16XP or 24XP mixer, microphone gain can be remotely controlled from the mixing console, and all SB-16D I/O comes up on the Sonicview VIEW touchscreens for hassle-free ease of use.
In addition, the SB-16D is equipped with 8-in / 8-out GPIOs, which expand to 16-in / 16-out GPIOs when connected to a Sonicview mixer, facilitating parallel control.

Key Features
° 16-in / 16-out Dante-enabled stage box and interface
° Redundant Dante support
° Equipped with etherCON-compatible connectors
° Dante Domain Manager support
° AES67 interoperability
° SMPTE 2110 interoperability
° 16 XLR mic/line inputs with +48 phantom power and SIG OL LED input signal/overload indicators
° 16 XLR line outputs with SIG OL LED output signal indicators
° Up to 96 kHz sampling and 32-bit precision
° Supports both floor installation and 3 RU rackmounting
° Controllable from connected Sonicview mixers
° Remote control and offline editing using TASCAM IO Control app for macOS, Windows, and iPadOS
° Equipped with DC input and supports redundant power supply (DC power supply not included)
° Equipped with 8-in / 8-out expansion GPIO terminals, expandable to 16-in / 16-out when connected to a Sonicview mixer
° Switchable reference level


XSW 2 835 A
Sennheiser

XSW 2 835 A

₦ 788,941.00 VAT included
Available in 11 days
BLX14ESM35
Shure

BLX14ESM35

₦ 708,854.00 VAT included
Available in 14 days
BLX14EW85-H8E
Shure

BLX14EW85-H8E

₦ 886,874.00 VAT included
Available 1 unit in 4 Days
XSW 2 835 B
Sennheiser

XSW 2 835 B

₦ 785,501.00 VAT included
Available in 11 days
BLX14ECVL-M17
Shure

BLX14ECVL-M17

₦ 719,281.00 VAT included
Available in 14 days
BLX14REW85-H8E
Shure

BLX14REW85-H8E

₦ 966,101.00 VAT included
Available 1 unit in 4 Days
BLX14RE M17
Shure

BLX14RE M17

₦ 857,795.00 VAT included
Available in 14 days
K3 MMF 0100
Adam Hall

K3 MMF 0100

₦ 24,885.00 VAT included
Available 10 unit in 4 Days
K3 MMF 0600
Adam Hall

K3 MMF 0600

₦ 29,723.00 VAT included
Available 15 unit in 4 Days
K5 MMF 0150
Adam Hall

K5 MMF 0150

₦ 59,124.00 VAT included
Available in 14 days
K4 MMF 1500
Adam Hall

K4 MMF 1500

₦ 56,920.00 VAT included
Available 4 unit in 4 Days
K5 MMF 0750
Adam Hall

K5 MMF 0750

₦ 77,614.00 VAT included
Available 2 unit in 4 Days
K4 MMF 1000
Adam Hall

K4 MMF 1000

₦ 45,418.00 VAT included
Available 4 unit in 4 Days
K4 MMF 2000
Adam Hall

K4 MMF 2000

₦ 68,476.00 VAT included
Available 2 unit in 4 Days
K3 MMF 01000
Adam Hall

K3 MMF 01000

₦ 51,599.00 VAT included
Available 20 unit in 4 Days
K3 MMF 0300
Adam Hall

K3 MMF 0300

₦ 26,928.00 VAT included
Available 20 unit in 4 Days
K4 MMF 0150
Adam Hall

K4 MMF 0150

₦ 28,809.00 VAT included
Available 13 unit in 4 Days
K5 MMF 0100
Adam Hall

K5 MMF 0100

₦ 66,058.00 VAT included
Available in 14 days
K5 MMF 1000
Adam Hall

K5 MMF 1000

₦ 79,871.00 VAT included
Available 7 unit in 4 Days
K3 MMF 0050
Adam Hall

K3 MMF 0050

₦ 37,140.00 VAT included
Available 14 unit in 4 Days
K4 MMF 0250
Adam Hall

K4 MMF 0250

₦ 29,723.00 VAT included
Available 4 unit in 4 Days
K4 MMF 3000
Adam Hall

K4 MMF 3000

₦ 133,191.00 VAT included
Available in 14 days
ADP-BT-AU-2X1
Audinate

ADP-BT-AU-2X1

₦ 689,773.00 VAT included
Available 1 unit in 4 Days
K5 MMF 1500
Adam Hall

K5 MMF 1500

₦ 79,280.00 VAT included
Available 3 unit in 4 Days
K4 MMF 0050
Adam Hall

K4 MMF 0050

₦ 25,530.00 VAT included
Available 15 unit in 4 Days
K5 MMF 2000
Adam Hall

K5 MMF 2000

₦ 73,099.00 VAT included
Available 5 unit in 4 Days
K3 MMF 02000
Adam Hall

K3 MMF 02000

₦ 60,199.00 VAT included
Available in 14 days
K5 MMF 0300
Adam Hall

K5 MMF 0300

₦ 66,058.00 VAT included
Available 1 unit in 4 Days
K4 MMF 0750
Adam Hall

K4 MMF 0750

₦ 38,484.00 VAT included
Available in 14 days
K4 MMF 0100
Adam Hall

K4 MMF 0100

₦ 26,498.00 VAT included
Available 9 unit in 4 Days
K4 BFV 0500
Adam Hall

K4 BFV 0500

₦ 27,411.00 VAT included
Available in 14 days
K4 MMF 0500
Adam Hall

K4 MMF 0500

₦ 35,259.00 VAT included
Available 5 unit in 4 Days
VITA BB PLUS
Glensound

VITA BB PLUS

₦ 2,766,243.00 VAT included
Available in 11 days
PARADISO
Glensound

PARADISO

₦ 12,700,156.00 VAT included
Available in 14 days
VITA MINI
Glensound

VITA MINI

₦ 2,338,016.00 VAT included
Available in 11 days
Vita Plus
Glensound

Vita Plus

₦ 2,777,154.00 VAT included
Available in 14 days
MinFerno
Glensound

MinFerno

₦ 4,086,396.00 VAT included
Available in 11 days
PARADISO LITE
Glensound

PARADISO LITE

₦ 9,341,695.00 VAT included
Available in 14 days
BEATRICE B1
Glensound

BEATRICE B1

₦ 1,567,188.00 VAT included
Available in 14 days
BEATRICE D8+
Glensound

BEATRICE D8+

₦ 5,296,954.00 VAT included
Available in 14 days
BEATRICE R8
Glensound

BEATRICE R8

₦ 5,140,380.00 VAT included
Available in 14 days
BEATRICE B2
Glensound

BEATRICE B2

₦ 1,674,311.00 VAT included
Available in 14 days
BEATRICE D8
Glensound

BEATRICE D8

₦ 4,737,470.00 VAT included
Available in 14 days
BEATRICE B4
Glensound

BEATRICE B4

₦ 1,971,710.00 VAT included
Available in 14 days
BEATRICE P1
Glensound

BEATRICE P1

₦ 2,114,631.00 VAT included
Available in 14 days
VIRGIL OB
Glensound

VIRGIL OB

₦ 1,348,479.00 VAT included
Available in 11 days
DARK88 MKII
Glensound

DARK88 MKII

₦ 5,282,549.00 VAT included
Available in 11 days
DARK8ADI
Glensound

DARK8ADI

₦ 4,047,535.00 VAT included
Available in 11 days
DARK16I
Glensound

DARK16I

₦ 5,439,284.00 VAT included
Available in 11 days
VIRGIL BC
Glensound

VIRGIL BC

₦ 1,161,536.00 VAT included
Available in 11 days
ADP-DAI-AU-2X0
Audinate

ADP-DAI-AU-2X0

₦ 553,248.00 VAT included
Available 1 unit in 4 Days
ADP-DAO-AU-0X2
Audinate

ADP-DAO-AU-0X2

₦ 553,248.00 VAT included
Available 1 unit in 4 Days
DARK1616D
Glensound

DARK1616D

₦ 6,055,743.00 VAT included
Available in 11 days
VIRGIL
Glensound

VIRGIL

₦ 1,121,493.00 VAT included
Available in 11 days
ADP-DAO-AU-0X1
Audinate

ADP-DAO-AU-0X1

₦ 444,350.00 VAT included
Available 1 unit in 4 Days
DARK1616M
Glensound

DARK1616M

₦ 8,822,148.00 VAT included
Available in 11 days
ADP-USB-AU-2X2
Audinate

ADP-USB-AU-2X2

₦ 430,483.00 VAT included
Available 2 unit in 4 Days
VITTORIA 64 DD
Glensound

VITTORIA 64 DD

₦ 8,562,804.00 VAT included
Available in 21 days
DIVINE
Glensound

DIVINE

₦ 1,584,549.00 VAT included
Available 9 unit in 4 Days

Download

Manuale

Download (5.87MB)

General
Compatibility:
° TASCAM Viewsonic 16XP
° TASCAM Viewsonic 24XP

Inputs / Outputs
Audio I/O:
° 16 x XLR 3-Pin Line/Mic Input
° 16 x XLR 3-Pin Line Output

Wireless
Mobile App Compatible
° Yes: iPadOS Only
App Name: Sonicview Control
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility

Power
Power Source: AC Input (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
DC Input Power: 11 to 27 VDC at 2 to 4 A
Power Consumption: 44 W

Physical
Color: Black
Dimensions:
° 17.9 x 7.1 x 5.5" / 454 x 179.6 x 140 mm (Standard Foot)
° 19.01 x 5.2 x 4.7" / 48.28 x 13.2 x 12 cm
Weight: 9.9 lb / 4.5 kg

Packaging Info
Package Weight: 14.835 lb/6.73 kg
Box Dimensions: 23.2 x 8.7 x 8.4"/59 x 22 x 21 cm

TASCAM SB-16D 16x16 Dante Stage Box and Audio Interface
AC Power Cable
Rackmount Kit + Hardware
