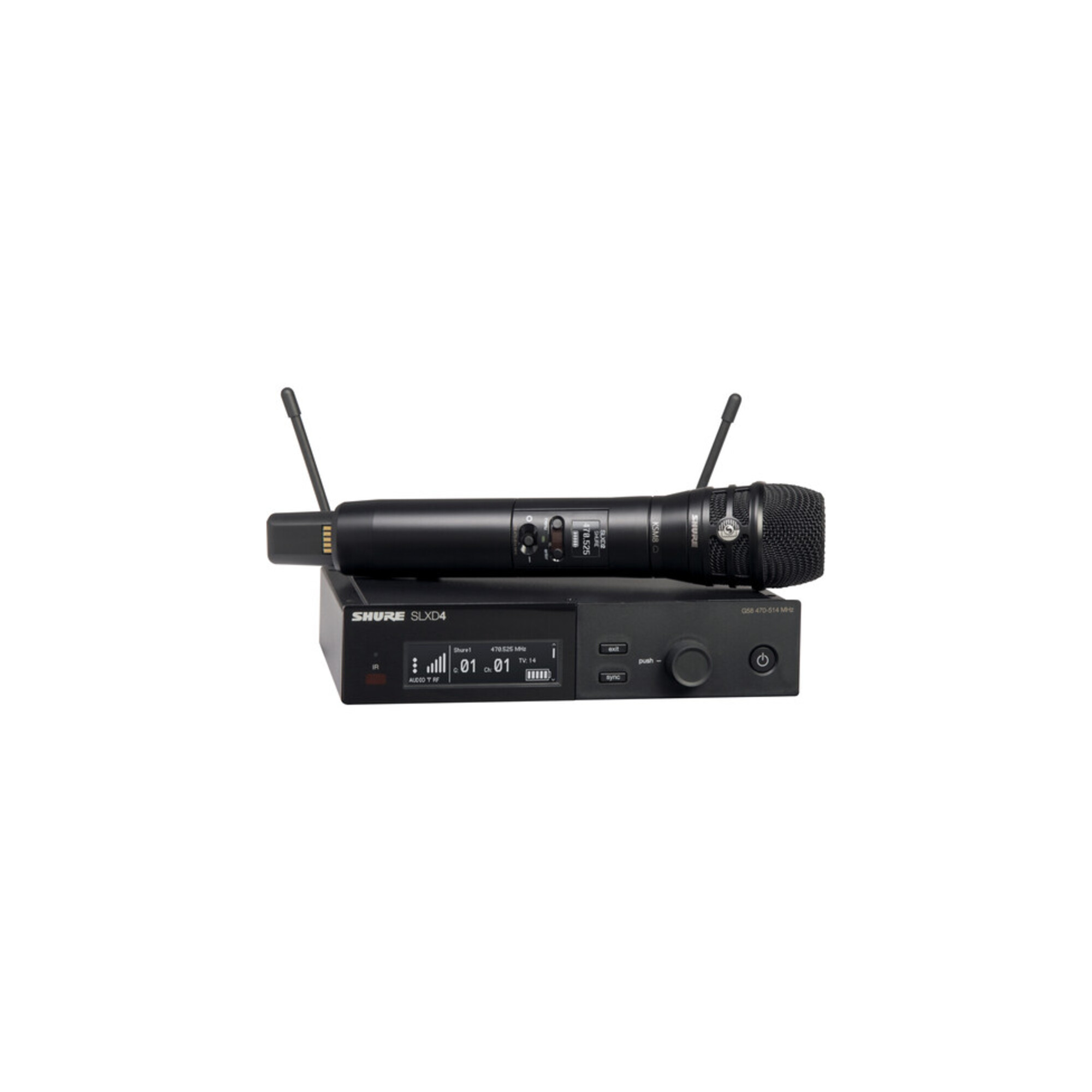

SLXD24EK8B-J53

System
Wireless Transmission: Digital UHF
Number of RF Channels : 1760
Included Transmitters : 1 x Handheld
Diversity : True Digital Diversity
RF Bandwidth : 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range : 328'' / 100 m
Max Systems per Setup : 32
Sample Rate/Resolution : 24-Bit
Latency: 3.2 ms
Dynamic Range: 120 dBA (Typical)
Encryption : None

Receiver
Form Factor: Tabletop / Rackmount
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size : 1 RU (1/2 Rack)
Antenna : 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels: 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced Output (Lockable)
Gain Range : 0 to +21 dB (3 dB Steps)
Pad : 30 dB
Audio Output Level: -18 to +42 dB (Balanced, Unbalanced)
Phantom Power Protection: On 1/4", XLR Outputs
Frequency Response : 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols: DHCP, Manual IP
Impedance 1/4" Output:
1.3 Kilohms (Balanced)
670 Ohms (Unbalanced)
XLR Output:
400 Ohms (Balanced)
150 Ohms (Balanced)
Adjacent Channel Isolation : >70 dB
Spurious Rejection: >75 dB
Power Requirements : AC/DC Power Adapter
AC/DC Power Adapter: 15 VDC at 600 mA, Center-Positive (Included)
AC Input Power : 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: LCD (AF Level, Channel, Frequency, Group, RF Level, Sync, Transmitter Battery Status)

Housing Steel
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature : -20 to 165°F / -28 to 73°C
Dimensions : 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
Weight : 1.8 lb / 816 g (without Antenna)

Transmitter 1
Transmitter
Form Factor: Handheld
RF Output Power: 1 / 10 mW
Audio I/O : None
Pad : None
Muting: None
Audio Input Level : 8.2 dBV
Auto-Level Control : No
Gain Range : 0 +21 dB
Signal Processing: None
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
Sync Method : IR
Antenna : Internal Single-Band Helical
Power Requirements: Battery
Battery Type: 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time : 1.25 to 5.5 Hours
Approx. Battery Life : 8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
USB/Lightning Connectivity: None
Display & Indicators : LCD (Battery Status, Channel, Group, Power)
Housing : Aluminum
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature : -20 to 165°F / -28 to 73°C
Dimensions : 1.5 x 6.9" / 37.1 x 176 mm
Weight: 3.1 oz / 89 g

Microphone
Form Factor: Handheld Capsule
Color : Black
Sound Field: Mono
Capsule : Dynamic
Polar Pattern: Cardioid
Frequency Range: 40 Hz to 16 kHz
Sensitivity : -51.5 dBV/Pa
CMRR : None
Diameter: 1.90" / 48.3 mm
