Vita Plus

Name: Vita Plus
Brand: Glensound
SKU: Vita Plus
Price: 2901208.93 NGN
Availability: OutOfStock

Glensound

Small Desktop Single Commentators Box

go to the technical sheet

₦ 2,901,208.93

₦ 2,698,799.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 290,120.89

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

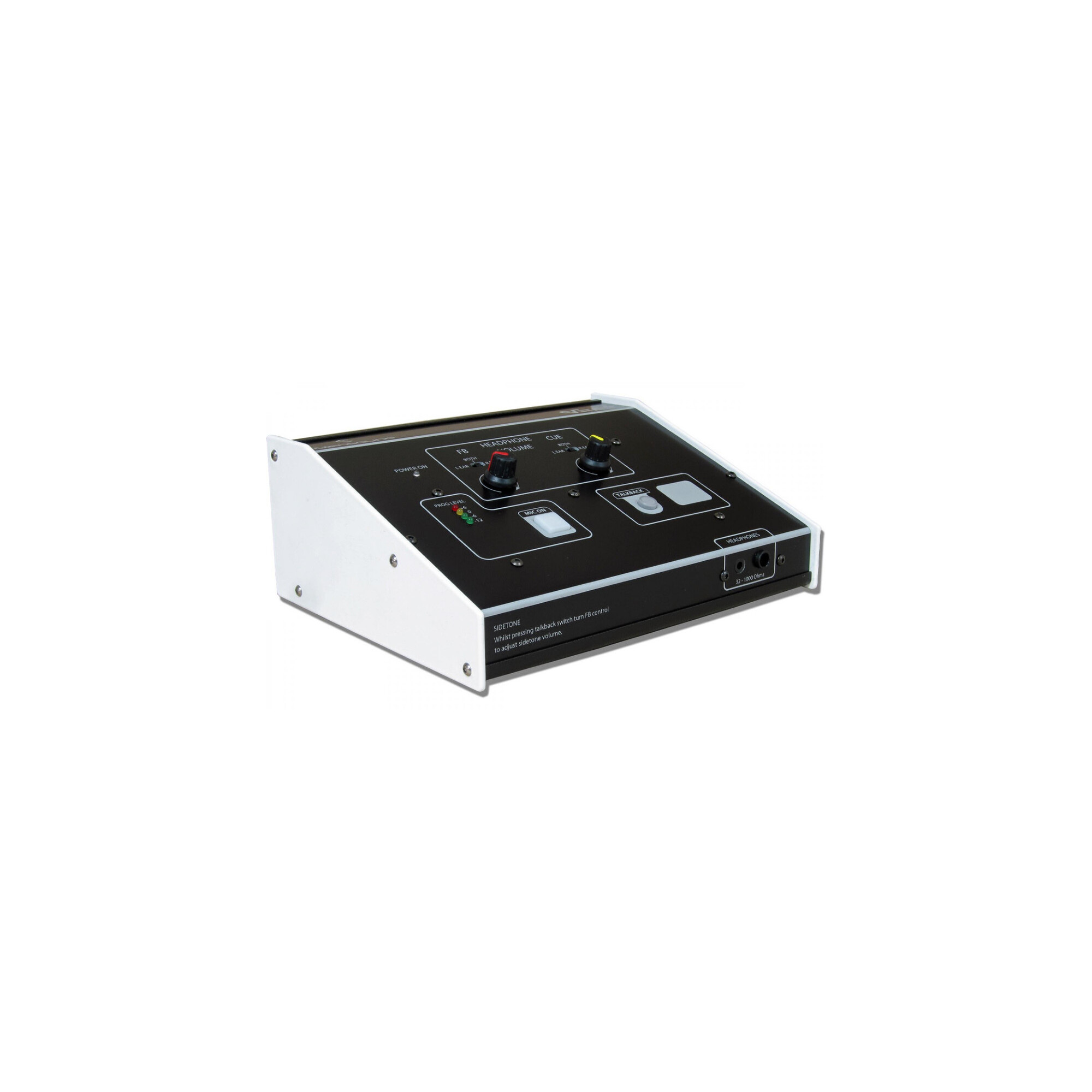

Glensound Small Desktop Single Commentators Box

- Complete commentary functionality and 4W in a desktop format
- Dante AoIP network
- Input is switchable from line, mic, or mic + 48v phantom power
- Low noise, high headroom mic amplifier
- 48K 24bit A/D converter
- Headphone output on 6.35mm jack socket
- Two outputs: one for main programme audio, one for talk back circuit, are both on the single RJ45/CAT5 network audio connection
- Independently configurable buttons for both outputs using Config+: latching, momentary or lazy
- Two inputs for headphone monitoring from network audio connection, both with adjustable level
- Headphone inputs have left/both/right switching
- Glensound intelligent headphone amp provides correct output levels into low or high impedance headphones and can also correctly drive mono earpieces with mono jack plugs.
- Powered via PoE, or internal switch mode PSU

Converters

Magewell

Pro Convert Audio DX

₦ 915,791.43 VAT included

Available in 14 days

Mic Input Gain Range: -18dBu to +12dBu
Dynamic Mic Line Up: 58dBu
Mic + Phantom Powert Line Up: 42dBu
Line Input Line Up: 0dBu (Gain range +/-15dB)
Equivalent Input Noise: 124dBu (22-22KHz RMS gain @ max) Input terminated with 300 Ohms
Frequency Response (Mic-Line):
- MIC: >+/-0.25dB 50Hz to 22kHz (-2dB @ 25Hz)
- Line: >-0.1dB 22Hz to 22kHz
Phantom Power: 48 Volt Phantom power
Maximum Input Before Clipping:
- Dynamic MIC: -2dBu
- Mic + 48V Phantom: +12dBu
- Line: +18dBu
THD+Noise (Ref+8dBu):
- 100Hz = 0.016%
- 1kHz = 0.012%
- 10kHz = 0.011%
PPM Meters: 4 x LEDS (-12,-6,0,+6 dBu with reference to prog out)
Headphone Impedance:
- 32 - 1000 Ohms
- Auto output level to match impedance
Maximum Headphone output level: +15.8dB into 600 Ohms
Headphone Frequency response: >-0.1dB 22Hz to 22kHz
Headphone Noise: -74dB @ lineup (residual noise)
Headphone THD + Noise (Ref+8dBu): 0.008% @ 1kHz
Headphone Volume Pot Range:
- Default: +10dB to Off
- Optional configuration via App: +10dB to -20dB
Dante Network Audio Connection:
- Frequency: 48kHz
- Resolution: 24 bit
- CAT5 on an RJ45 connection. Two send channels and two receive channels.
Remote Control Application: Windows 10 direct install application (Not downloaded from app store)
Power:
- PoE on CAT5 connection
- Internal mains supply: 100 - 240VAC (+/-10%) 47 - 63Hz
- Maximum consumption 7 Watts
Overall Size: 41 x 214 x 172 mm (H x W x D)
Unit Weight: 920 Grams
