BEATRICE B4

Name: BEATRICE B4
Brand: Glensound
SKU: BEATRICE B4
Price: 1005.83 EUR
Availability: OutOfStock

Glensound

4 Channel Network Audio Ultra Compact Beltpack Intercom

go to the technical sheet

€ 1.005,83

€ 935,66 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

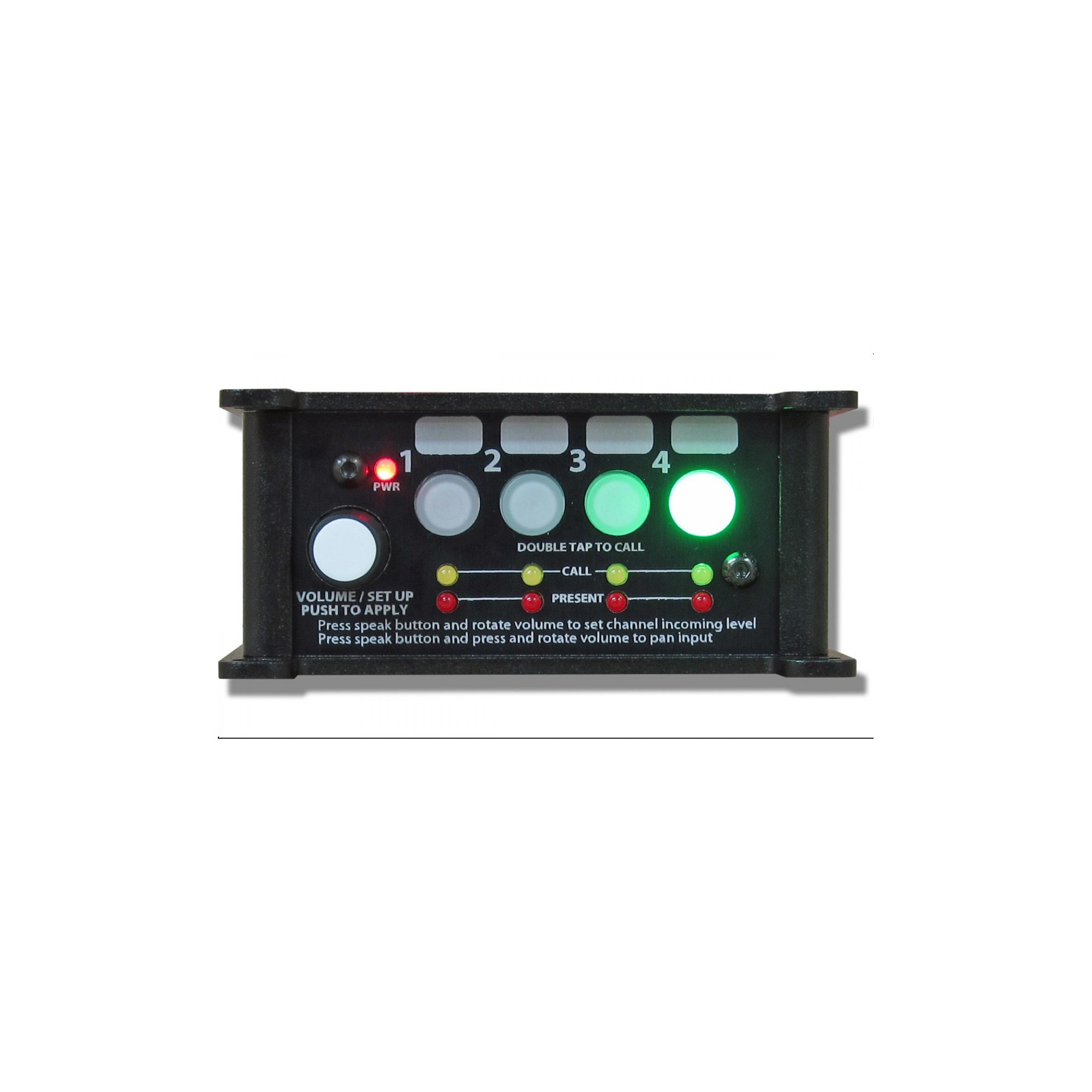

The Glensound BEATRICE B4 is a robust, 4* channel beltpack intercom with crystal clear audio designed for broadcast, theatre and professional audio applications.
It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks. As such the BEATRICE B4 is also fully compatible with other manufacturers' equipment using the Dante protocol.
The Beatrice B4 is also AES67 compliant.
This small desktop unit was deigned to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.

Audio Mixer Converters

Audinate

Dante Virtual Soundcard

€ 95,87 VAT included

Available in 19 days

Magewell

Pro Convert Audio DX

€ 519,44 VAT included

Available in 14 days

FOUR INCOMING AUDIO CIRCUITS
This device uses Audinate''s Ultimo Chipset.This chipset can receive 4 incoming audio channels each at 48kHz. However this chipset can only receive these 4 audio channels from a maximum of 2 network locations.

NETWORK/ Dante Interface

Physical Interface: 1 of RJ45 Neutrik Ethercon
Audio Sample Frequency: 48kS/s
Transfer Rate: 100Mbps
Dante Chipset: Ultimo UXT-01-004 (Note: Audinate recommend no more than 10 Ultimo chipsets on one network UNLESS another Dante device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network)
AES67 Compliant: The Audinate Ultimo chipset used is AES67 compliant

AUDIO

Mic Gain Range: +60 to +20dB
Phantom Power: 12 Volts
Equivalent Input Noise: -110dB (20Hz to 20kHz A weighted 300 Ohms)
Headphone Impedance: 32 - 1000 Ohms
Max Headphone Output Level: +10dB into 600 Ohms
Headphone Connector: 6.35mm (1/4") TRS socket, can be safely connected to TS mono jack plug
Band Pass Filter: 50Hz to 15kHz

CALL CIRCUIT

Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 seconds
Compatibility: All Glensound Beatrice units and Studio Technologies

POWER

Power Over Ethernet (PoE): 48 Volts
Consumption: 5 Watts

PHYSICAL

Mechanics: All aluminium with laser etched anodised panels and light textured black powder coated sides
Size: 92 x 164 x 39 mm (W x D x H)
Weight: 850g (1.9lb)
Shipping Weight: 2.35Kg
Shipping Size: 310x260x90mm
Shipping Carton: Rugged export quality cardboard carton

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS

Handbook: Physical A5 (Download .pdf also available)
Network Cable: 2 meter RJ45 to RJ45 cable

OPTIONAL ITEMS

Black shoulder strap printed with Glensound logo
