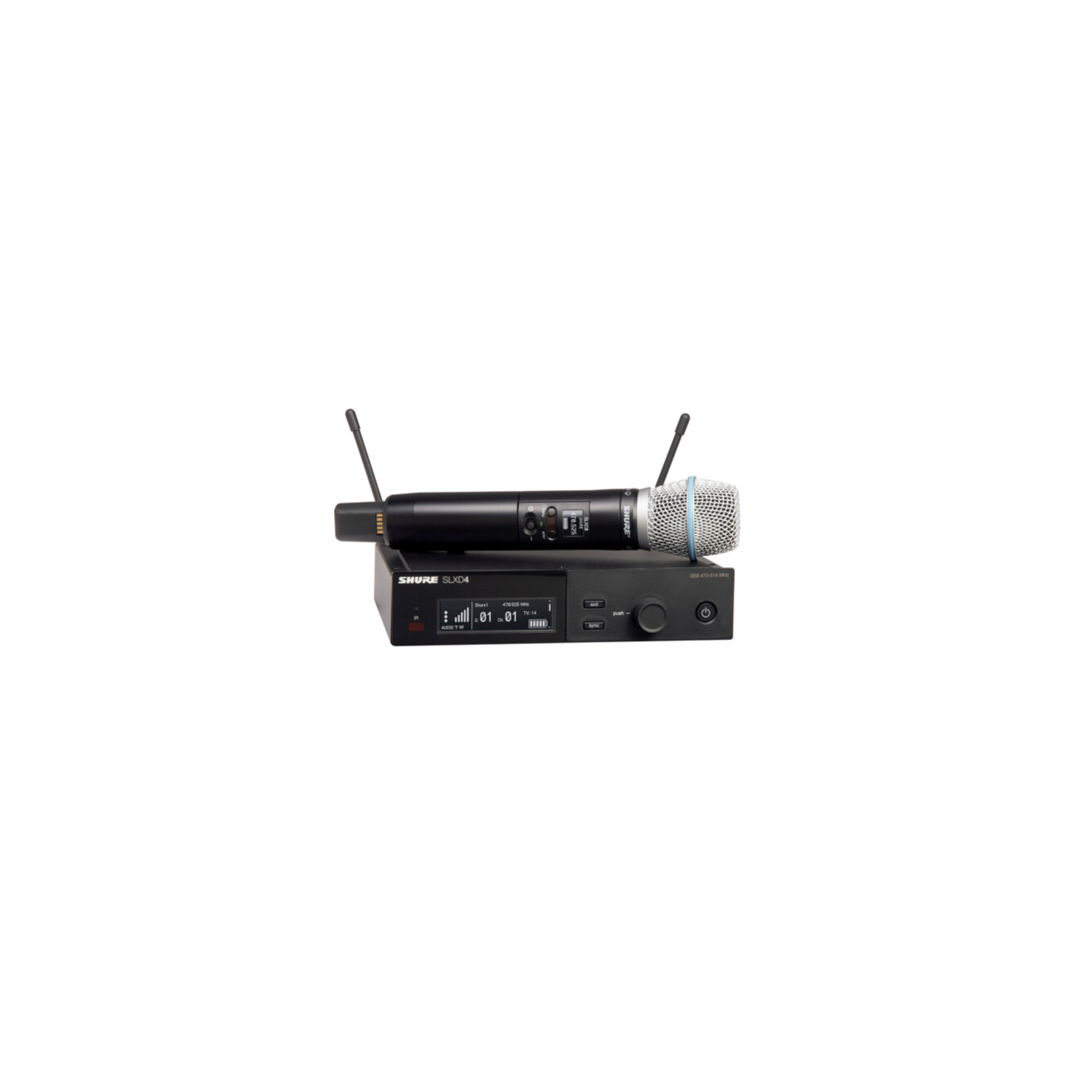

SLXD24EB87A-J53

System
Wireless Transmission : Digital UHF
Number of RF Channels : 1760
Included Transmitters : 1 x Handheld
Diversity : True Digital Diversity
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range : 328'' / 100 m
Max Systems per Setup: 32
Sample Rate/Resolution : 24-Bit
Latency : 3.2 ms
Dynamic Range: 120 dBA (Typical)
Encryption : None
Receiver
Form Factor Tabletop / Rackmount
Mounting Options : Rackmount (with Included Hardware)
Rackmount Size : 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels : 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TRS Female Balanced Output (Lockable)
Gain Range : 0 to +21 dB (3 dB Steps)
Pad : 30 dB
Audio Output Level: -18 to +42 dB (Balanced, Unbalanced)
Phantom Power Protection: On 1/4", XLR Outputs
Frequency Response: 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols : DHCP, Manual IP
Impedance 1/4" Output:
1.3 Kilohms (Balanced)
670 Ohms (Unbalanced)
XLR Output:
400 Ohms (Balanced)
150 Ohms (Balanced)
Adjacent Channel Isolation : >70 dB
Spurious Rejection: >75 dB
Power Requirements : AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 600 mA, Center-Positive (Included)
AC Input Power : 100 to 240 VAC, 50 / 60 Hz
Display & Indicators LCD (AF Level, Channel, Frequency, Group, RF Level, Sync, Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
Weight 1.8 lb / 816 g (without Antenna)
Transmitter 1
Transmitter
Form Factor: Handheld
RF Output Power 1 / 10 mW
Audio I/O: None
Pad : None
Muting: None
Audio Input Level: 8.2 dBV
Auto-Level Control No
Gain Range 0 +21 dB
Signal Processing : None
Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)
Sync Method IR
Antenna Internal Single-Band Helical
Power Requirements : Battery
Battery Type 2 x AA (Included)
1 x Shure SB 903 (Not Included)
Battery Charging Time: 1.25 to 5.5 Hours
Approx. Battery Life : 8 Hours (Lithium Shure SB903)
8 Hours (Alkaline)
USB/Lightning Connectivity: None
Display & Indicators LCD (Battery Status, Channel, Group, Power)
Housing Aluminum
Operating Temperature : 0 to 122°F / -17 to 50°C
Storage Temperature : -20 to 165°F / -28 to 73°C
Dimensions : 1.5 x 6.9" / 37.1 x 176 mm
Weight : 5.2 oz / 147 g
Microphone
Form Factor: Handheld Capsule
Sound Field : Mono
Capsule : Electret Condenser
Polar Pattern: Supercardioid
Frequency Range: 50 Hz to 20 kHz
Equivalent Noise Level: 28 dB A-Weighted
Maximum SPL: 140.5 dB SPL
Sensitivity : -51.5 dBV/Pa
CMRR : None
Dynamic Range: 117 dB
Diameter: 2.01" / 51.1 mm
General
Packaging Info
Package Weight: 7.51 lb
Box Dimensions (LxWxH) : 17.7 x 13.8 x 4.5"
