DARK1616D

Name: DARK1616D
Brand: Glensound
SKU: DARK1616D
Price: 3276.75 EUR
Availability: OutOfStock

Glensound

DARK1616D Dante/AES67 Network Audio 8x AES3 Inputs 8x AES3 Outputs interface

go to the technical sheet

€ 3.276,75

€ 3.048,14 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

The Glensound DARK1616D is a digital to digital converter designed to connect AES3 audio circuits to/ from a Dante/ AES67 audio network.

Dante network audio is a common protocol for distributing high quality linear audio over standard IP networks and it is widely used by many audio equipment manufacturers. The Glensound Dark1616D Dante audio interface will be compatible with any other manufacturers Dante audio interface. Further details of Dante network audio can be found at www.audinate.com

Being designed for live on-air broadcast applications the Glensound Dark1616D has been designed with multiple redundancy capabilities. It has 2 mains power sources and it also has fully redundant network connections for both Copper & Fibre circuits.

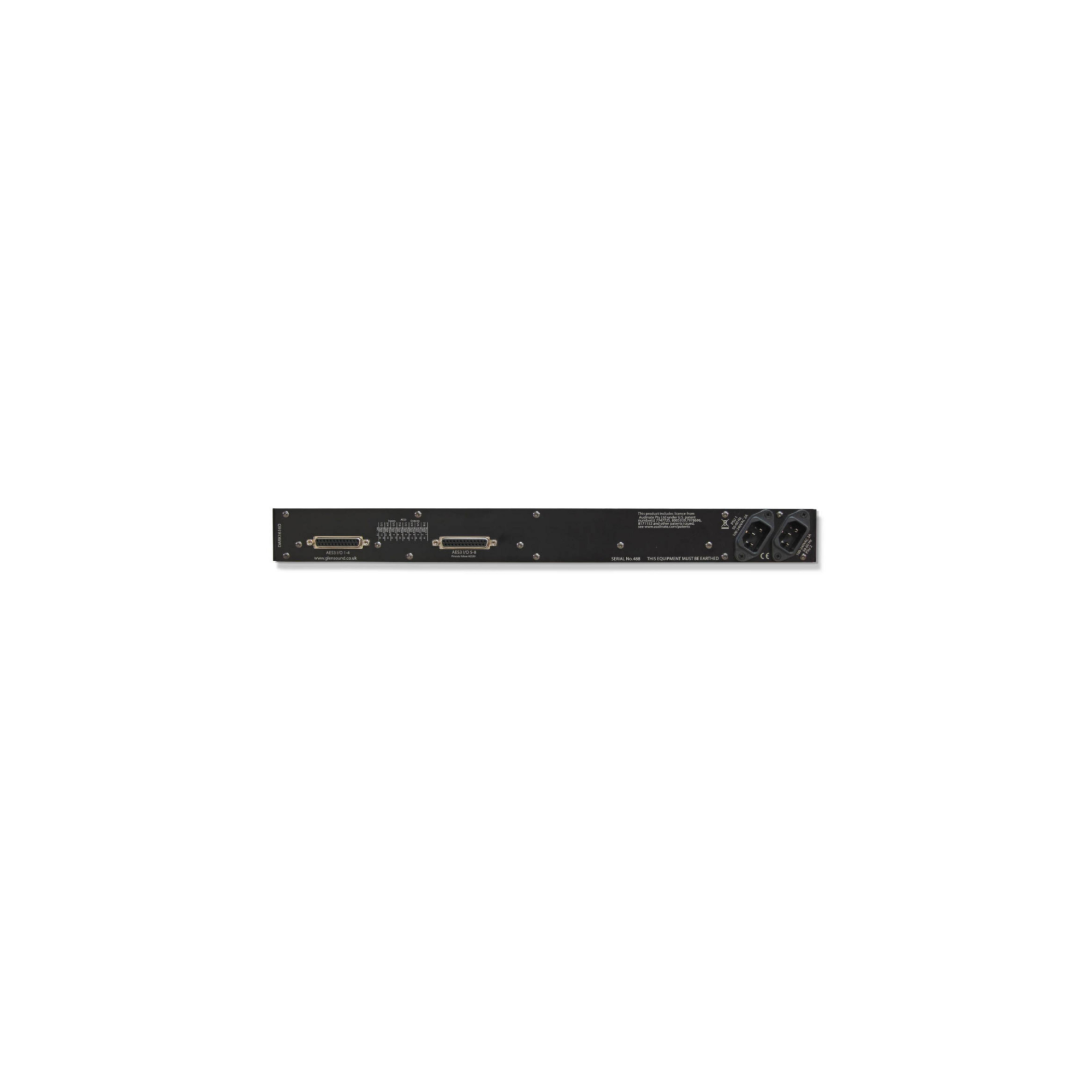

The Dark1616D provides 8 balanced AES3 inputs and 8 balanced AES3 outputs to the Dante network on rear panel D25 connectors wired to AES59 (also known as the Tascam standard).

As per our other Dante equipment 0dBu = -18dBFs

Audio Mixer Converters

Audinate

Dante Virtual Soundcard

€ 95,87 VAT included

Available in 19 days

Magewell

Pro Convert Audio DX

€ 519,44 VAT included

Available in 14 days

Analogue Audio
Maximum Input Level: +18dB
Maximum Output Level: +18dBu
Input Impedance: >20k Ohm
Output Impedance: =Distortion: 0.0013% @ 100Hz
0.0022%@1kHz
0.00094% @ 10kHz
Reference to +8dBu output
Noise: -93dB@line up A weighted RMS
Dynamic Range: 111dB
Input And Output Type: Electronically balanced (can be wired unbalanced)

Digital AES3 Audio
Frequency Response: flat to 22kHz
Maximum Input And Output Level: 0dBFs
Input And Output Impedance: 110 ohm
THD+N: 0.00018% relative
Noise: >-123dB (residual) A weighted RMS
Inputs And Outputs: transformer balanced
Dynamic Range: >141dB
Input Frequency: 16-192kHz (sample rate converted to meet Dante network frequency)
Output Frequency: 44.1, 48, 88.2, 96, 192kHz (output matched Dante network)

Power
Connections: 2 x mains inputs filtered IEC, 100 to 240 VAC 47-63Hz
AC Consumption: 18 watts@230VAC
Internal Mains Fuse: 20mm 1A anti surge.

Physical
Audio Connectors: 25 way D connectors wired to AES59
Alarm Connector: 9 way D socket
Alarm Type: solid state relay
Size: 1RU 19" 300mm deep excluding connectors
Nett Weight: 3.3kg
Shipping Carton: Rugged export quality cardboard 610x420x130mm LxDxH
Shipping Weight: 4.8kg

Environmental
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing
