Sonicview 24

Name: Sonicview 24
Brand: Tascam
SKU: Sonicview 24
Price: 11511640 NGN
Availability: OutOfStock

Tascam

24-Channel Digital Mixing Console and Multitrack Recorder

go to the technical sheet

₦ 11,511,640.00

₦ 10,708,502.20 VAT excl.

Available in 19 days

: Download

Not sure if this is the right product for you? Talk to a consultant

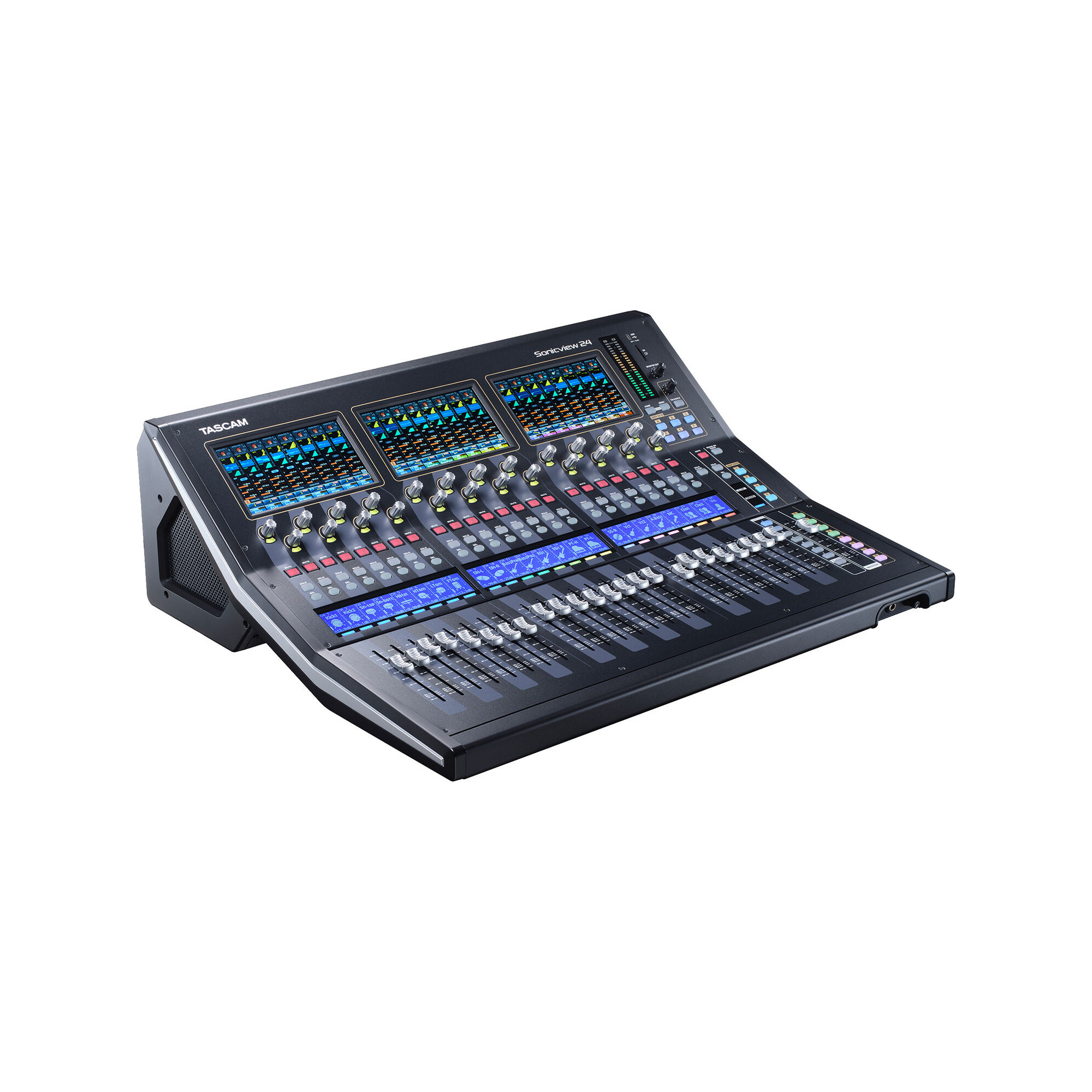

Tascam Sonicview 24XP 24-Channel Digital Mixing Console and Multitrack Recorder

Audio professionals in search of a cutting edge digital mixer will be impressed with the TASCAM Sonicview 24XP, a next-generation multitrack recording and digital mixing console with multi-environment touchscreens, well suited for touring bands, concert halls, clubs, bars, special events, corporate meetings, and rental houses.
Powered by a 96 kHz, 54-bit float-point FPGA mixing engine that utilizes 96 kHz / 32-bit AD/DA converters, the Sonicview 24XP provides 1st-class sonics with ultralow latency performance. Best of all, the hardware mixing surface and mix engine operate independently of each other for a highly stable and continuous audio workflow.

The Sonicview 24XP features 24+1 motorized faders and three 7" touchscreen displays, as well as 24 XLR inputs, each with TASCAM's HDIA preamps for high-definition recording and playback.
Channels 17-24 also feature balanced 1/4" inputs, while inputs 15 and 16 include 1/4" inserts. For outputs, the mixer includes 16 XLR outputs, plus XLR monitor outputs, as well as 1/4" and 3.5mm headphone outputs.
Each input channel includes 11 processing functions including trim, HPF, 4-band EQ, dynamics, and more.
There are four stereo multi-effects processors available to add that special sauce to your mix.
The mixer is equipped with Dante I/O, Ethernet, and a GPIO connection for events and relay applications.
The Sonicview ships with the IF-MTR32 multitrack recording card preinstalled.

- FPGA Mix Engine + 32-Bit / 96 kHz AD/DA
- 3 x 7" Touchscreens + Motorized Faders
- 24 HDIA Microphone Preamps
- 24 XLR Mic/Line Input Channels
- 8 x 1/4" Line Inputs + 2 x 1/4" Inserts
- 16 XLR Bus / Outputs
- 11 Processing Functions per Input
- Including EQ, Dynamics, Filter and More
- 32-In x 32-Out USB and SD-Card Recording
- Four Stereo Effects Engines

Download

Download (0)

Mixer
____________________
Max I/O Capacity: 52x Input / 32x Output (with Optional Hardware)
Number of Analog Input Channels: 24 (24 Mono / 4 Stereo)
Number of Mic Preamps: 24
Number of Analog Output Channels: 16
Mix Routing:
- 1x Main LRC
- 4x Mono Subgroup
- 4x Mono Aux Send
Groups: 8x DCA Group
Presets: No
Display: Main Display: 7" LCD Touchscreen
Faders & Level Adjustment: 25x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Meters: Main Meter: 2x 24-Segment LED

Signal Processing
____________________
Input Pad: -20 dB
Input Polarity: Normal/Reverse
Dynamic Processing:
- Input Channels: Compressor, Gate
- Buses, Master: Compressor
EQ:
- Input Channels: 4-Band Parametric
- Output Buses: 31-Band Graphic | 4-Band Parametric
Graphic EQ: Yes
Filters: Input Channels: High-Pass
Solo/Mute: Solo, Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects: 4x Stereo Effect (Type Unspecified)
Audio Delay: Yes
Automatic Mic Mixing: No

Digital Audio
____________________
Sample Rates: Up to 96 kHz
Bit Depth: 32-Bit

Connectivity
____________________
Analog Inputs:
- 24x XLR 3-Pin Balanced Mic/Line Input
- 8x 1/4" TRS Balanced/Unbalanced Line Input
- 2x 1/4" Unbalanced Insert Insert
- 1x XLR 3-Pin Balanced Talkback Input
- 1x DB-25 25-Pin Alt Input
- 2x Stereo RCA TS Stereo 2-Track Input
Analog Outputs:
- 16x XLR 3-Pin Balanced Main/Bus Output
- 2x XLR 3-Pin Balanced Monitor Output
- 1x 1/4" TRS Headphone Output
- 1x 1/8" / 3.5 mm TRS Headphone Output
Phantom Power: +48 V
Digital I/O:
- 1x RJ45 Ethernet Input/Output (Network)
- 2x RJ45 Dante Input/Output (I/O, Network)
MIDI I/O: No
USB I/O:
- 1x USB-B (Host Connection)
- 1x USB-A (2-Track Record, Audio Playback, External Memory)
Expansion Ports: 1x I/O Card
Wireless: No
Mobile App Compatible:
Yes: iPadOS Only
App Name: Sonicview Control
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
External Display I/O: No

Compatibility
____________________
OS Compatibility:
- Computer: Windows 10 or Later / macOS 10.15 to 12
- Mobile: iPadOS Only
OS Compatibility:
- Windows 10 to 11 (64-Bit Only)
- macOS 10.15 to 12 (64-Bit Only)
- iPadOS
Mobile Device Compatibility: iPad

Power
____________________
Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical
____________________
Rack Mountable: No
Dimensions: 27.2 x 9 x 21.4" / 690.8 x 228.1 x 544.4 mm
Weight: 39.7 lb / 18 kg
