VIRGIL OB

Name: VIRGIL OB
Brand: Glensound
SKU: VIRGIL OB
Price: 709.24 EUR
Availability: OutOfStock

Glensound

VIRGIL OB Dante/ AES67 Headphone Amplifier With Local Analogue Outputs

go to the technical sheet

€ 709,24

€ 659,76 VAT excl.

Available in 11 days

Manuale: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

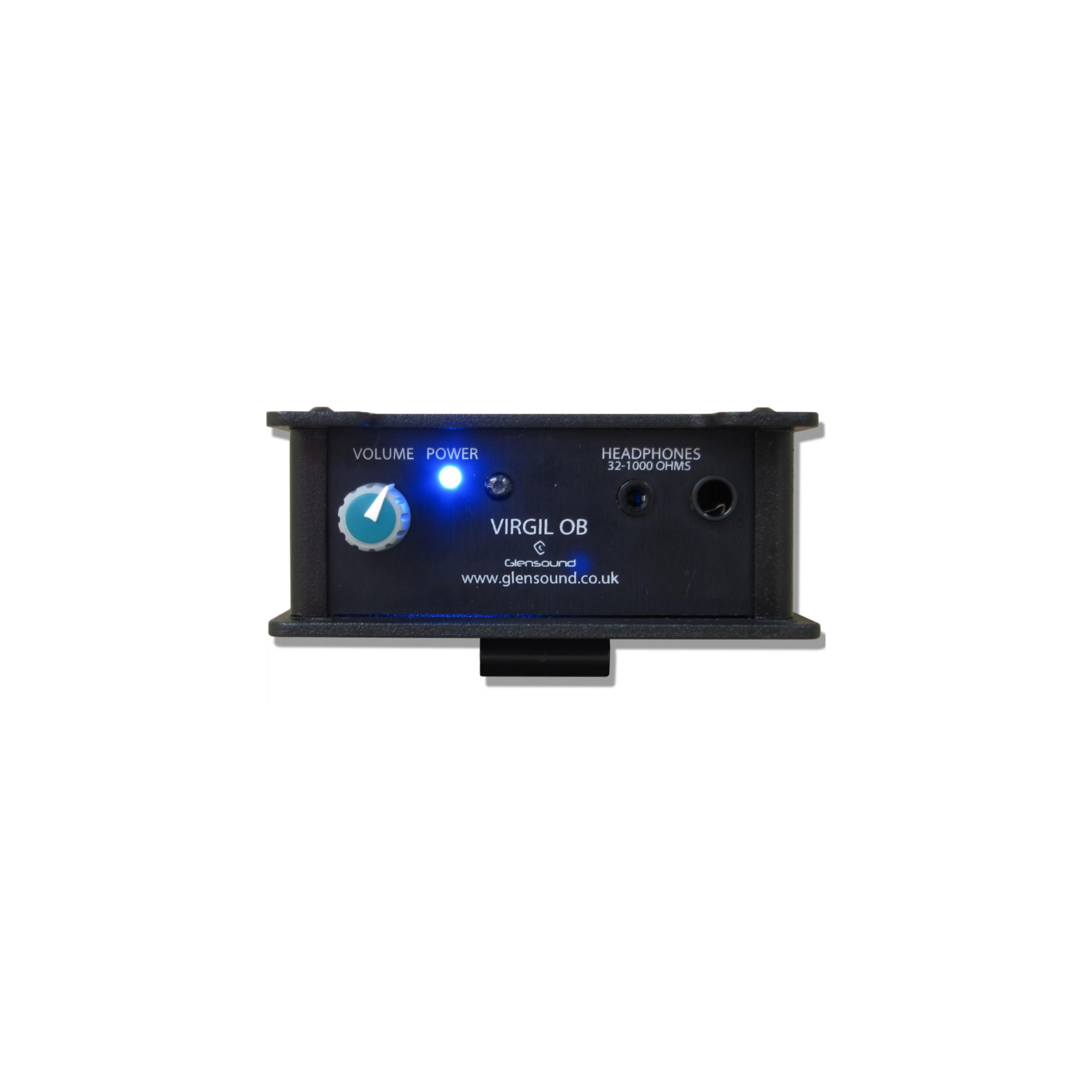

Virgil was the Roman poet who guided Dante through Hell and Purgatory, the Glensound Virgil OB is a clever little headphone amplifier for providing crystal clear audio into studio & broadcast headphones.

Packaged in a small & robust format and designed for outside broadcast & theatre applications wherever a headphone circuit or analogue output is required, the Virgil OB provides a simple interface between Dante / AES67 network audio systems and users headphones or other analogue audio equipment.

The Virgil OB encompasses our unique headphone amplifier circuit which automatically provides the correct output level to match the impedance of the attached headphones (to produce the same volume high impedance headphones require a much greater output level than low impedance).

Audio Mixer

Audinate

Dante Virtual Soundcard

€ 95,87 VAT included

Available in 19 days

Download

Manuale

Download (264.33KB)

AUDIO

Headphone Impedance: 32 to 1000 Ohms (auto output level to match impedance)
Maximum Headphone Output: +15.8dB into 600 Ohms
Headphone Frequency Response: >=-0.1dB 22Hz to 22kHz
Headphone Noise: -74dB @ lineup (residual noise)
Headphone THD + Noise: 0.008% @ 1kHz (ref = +8dBu)
Headphone Volume Pot Range:
+10dB to -20dB (standard)
+10dB to Off (to special order)
Output Power: 1 Watt
Headphone Jacks: 1 x 6.35mm (1/4") and 1 x 3.5mm Stereo Sockets
Suitable for both stereo & mono headphones
Audio Inputs: 2 off, 1 routed left, 1 routed right
Balanced Output Impedance: =Maximum Balanced Output Level: +18dBu
Digital Line Up: -18dBFs = 0dBu
Balanced Output Frequency Response: >=-0.1dB 22Hz to 22kHz
Balanced Output Noise: -74dB @ lineup (residual noise)
Balanced Output THD & Noise: 0.008% @ 1kHz (ref +8dBu)

OTHER

Dante/ AES67 Network Interface:
Sample Frequency: 48 - 96kHz
Resolution: 24 bit
Dante V4 DDM Certified
Dimensions: 42 x 101 x 103mm (H x W x D)
Weight: 200g
Power Input: Power Over Ethernet (PoE)
Power Consumption:
