SLXD24EB58-J53

SLXD24EB58-J53

Shure

Digital UHF Hand-Held Transmitter J53(562 - 606 MHz)
go to the technical sheet
  • -2.5%
Save 2.5%
€ 909,72

€ 846,25 VAT excl.

€ 933,05
Available in 14 days
Not sure if this is the right product for you? Talk to a consultant

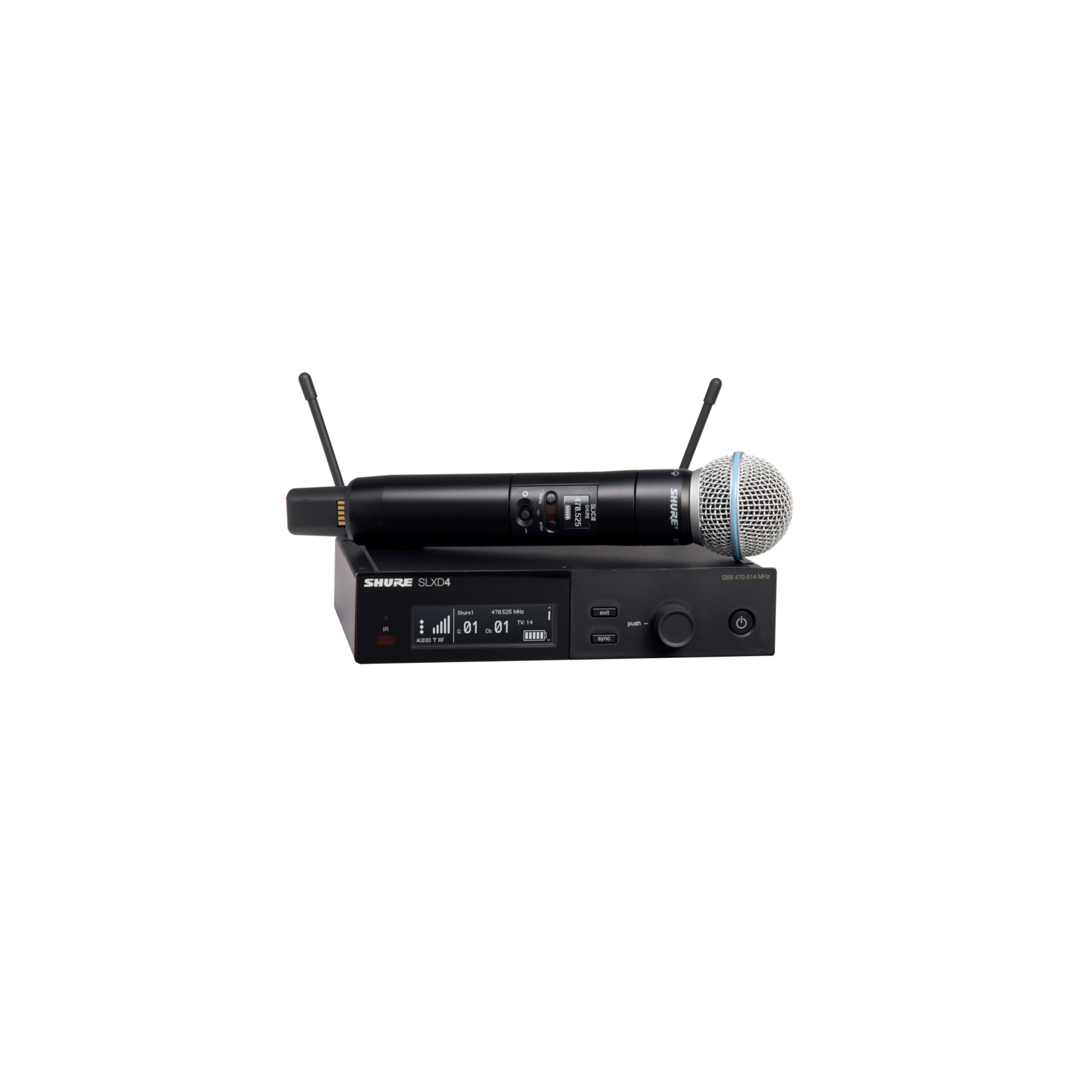

The SLXD24/B58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/B58 handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

Features
Extended frequency range from 20 Hz to 20 kHz (depending on microphone)
120 dB Dynamic range
Digital Predictive Diversity
Up to 44 MHz switching bandwidth (depending on region)
Up to 32 channels per frequency band (region dependent)
Up to 12 compatible channels per 8 MHz bandSimple and fast frequency setup of transmitter and receiver via "Scan and Sync" function
Up to 8 hours of battery life with two AA batteries or separately available Shure SB903 lithium-ion battery
Technical Data
SLXD4E Receiver
Suppression of side waves: >75 dB (typical)
Connection: BNC
Input impedance: 50 O
Level range: -18 dB to +42 dB in 1 dB steps
Output impedance: Impedance: 6.3 mm jack: 1.3 kO (670 O unbalanced) / XLR (Line): 400 O (200 O unbalanced) / XLR (Mic): 150 O
Maximum output level: Jack: +15 dBV / XLR (LINE setting): +15 dBV / XLR (MIC setting): -15 dBV
Frequency range: 562 - 606 MHz
Mic/Line switch: 30 dB attenuation
Protection against phantom power: yes
Network interface: 10/100-Mbit/s Ethernet interface
Network addressing: DHCP or manual IP address
Maximum cable length: 100 m
Power supply: 15 V DC at 600 mA
Housing: Galvanized steel
Dimensions (WxDxH): 197 x 152 x 42 mm
SLXD2 BETA58A Handheld Transmitter
Maximum input level: 8.2 dBV
Antenna type: Integrated 1-band helix antenna
Occupied bandwidth: 562 - 606 MHz
Modulation: Proprietary Shure digital modulation
Transmission power: 1 mW/10 mW
Type: dynamic microphone
Frequency response: 50 Hz - 16 kHz
Polar pattern: supercardioid
Open circuit voltage: -71.5 dB (0.27 mV)
Nominal impedance: 150 Ohm
Power level: -52.1 dB
Battery type: Lithium-ion rechargeable battery or 1.5 V AA batteries
Housing: aluminium
Dimensions (diameter x length): 37 x 176 mm
Weight: 147 g
