Roland

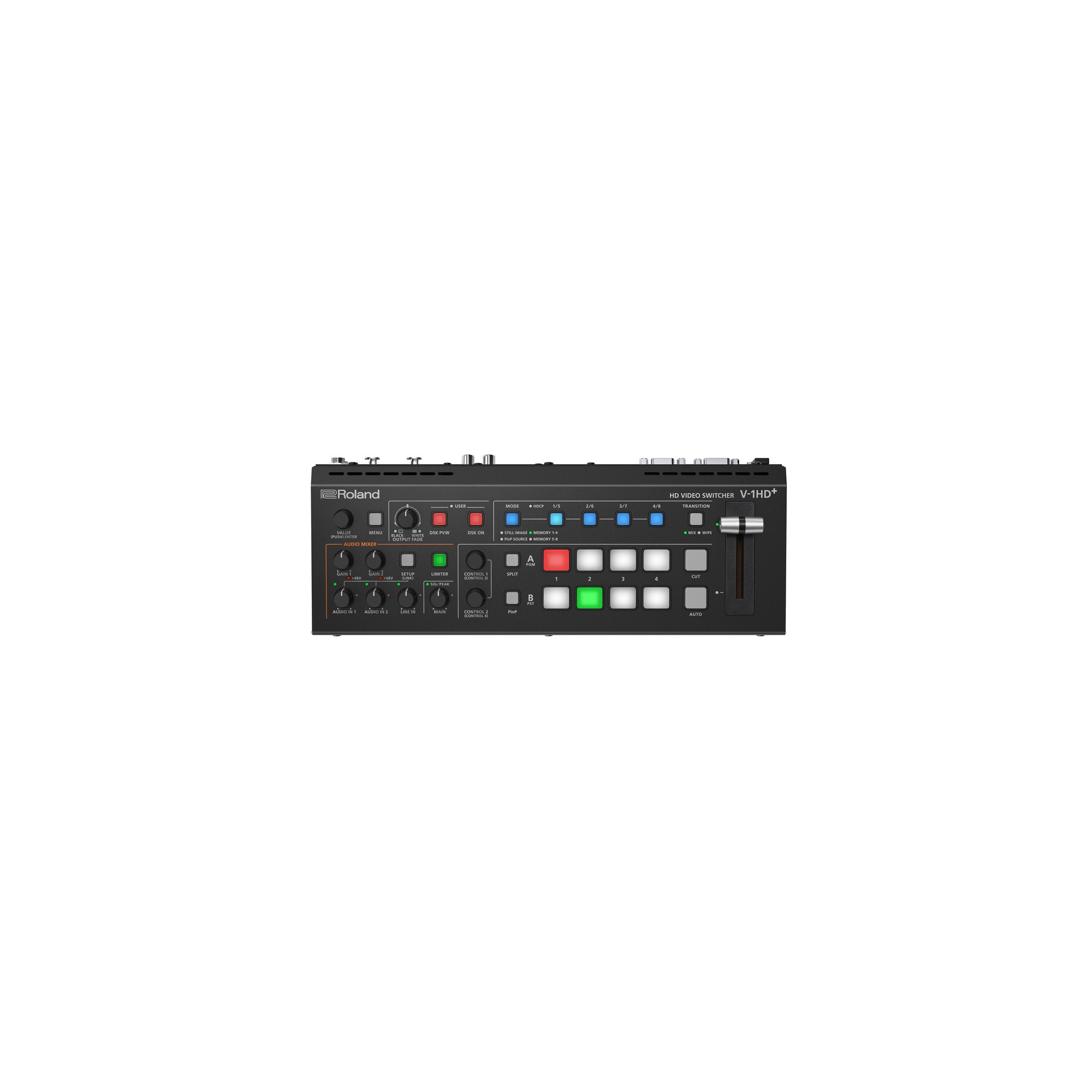

Multiformat video switcher HD 4 HDMI inputs, 2 XLR ins, RCA in
go to the technical sheet
€ 982,57

€ 914,02 VAT excl.

Available in 15 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant
The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.
Professional HD switching solution for live events, livestreaming, or both at once
Standalone video switcher and 14-channel audio mixer for single operators
Compact and portable for fast set up
Familiar interface that's quick to learn and easy to use
Technology-assisted automatic video switching
Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
Pro audio I/O with legendary Roland sound quality
Eight memory presets to recall visual layouts on cue
Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won't display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.
Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an "up-next" input preview display or expanded multiviewer with 10 windows.
Your passion for a simplified interface led our designers to add quick-action buttons for the most commonly used operations. With one-touch access to the system menu, downstream key on/off, transition type, picture-in-picture, effects on/off, and more, V-1HD+ production workflow is smooth and hassle-free.
The V-1HD+ also includes PGM and PST busses and a transition/fade bar, which are the most-recognized video switching controls in the industry—and the quickest for beginners and volunteers to learn. And with tactile audio volume knobs, signal/peak lights, and unity gain markers, it's simple and intuitive to adjust sound levels on the fly.
The V-1HD+ allows a single operator to do more than switch cameras—they can mix professional sound too. The integrated 14-channel digital audio mixer blends HDMI audio with mic and line sources, and also offers a variety of onboard effects to sweeten mixes.
With two XLR mic inputs and selectable phantom power, the V-1HD+ lets you bring pro-grade microphones into your productions, including condenser broadcast mics. There's also an 1/8-inch input for a lavalier mic or stereo audio source like a smartphone, plus another stereo input on RCA jacks. Embedded stereo audio from the four HDMI inputs can be included in your mix as well.
With the V-1HD+, there's no need for a dedicated small audio console. Distribute analog sound to a PA system via two balanced ¼-inch TRS outputs, and use embedded digital audio in the HDMI outputs to feed recorders and livestream broadcasts.

-2.5%
FLEXTALLY BP
Cerevo

FLEXTALLY BP

-2.5%
€675,53 € 658,64 VAT included
Available 1 unit in 4 Days
-2.5%
CB-BV1
Roland

CB-BV1

-2.5%
€169,32 € 165,09 VAT included
Available 9 unit in 4 Days
-2.5%
UVC-02
Roland

UVC-02

-2.5%
€308,43 € 300,72 VAT included
Available in 14 days
-2.5%
UVC-01
Roland

UVC-01

-2.5%
€285,17 € 278,04 VAT included
Available 2 unit in 4 Days


Video
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors
INPUT 1--3: HDMI type A x 3
*HDCP Supported

INPUT 4: HDMI type A
* HDCP Supported
* Multi-format Supported
Output Connectors
OUTPUT 1--2: HDMI type A x 2
* HDCP Supported
Input Formats
INPUT 1--3
720/59.94p, 720/60p *1, *3
720/50p *1, *4
1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz

INPUT 4
480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz

Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can store up to 4 files in the internal memory.
* PNG alpha channel not supported.
Output Formats
OUTPUT 1--2:
720/59.94p *1, *4
720/50p *1, *5
1080/59.94i *2, *4
1080/50i *2, *5
1080/59.94p *3, *4
1080/50p *3, *5
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 50 Hz
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Audio
Audio Processing
Sample rate: 24 bits/48 kHz
Audio formats
Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors
INPUT 1--4: HDMI Type A x 4
AUDIO IN 1--2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
LINE IN: RCA phono type
MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
Output Connectors
OUTPUT 1--3: HDMI Type A x 2
AUDIO OUT L, R: 1/4-inch TRS phone type
PHONES: Stereo miniature phone type
Nominal Input Level
AUDIO IN 1--2: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN: -10 dBu (Maximum input level: +10 dBu)
MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)
Input Impedance
AUDIO IN 1--2: 10 k ohms
LINE IN: 15 k ohms
MIC/AUX IN: 10 k ohms
Nominal Output Level
AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)
PHONES: 72 mW + 72 mW (32 ohms load)
Output Impedance
AUDIO OUT L, R: 600 ohms
PHONES: 10 ohms
Audio Effects
Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output
Others
Other Connectors
USB MEMORY: USB A type (for USB flash drive)
REMOTE: USB B type (for remote control)
RS-232: DB-9 type (male, for remote control)
TALLY: DB-9 type (female, for TALLY output)
Other Functions
Preset memory (8 types)
Panel lock function
EDID emulator
Auto switching
Auto input detect
Power Supply
AC adaptor
Current Draw
2.1 A
Power Consumption
25.2 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
316 (W) x 121 (D) x 65 (H) mm
12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches
Weight (excluding AC adaptor)
1.4 kg
3 lbs 2 oz
Accessories
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord

* 0 dBu = 0.775 Vrms
