Blackmagic

9338716001327

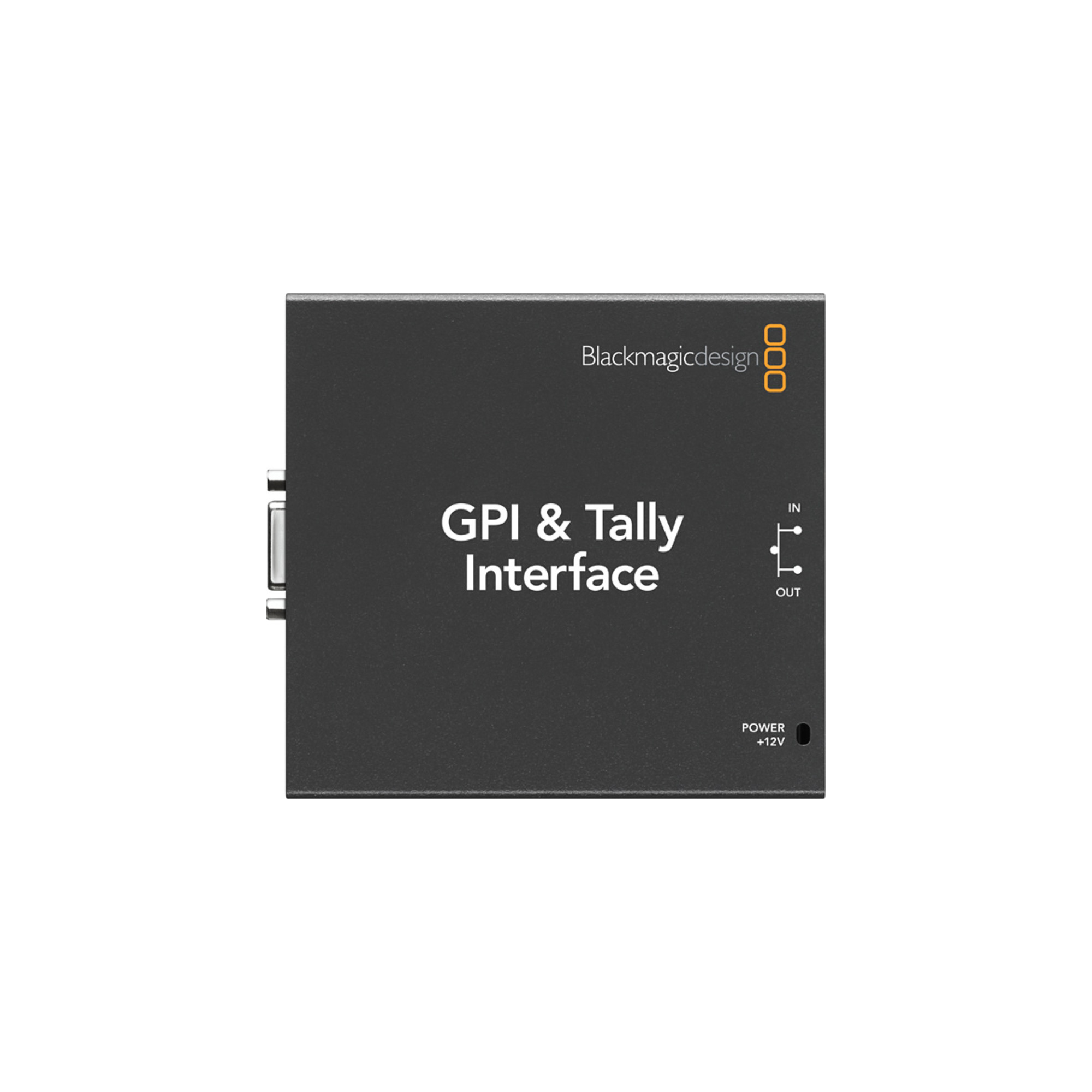

GPI & Tally Interface for ATEM Production Switchers
go to the technical sheet
₦ 1,064,571.00

₦ 990,299.00 VAT excl.

Available in 11 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

° Displays tallies for indicating the on-air status of video signals
° 8 contact closure inputs & 8 contact closure outputs
° Compatible with ATEM switchers and Videohub routers
° Connect to multiple interfaces offering enhance flexibility in operation

VGA to VGA 02MM
Adcom Cable

VGA to VGA 02MM

₦ 15,801.00 VAT included
Available 4 unit in 4 Days

Connections
Contact Closure: 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
Inputs: Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
Outputs: Mechanical relay contact closure to ground (maximum 30 V @ 1 A)
Ethernet: 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates

Extras
Software Included: Configured via ATEM Switcher utility
Firmware Upgrade: Firmware built into software driver. Loaded at system startup or via updater software
Operating System: Microsoft Windows 7 and Apple Mac OS X
Power Supply: 12 V power supply included with international socket adapters for all countries

Packaging Info
Package Weight: 0.92 lb
Box Dimensions: 5.7 x 5.45 x 2.55"

1x Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
1x Power Supply 12 V
