HVS-490 Package B

Main unit - 2 ME (virtual 4 ME) - 16 IN exp. Up to 40 with FS- 8 OUT
° exp. Up to 16- 2 HDMI
° 16 DVE 2.5D - 4 DVE 3D optional- 12 KEY
° Multiviewer
° 4 CH Still/Clip (w/KEY) memory - expandable to 8
° 3G/4K ready
° Redundant Power Supply

HVS-490 switcher inherits key technology of HVS-2000 and HVS-390HS while opening the door to even more affordable 4K production. Exclusive MELite™ technology extends the switcher's 2 M/Es to offer 6 M/E performance.*1 Expand your switching capabilities even more by assigning FLEXaKEY™ or feature rich 2.5D DVE, for compositing with up to 12 keyers. Take advantage of this truly broad range of switching in live production.

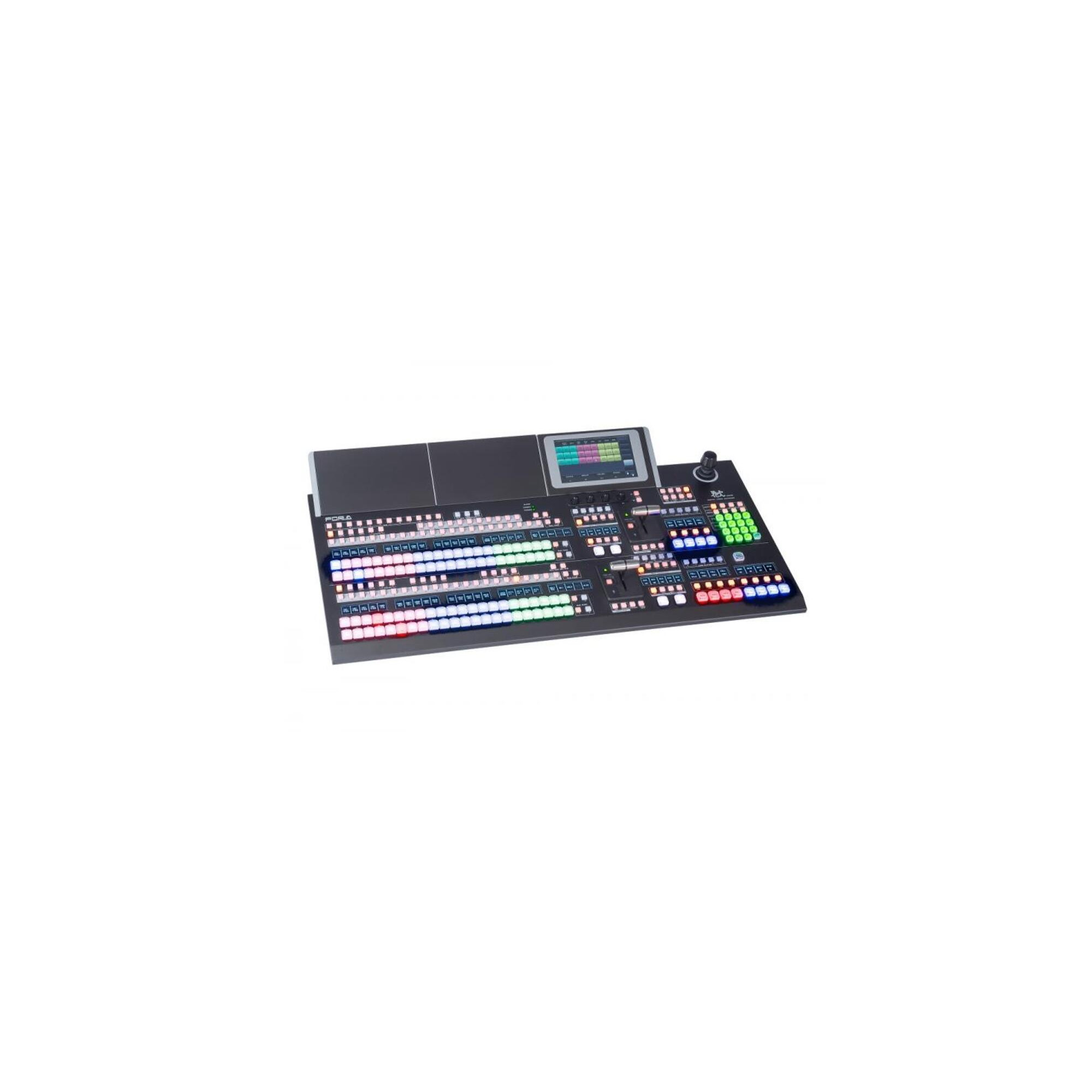

For-A HVS-490 2M/E Type B "Hanabi" Six M/E Switcher HD 1.5G and 3.0 G standard operation (STD with 2 Full + 2 Melite) with HVS-492WOU 22 Button Control panel, 16 HD/SD-SDI inputs, 9 outputs (16 HD/SD-SDI plus 1 HDMI 2.0b), Frame Synchronizer on each input, , Maximum 40 Inputs, 22 Outputs (via 3 option slots), Per Full M/E- 4 Keyers with quad chroma Key/2.5D DVE,. System includes 4 FLEXaKEY™, 4 image stores/900 frame clip player option), Triple 16 channel built In Multi Viewer (48 image windows), Macro Function, PC and web based application interface, 18 Aux buses, 2 pair capable MELite® transitions, standard 16 channels of REAL DVE Package include redundant power supplies for the main control panel and main frame.

Live staging
The HVS-490 has an incredibly powerful feature set that makes it ideal for live staging and event applications where systems must be set up quickly and temporarily. Event memory and macro functions make it easier to prepare for performances. MELite eliminates the need to have several switchers ready for multi-monitor staging, greatly reducing the equipment required. It's essential to keep production simple and easy to prevent mistakes and help operators focus on staging.

Mobile OB and Up-Link production trucks
With its robust feature set, the HVS-490 is perfect for small mobile video production or Up-Link where space is limited. The HVS-490 switcher offers a rich feature set perfect for live or recorded production. With integrated frame synchronizers and multi viewer, the HVS-490 can reduce the amount of equipment required in the truck. Using multiple FOR-A control panels, the system can also provide an environment for several operators each in charge of separate tasks - for example one for the main event and a second for a web cut of the same event.

Features:
° Frame Synchronizer
° External Interfaces
° Re-sizing Engine
° Macro Function
° Audio playback support
° Event Memory/User Button
° GUI Control Function
° 4 Still/Clip Stores
° Color Corrector Function
° Sequence Function
