KT-KD60

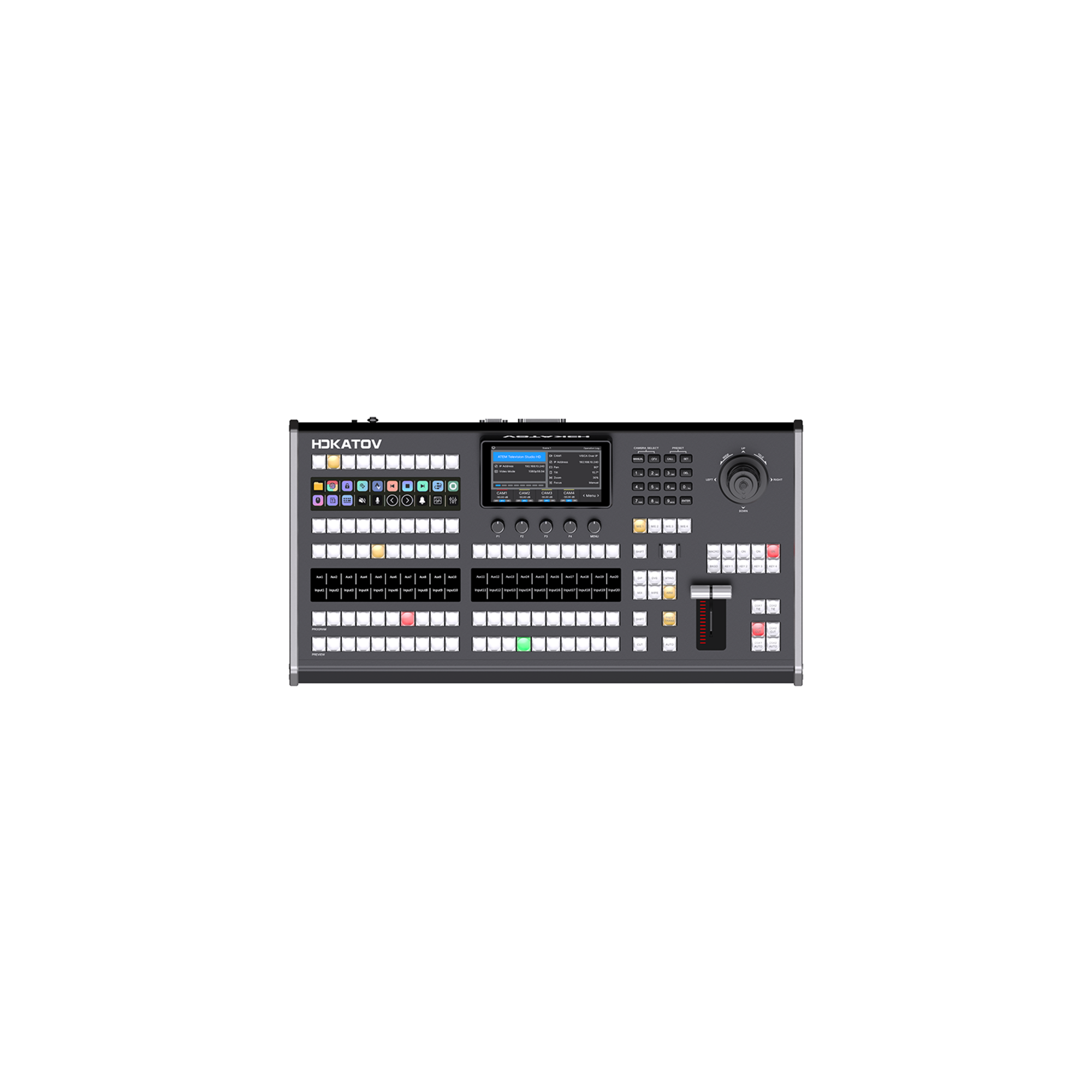

Kato-Vision Multifunctional Switchboard Control Panel, LCD display 5.5"

Integrated hardware design
An easy-to-use fully embedded system with a streamlined structure, integrates director switching, audio adjustment and special effects transitions.

5.5" LCD display
Comes with a built-in 5.5-inch LCD color screen, featuring a new UI menu design for clear parameter and status display.
Switcher IP settings can be modified through the on-screen menu.

Multi-functional system control integration, tri-color crystal buttons
Supports basic corresponding functions of BMD ATEM Constellation and Television Studio series 1 M/E - 4 M/E products, with red, green, and orange-yellow tri-color crystal buttons.
The buttons are surrounded by LCD displays indicating their functions.

High quality aluminum alloy T-BAR
Aluminum alloy high-quality T-BAR slider, combined with a nine-level LED light progress bar, the ergonomically designed T-shaped rod control can perfectly integrate a part of the transitional live performance.

Convenient and fast camera control functions
4D joystick PTZ control, supports VISCA Over IP control protocol.

Brand new N-Keys software customizable keys, more effects
New custom function upgrade, various function key layouts can be set according to usage scenarios, 20 keys can be customized with popular functions output through N-Keys software plugins for more gameplay options, 60 keys support custom signal source settings, N-Keys can set multiple custom key function layout options, intuitive LCD display screen, clearly showing the current key function.

Supports up to 80 channels of video signal source live switching
ATEM can support conventional 40-channel PGM+40-channel PVW live broadcast switching, and supports PGM and PVW selection of up to 80 signal sources through SHIFT key combination.

Custom knob adjustment function
Customize knob adjustment function through N-Keys software and Web backend interface, supporting multi-channel audio control, camera image effect settings.

Supports wired Tally interface and optional wireless Tally output functionality
The unit is equipped with a built-in DB25 Tally interface and ANT antenna interface.
The wired Tally supports a maximum of 12 Tally signal output functions, while the wireless Tally supports up to 16 Tally lights, with support for both red and green indicators.

Supports LAN interface connection for simple and convenient connectivity
Supports LAN connection to BMD ATEM Production Switchers and N-Keys software.
