Pearl-2

Epiphan Pearl-2 4K with additional license

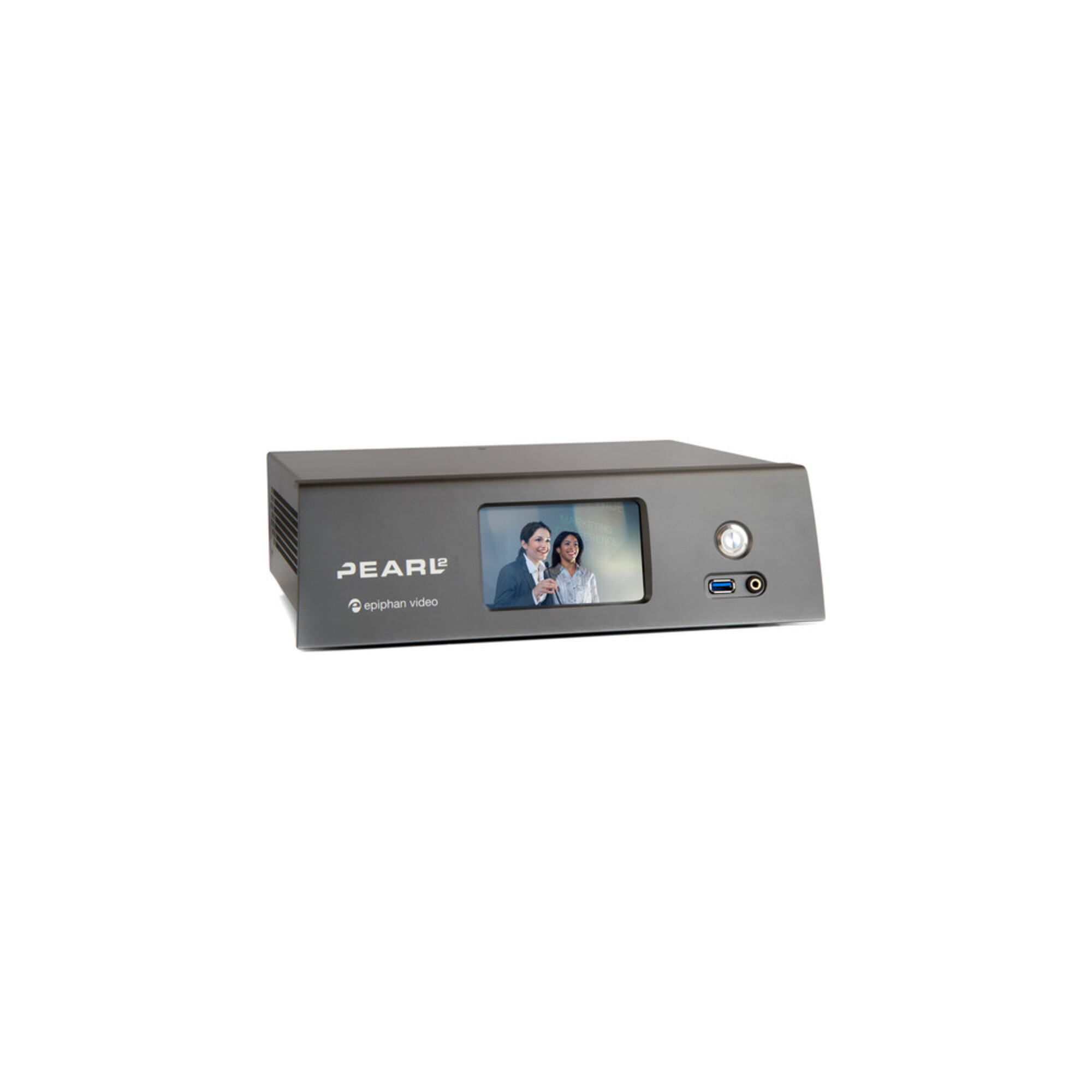

The Pearl-2 4K with additional license Rackmount Video Production Device from Epiphan is a production video mixer that lets you create visually appealing live video programs by combining, encoding, switching, and recording up to six video sources and two audio sources. Simple to use with a web-based portal for initial configuration, you get a drag and drop interface to create completely customizable layouts for your live stream. You can choose to keep Pearl-2's default encoding settings, or customize them to meet your exact needs. Control the video recorder and video switcher capabilities via the touchscreen or the tablet-friendly Epiphan Live interface. It features a 2 RU rackmount server with all the same functionality as the portable Pearl-2, but designed for installation and operation in a rack.

Reliable, simple live streaming with Pearl-2's 4K integrated live video production workflow
Designed for installation in a rack
Works with video sources from SD to 4K (separate add-on required for 4K)
Connect up to six sources at once to encode and stream one 4K Ultra HD program, or up to six 1080p Full HD programs
Use any combination of your video sources connected to the HDMI, 4K HDMI, or 12G-SDI video input ports, or from IP cameras over your network
Sixth generation Intel i7 processor
Use the touchscreen or Epiphan Live to preview and change the live content in your video programs
See changes immediately in your live video stream, and on displays connected to Pearl-2's 4K HDMI video output ports
Simultaneously live stream to YouTube, Facebook, and any other CDN or video portal
Use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes
Control your streaming and recording from any mobile device or computer on your local network
Capture embedded HDMI and SDI audio, or use the XLR/RCA ports for professional level audio from mixing consoles and sound equipment
Built-in attenuation and gain adjustment
Design your own custom layouts, including picture-in-picture, by using the drag and drop editor in Pearl-2's web-based Admin panel
Combine, crop, and scale up to six video sources
Customize the video source completely with backgrounds, overlay images, text, and timestamping
Hold hundreds of hours of HD recordings on the 512GB solid-state hard drive
Configure automatic file transfer to a networked storage or local USB drive via USB 3.0, to ensure your files are always protected
Connect your headphones and monitor audio using the front-mounted 3.5mm audio jack and on-screen VU meter
Send the content to a larger confidence monitor with Pearl-2's two 4K HDMI video output ports
Use Pearl-2's built-in streaming server to share via unicast or multicast stream to up to 50 viewers with popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP, and SAP
Publish your live video stream to a large audience using an enterprise streaming server or CDN using RTMP or RTSP
Supported CDNs including Facebook Live, YouTube, Wowza, Livestream, Akamai, Ustream, and more
Stream your final program output, in any desired resolution, while also recording high quality ISOs for post-processing
Integrates easily with content management systems (CMS) and with learning management systems (LMS) such as Blackboard, Kaltura, Mediasite, and Moodle
