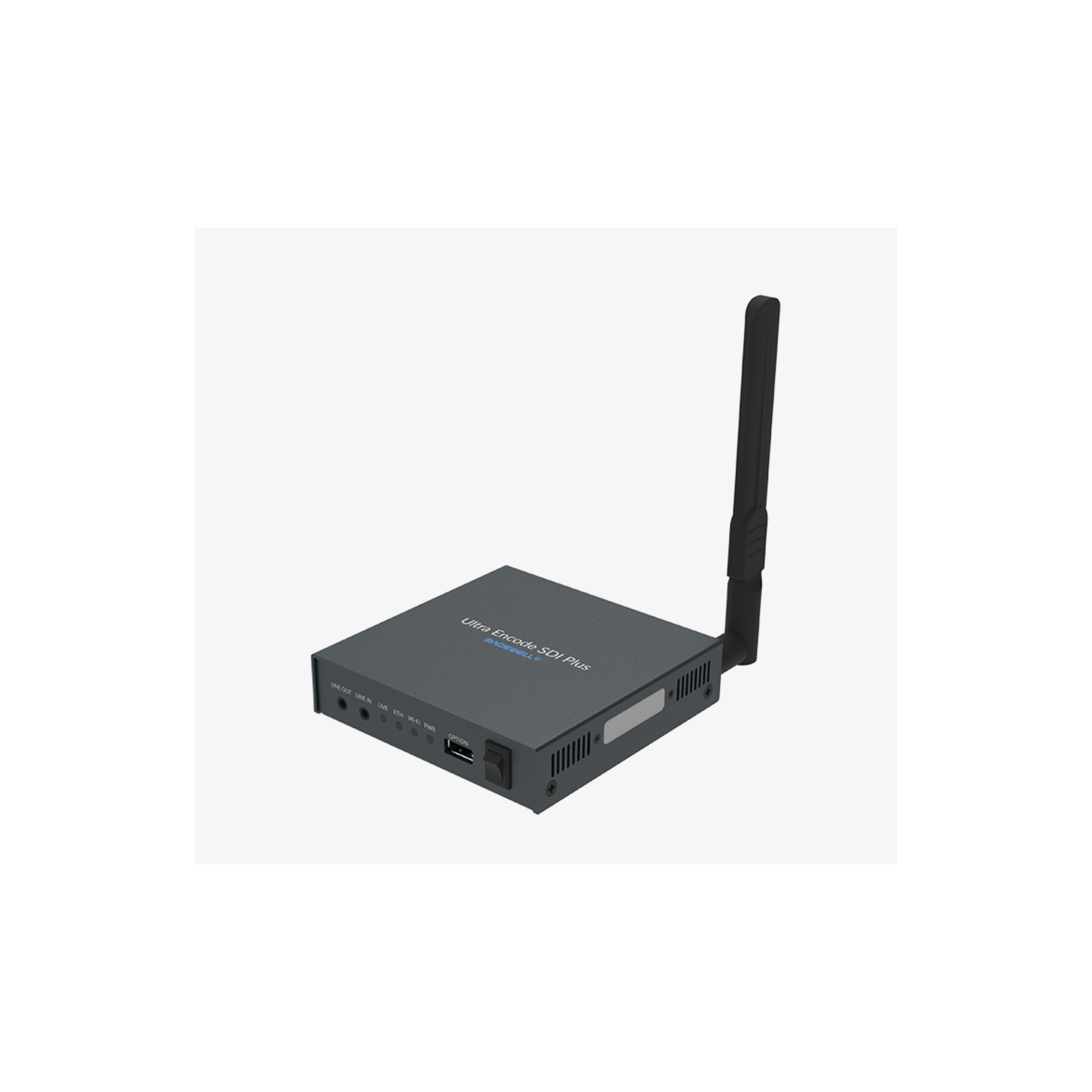

Ultra Encode SDI Plus

Name: Ultra Encode SDI Plus
Brand: Magewell
SKU: Ultra Encode SDI Plus
Price: 1044899 NGN
Availability: OutOfStock

Magewell

EAN: 6936572401508

Universal live streaming encoder, remote contribution/AV over IP SDI 3G 53160

go to the technical sheet

₦ 1,044,899.00

₦ 971,999.00 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Magewell Universal encoder for live streaming, remote contribution and AV over IP. 1-channel 3G SDI with loop-through, plus additional line input/output.

- Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
- Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
- Control via web interface or optional Control Hub centralized management software
- PoE available
- Control lights for NDI® HX3
- Remote control via web GUI and Control Hub
- Accepts management via HTTP API

° Input
Support for input and loop-through signals up to 4096x2160 30 fps
16-channel SDI embedded audio input and loop-through
3.5mm LINE IN audio input

° Encoding
Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
Bitrate Maximum: 62Mbps (NDI® HX3), 32Mbps (Others)
Support for H.264/HEVC video encoding
Provides video aspect ratio conversion, rotation and image cropping for main and sub streams
8-channel AAC encoding and audio channel mapping
Side-by-side 3D video encoding

° Streaming broadcast
Natively supports Facebook, Twitch, YouTube and WOWZA
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
Allow 6 simultaneous sessions on multiple streaming protocols
Support for streaming scheduling

° Recording
Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
Automatically upload recorded files to the platform Remote file storage
Video recordings in MP4, MOV or TS format
Normal recording and loop recording are supported
Support for recording schedule

Web UI
° Access the Web UI via PC and smartphone
° View the device status in real time
° Preview the encoded video
° Set input sources
° Customize encoding parameters
° Manage streaming destinations, start/stop streaming, view streaming status
° Manage recording tasks and recorded files
° Set up to 8 overlays for each stream, including text, image and clock
° Update firmware
° Support Magewell Control Hub registration for centralized management
° Support Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers

USB

Lindy

USB 3.0 cable

₦ 33,485.00 VAT included

Available 8 unit in 4 Days

Input & Loop-through
° Video:
Supported Standards: SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS (ST 425)/6G (ST 2081)
° Typical resolution/frame rate:
&emsp,4096x2160p 23.98/24/25/29.97/30
&emsp,2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
&emsp,1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
&emsp,1280x720p 25/29.97/30/50/59.94/60
&emsp,720x576 25p/50i (PAL SD)
&emsp,720x480 29.97p/59.94i (NTSC SD)
° Color sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4
° Audio:
SDI embedded audio: 16-Channel, 24-bit, 192kHz sample rate
Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

Encoding
Video:
° Bitrate: NDI® HX3: up to 62.0Mbps, down to 1.5Mbps | Others: up to 32.0Mbps, down to 256kpb
° Dual-stream encoding: main stream and sub stream
° Main stream:
- Resolution/frame rate:
&emsp,4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5
&emsp,2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
° Native CEA-608/608 over 708 captions
° Sub stream
° Supports enabling/disabling sub stream
° Resolution/frame rate:
&emsp,1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,640x48050p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
&emsp,480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5

° H.264/H.265 (HEVC) Codec permits:
System timecode or RP-188 standard timecode for SEI Message setting
H.265 (HEVC) SEI message supports carrying interlacing signal mark
Video aspect ratio conversion
Image rotation: 0°, 90°, 180°, 270°
Cropping
Output 3D video
° Audio:
Encode up to 4 audio streams
Up to 8 channels can be selected for mapping when SDI input carries more than 8 audio channels
Supports mapping between source channels and encoded audio channels
Contains 1 x 8-channel stream and 3 x 2-channel streams
° Bitrate: 256/192/128/96/64/48/32/16 kbps
° Output source embedded audio and line in through LINE OUT

API: Provides APIs for 3rd party control system

Network Connections
Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
IEEE 802.3af PoE
Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
4G/5G USB modem (not supplied)
USB Net

Input/Output Ports
2 x SD/HD/3G BNC ports: 1 x Input | 1 x Loop-through
1 x 3.5mm LINE IN
1 x 3.5mm LINE OUT
2 x USB Type-A
