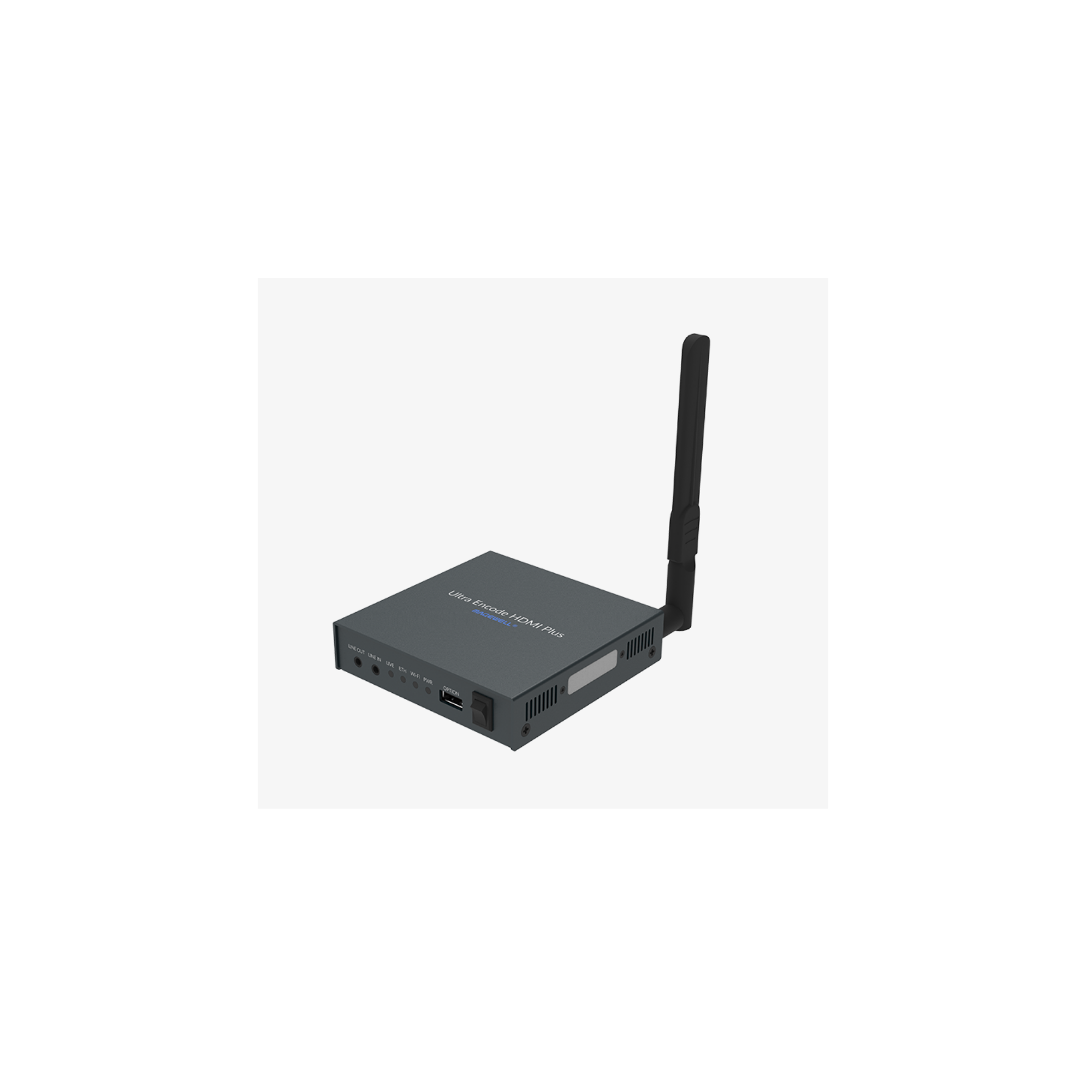

Ultra Encode HDMI Plus

Name: Ultra Encode HDMI Plus
Brand: Magewell
SKU: Ultra Encode HDMI Plus
Price: 516 EUR
Availability: InStock

Magewell

EAN: 6936572401492

Universal live streaming encoder, remote contribution/AV over IP HDMI - 53150

go to the technical sheet

€ 516,00

€ 480,00 VAT excl.

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

Magewell Universal encoder for live streaming, remote contribution and AV over IP. 1-channel HD HDMI with loop-through, plus extra Line-in/out.

- Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
- Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
- Control via web interface or optional Control Hub centralized management software
- PoE available
- Tally lights for NDI® HX3
- Remote control via Web GUI and Control Hub
- Provide HTTP APIs

° Input
Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
Input & loop through 8-Channel, 24-bit HDMI embedded audio
Input audio from 3.5 mm LINE IN

° Encoding
Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
Support for H.264/HEVC video encoding
Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
Encoding 8-channel AAC and audio channels mapping
Side-by-Side 3D video encoding

° Streaming
Natively support Facebook, Twitch, YouTube and WOWZA
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
Allow simultaneous 6 sessions over multiple streaming protocols
Support for streaming schedule

° Recording
Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
Automatically upload recorded files to remote file storage platform
Video recordings in MP4, MOV or TS format
Normal recording and loop recording supported
Support for recording schedule

Cables & Connectors

Lindy

USB 3.0 cable

€ 19,35 VAT included

Available 10 unit in 4 Days

Input
Video:
° Supports HDMI 1.4a, DVI-D
° Typical resolution/frame rate:
4096x2160 30fps 4:4:4/4:2:2
4096x2160 60fps 4:2:0
2560x1440p/2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
° Color depth: 8/10/12-bit
° Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
° Custom EDID
Audio:
HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate
Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate

Encode
Video:
° Bitrate: NDI® HX3: up to 62.0Mbps, down to 1.5Mbps | Others: up to 32.0Mbps, down to 256kpbs
° Dual-stream encoding: main stream and sub stream
° Main stream Resolution/frame rate:
4096x2160p/3840x2160p 30/29.97/25/24/23.976/15/10/5
2560x1440p/2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
° Sub stream
° Supports enabling/disabling sub stream
° Resolution/frame rate:
1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x768p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
1024x576p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
960x540p/800x600p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
640x480p/640x360p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
480x360p/480x270p 60/59.94/50/30/29.97/25/24/23.976/15/10/5
° H.264/H.265 (HEVC) Codec:
System timecode or RP-188 standard timecode for SEI Message setting
H.265 (HEVC) SEI message supports carrying interlacing signal mark
Video aspect ratio conversion
Image rotation: 0°, 90°, 180°, 270°
Cropping
Output 3D video
° Audio:
Encode up to 4 audio streams
Supports up to 8 source channels
Supports mapping between source channels and encoded audio channels
Contains 1 x 8-channel stream and 3 x 2-channel streams
° Bitrate: 256/192/128/96/64/48/32/16 kbps
° Output source embedded audio and line in through LINE OUT

Record:
Supports setting and managing recording function and tasks
Supports recording to local storage
Supports format and performance test
Automatically upload files to remote file storage platforms including FTP server, Google Drive, and Dropbox
Supports recording to external USB storage
Supported system format: FAT32, exFAT and NTFS
Supports recording to network attached storage (NFS/CIFS)
Supported system format: NFS, CIFS
Supports loop recording and normal recording
Supports saving recording files in MP4, MOV or TS format
Supports specifying a video stream and an audio stream for each recording task
Supports customizing recording file name and prefix
Supports splitting recording files by time
MP4, MOV: up to 4 hours
TS: no limit
Supports exporting or downloading files through Web UI
Supports recording scheduler

Web UI:
Access Web UI via PC and smartphone
View real-time device status
Preview encoded video
Set input sources
Customize encoding parameters
Manage streaming destinations, start/stop streaming, view streaming status
Manage recording tasks and recorded files
Set up to 8 overlays for each stream, including text, picture, and clock
Update firmware
Supports registering Magewell Control Hub for centralized management
Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers

API: Provides APIs for 3rd party control system

Network Connections

thernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
IEEE 802.3af PoE
Wi-Fi: 802.11 a/b/g/n/ac, Station and AP modes supported
4G/5G USB modem (not supplied)
USB Net

° Input/Output Ports
2 x HDMI ports: 1 x Input | 1 x Loop-through
1 x 3.5mm LINE IN
1 x 3.5mm LINE OUT
2 x USB Type-A

Storage
USB flash drive (not supplied): FAT32, NTFS, exFAT
NAS (not supplied): NFS/CIFS

Indicators
EDs indicating the status of power, input signal, streaming, Ethernet, Wi-Fi connection
NDI tally lights (preview-green, program-red)

Power Supply and Consumption
DC 5V/3A
Max power consumption: 8.68W

Form factor: 106.6mm x 106.2mm x 25mm
