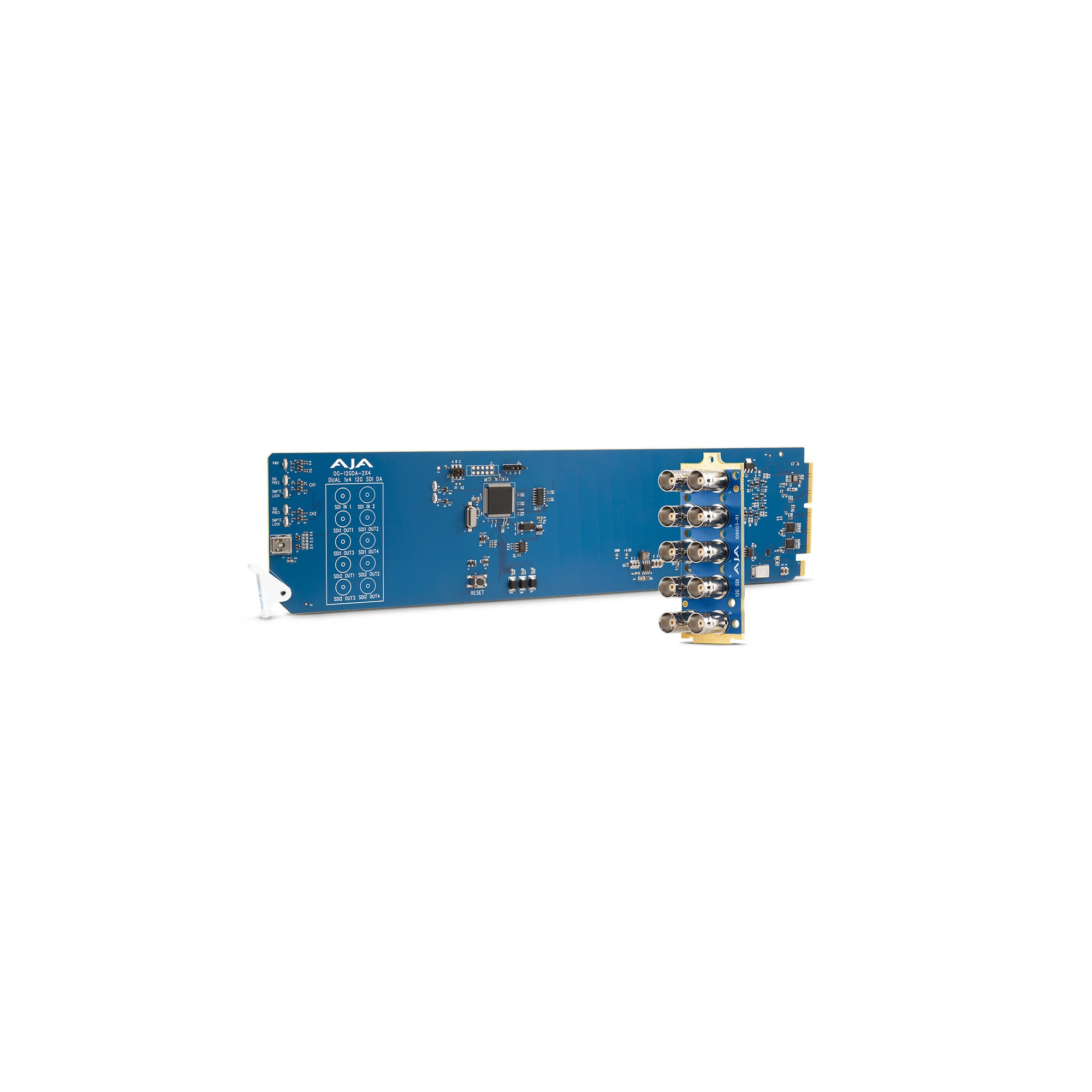

OG-12GDA-2X4
AJA
€ 1.040,46 VAT excl.

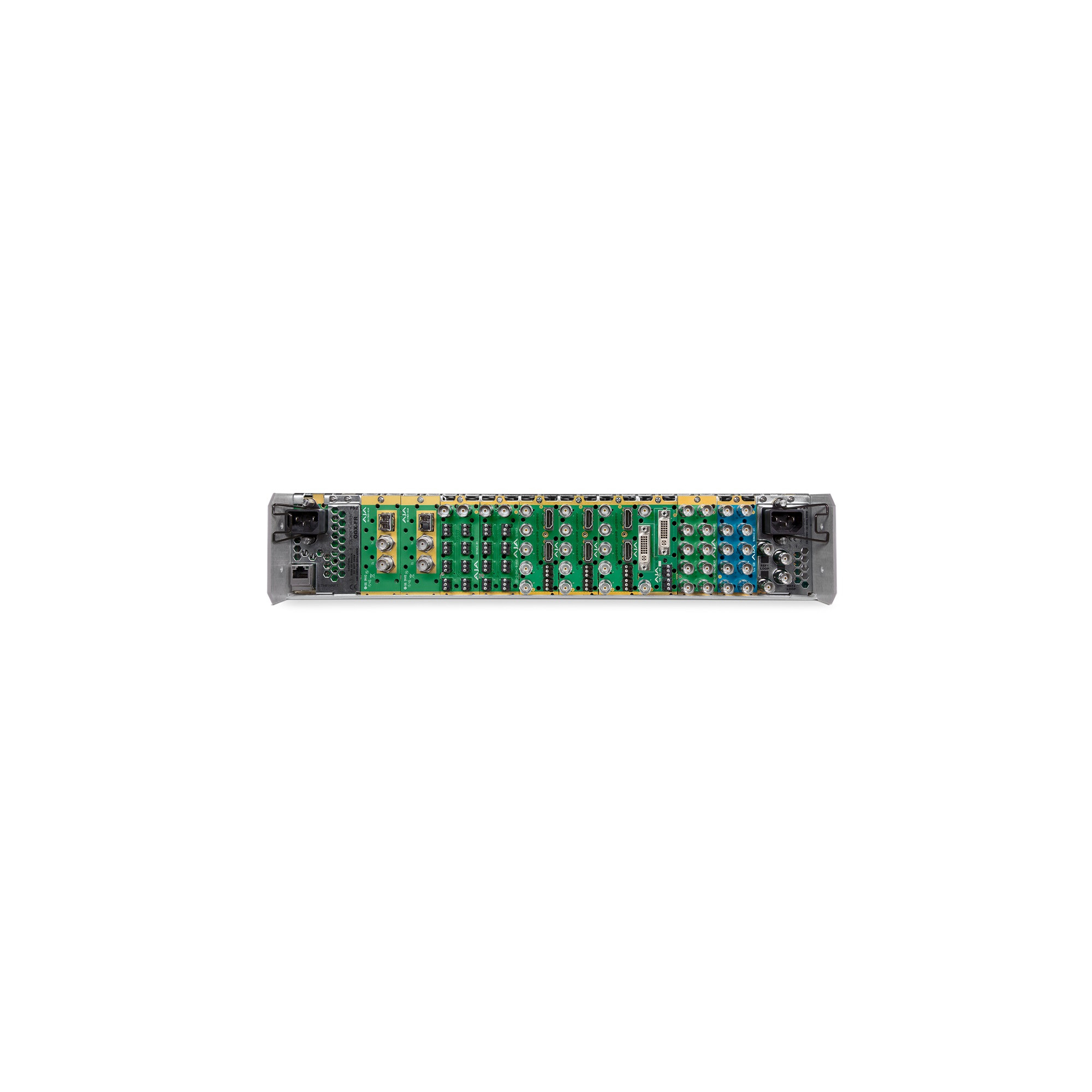

Designed for use in high density openGear 2RU frames including AJA's OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
Features
Dual 1x4 12G-SDI openGear Distribution Amplifiers
2x 12G-SDI BNC inputs
8x noninverting 12G-SDI BNC outputs
Format agnostic 270 Mbps - 12 Gbps video formats
Automatic input equalization and output reclocking
Support for HDR video
Passes embedded audio, all ancillary data including closed caption and time code
Input Present and Input SMPTE Lock LEDs
10x 12G-BNC rear connector module included
Power: 4.5 watts
Hot swappable
DashBoard Support with OGX, OG3 and DFR-8321 openGear frames
Five year warranty
Download
Video Formats
150 Mbps - 12 Gbps, format agnostic
Video Input Digital
2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital
8x 12G-SDI BNC, SMPTE-259/292/424/2081/2082, noninverting
Cable Equalization
(Belden 1694A coax)
12 Gbps, 45m
6 Gbps, 90m
3 Gbps, 140m
1.5 Gbps, 185m
270 Mbps, 365m
Reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
All other rates are passed through and not reclocked
User Interface
openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
openGear standard form factor, front slot and rear card
Two slots required for each card
Weight
0.5 lb (0.3 kg)
Power
openGear frame compatible, 4.5 watts max per card
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
