Kramer

1:4 4K@60 4:4:4 HDMI to Long-Reach DGKat 2.0 DA
go to the technical sheet
  • -2.5%
Save 2.5%
€ 1.121,85

€ 1.043,58 VAT excl.

€ 1.150,62
Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

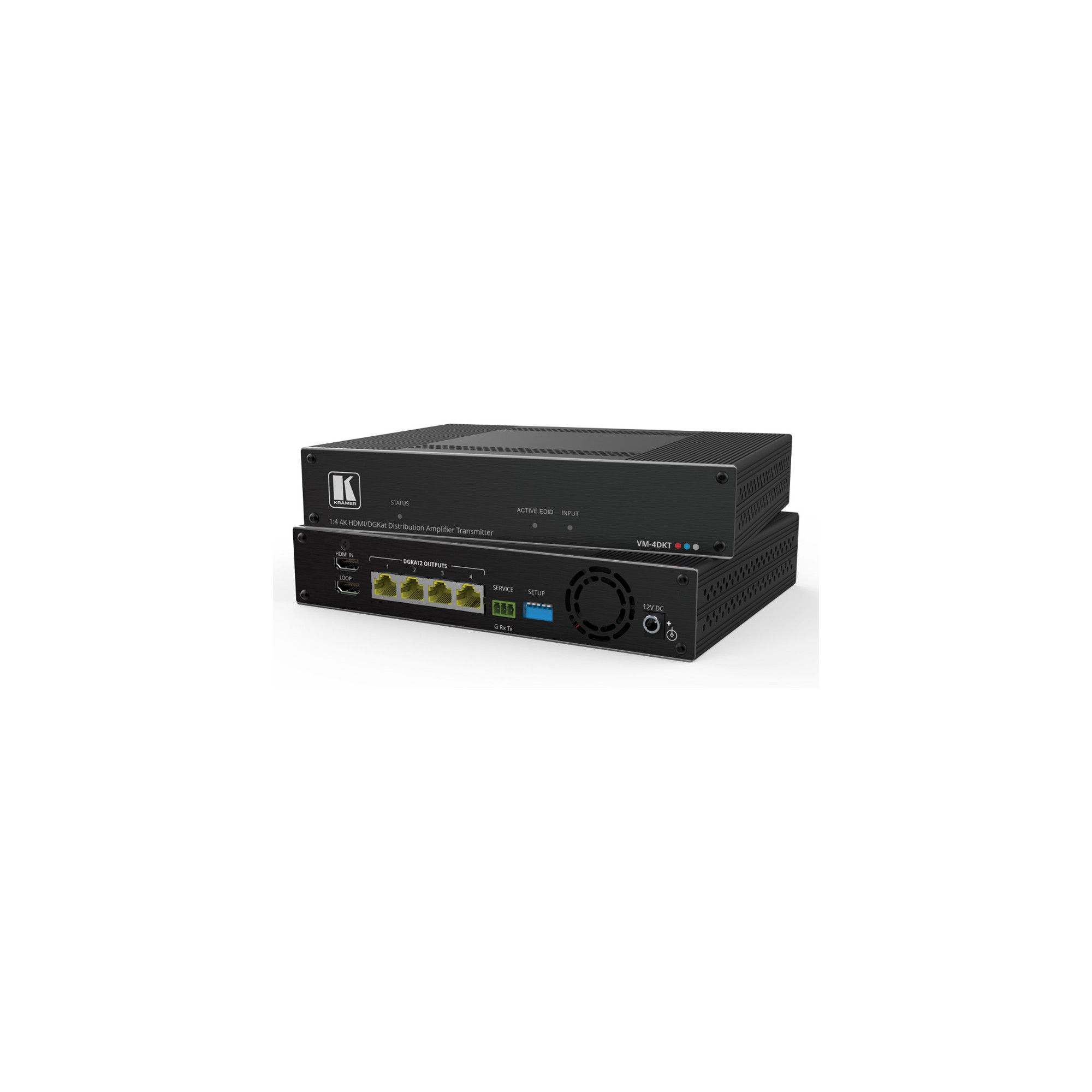

Kramer high-quality, long-reach, 4K@60Hz (4:4:4) DGKat extender distributor that converts HDMI input signals into the transmitted DGKat™ 2.0 signal and distributes it to four identical outputs, which are connected to compatible DGKat receivers.

° High Performance Extension — Professional DGKat™ 2.0 distributor transmitter for providing long-reach signals and power over twisted pair copper infrastructures. VM-4DKT employs low-level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency.
° HDMI Looping — Output mirroring allows presented content monitoring and its cascading to other connected components within the composed solution.
° HDMI Support — HDR10, HDCP 2.3, x, Dolby TrueHD, DTS-HD, 2K, and 4K as specified in HDMI 2.0.
° Multi-channel Audio Extension — Up to 8 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
° Cost-effective Deployment — Flexible use of default or connected display EDID, with locking option, to ensure proper presentation of source HDMI content on remotely connected displays.
° Easy Installation — Single twisted-pair cable for signal and power distribution. Half 19" size enables flexible and convenient mounting under table or 2 side-by-side units in a 1U rack space.

Specifications
-------------------------------

Inputs : 1 HDMI: On an HDMI female connector
Outputs : 4 DGKat: On RJ-45 female connectors for extension lines + 1 HDMI Loop: On an HDMI female connector
Ports : 1 RS-232: On a 3-pin terminal block connector
Video : Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
Max Resolution at High Compression Level : 3840x2160@60Hz (4:4:4) 24bpp
Max Resolution at Standard Compression Level : 4096x2160@60Hz (4:4:4) 24bpp
Standards Compliance : HDR10, HDCP 2.3

High Compression Reach Extension :
Using Shielded UNIKAT Cables : Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
Using Plenum HDKat Cables : Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)

Standard Compression Reach Extension :
Using Shielded UNIKAT Cables : Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

Extension Line
Signal Compression : Standard or high compression level applied to >1080p signals
Compliance : DGKat 2.0

Power
Source : 12V DC, 5A
Consumption : 2.8A

Environmental Conditions
Operating Temperature : 0° to +40°C (32° to 104°F)
Storage Temperature : -40° to +70°C (-40° to 158°F)
Humidity : 10% to 90%, RHL non-condensing

Enclosure Type: Aluminum
Cooling : Fan ventilation
Size : ½ 19" 1U
Product Dimensions : 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
Product Weight : 0.5kg (1.2lbs) approx.
Shipping Dimensions : 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
Shipping Weight : 1.3kg (2.8lbs) approx.

Power adapter, rubber feet
