PT-872xr

Name: PT-872xr
Brand: Kramer
SKU: PT-872xr
Price: 261.17 EUR
Availability: OutOfStock

Kramer

4K HDR HDMI Compact PoC Receiver over Long-Reach DGKat 2.0

go to the technical sheet

€ 261,17

€ 242,95 VAT excl.

Available in 19 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

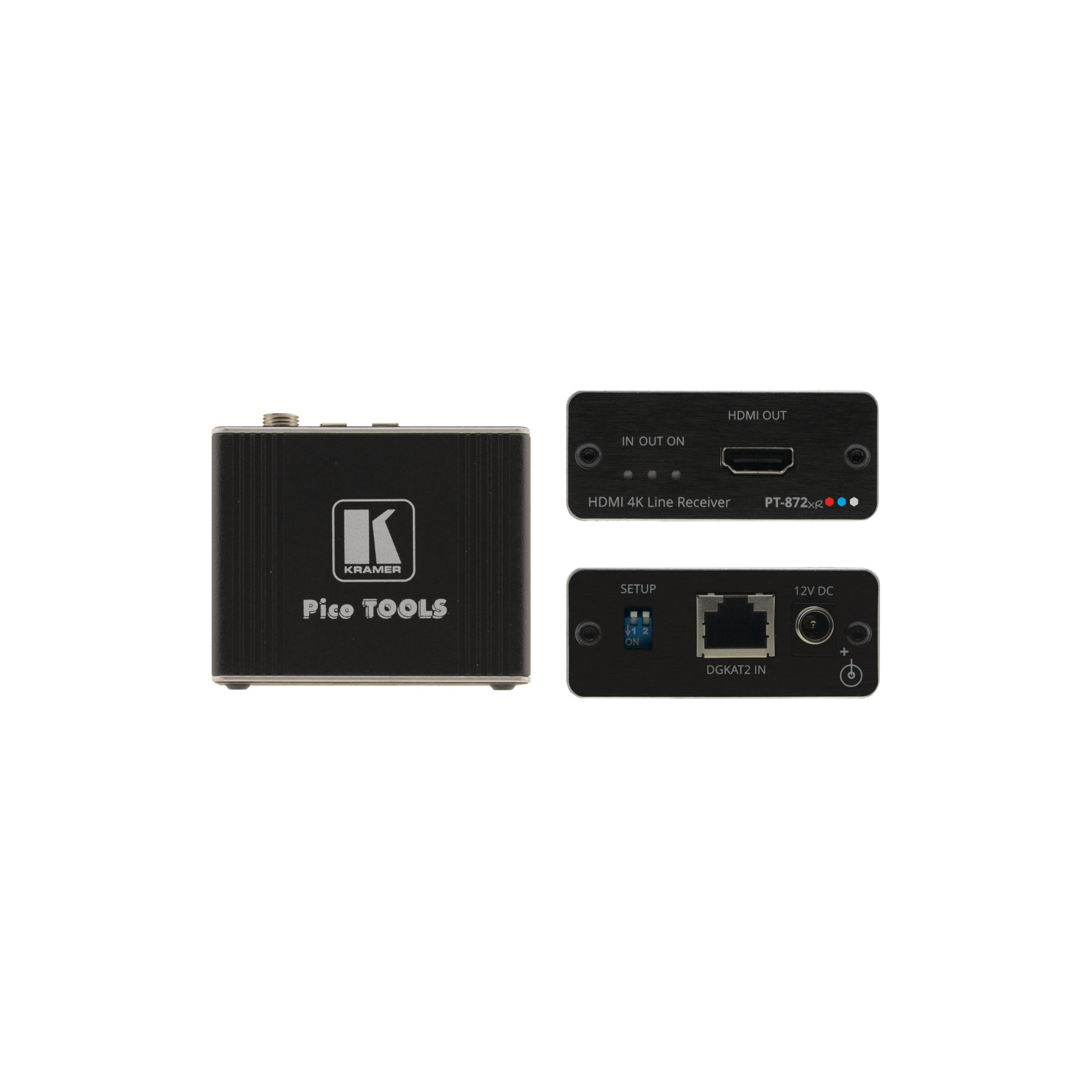

Kramer PT-872xr is a high-performance, long-reach DGKat™ 2.0 receiver for 4K@60Hz (4:4:4) HDR HDMI and HDCP 2.2 signals and 2-way powering over twisted pair. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT-872xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24 bpp resolution over Kramer shielded cables.

° High Performance Extender — Professional DGKat™ 2.0 receiver for providing long-reach signals and 2-way power over twisted pair copper infrastructures. PT-872xr employs low-level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal.
° HDMI Signal Extension — Supports HDR, HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
° EDID Pass-through — Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
° Multi-channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
° Cost-effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting.
° Easy Installation — Single twisted-pair cable for signal and power wiring. Compact PicoTOOLS® fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the optional, compatible Kramer rack adapter.

Specifications
------------------------------

Inputs
1 DGKat: On an RJ-45 female connector for extension line

Outputs
1 HDMI: On an HDMI female connector

Video
Transmitted Data Bandwidth: Up to 18Gbps (6Gbps per graphic channel)
Max Resolution at High Compression Level: 3840x2160@60Hz (4:4:4) 24bpp
Max Resolution at Standard Compression Level: 4096x2160@60Hz (4:4:4) 24bpp
Standards Compliance: HDR10, HDCP 2.2
HDMI Support: Supports HDR, HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

High Compression Reach Extension
Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
Using Plenum HDKat Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)

Standard Compression Reach Extension
Using Shielded UNIKAT Cables: Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

Extension Line
Signal Compression: Standard or high compression level applied to >1080p signals
Compliance: DGKat 2.0

User Interface
Indicators: IN, OUT, and ON LEDs
Controls: Dip-switches to define compression level

Power
Source: 12V DC, 2A
Consumption: 600mA

Environmental Conditions
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: -40° to +70°C (-40° to 158°F)
Humidity: 10% to 90%, RHL non-condensing

Enclosure
Size: Pico Tools
Type: Aluminum
Cooling: Convection ventilation

REGULATORY
Safety: CE, UL
Environmental: RoHs, WEEE

Product Dimensions
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
Product Weight
0.1kg (0.2lbs) approx.
Shipping Dimensions
49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H
Shipping Weight
0.5kg (1.1lbs) approx.
