12G-AM-T-ST

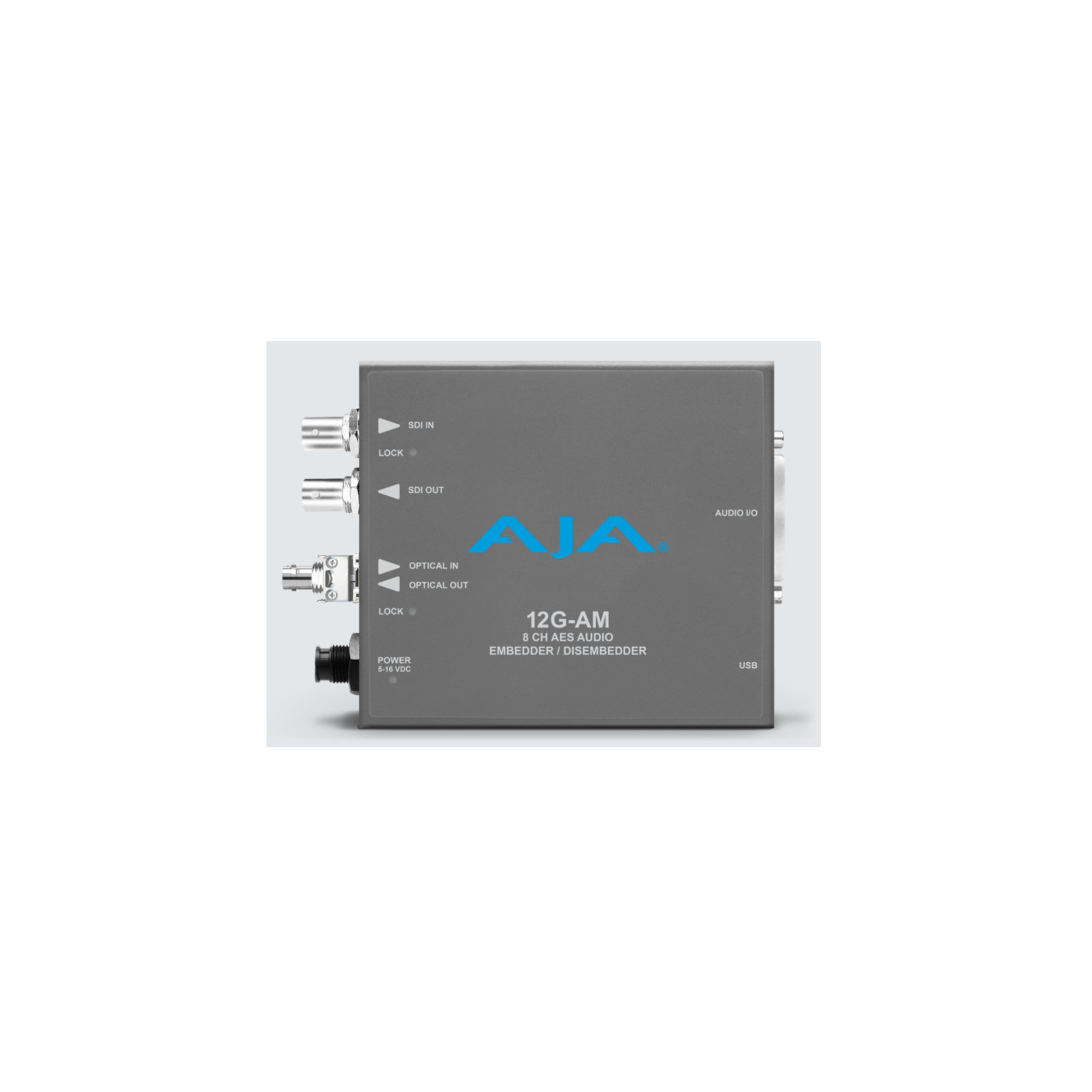

AJA 12G-SDI 8-Channel AES Embedder/Disembedder with ST Fiber Tx SFP - 12G-AM-TR

The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD.
Fiber models offer single link fiber I/O including LC and ST options.

AES Audio disembedding is always functional, providing four AES outputs.
Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.

The 12G-AM automatically detects and configures the input video standard

12G-SDI Input and Output up to 4K/UltraHD
8-channel balanced AES audio Embedder/Disembedder
Ships with a ST Fiber single channel SFP Transmitter for extending 4K/UltraHD signals over long distances
AES audio Disembedding is always functional with four AES outputs
AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
Selectable AES audio levels
Automatically detects and configures the input video standard
Small form factor allows for a wide variety of installation locations
Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
USB connectivity via AJA Mini-Config software
DIP Switch configuration
5-16 VDC Power
