3G-AM-BNC

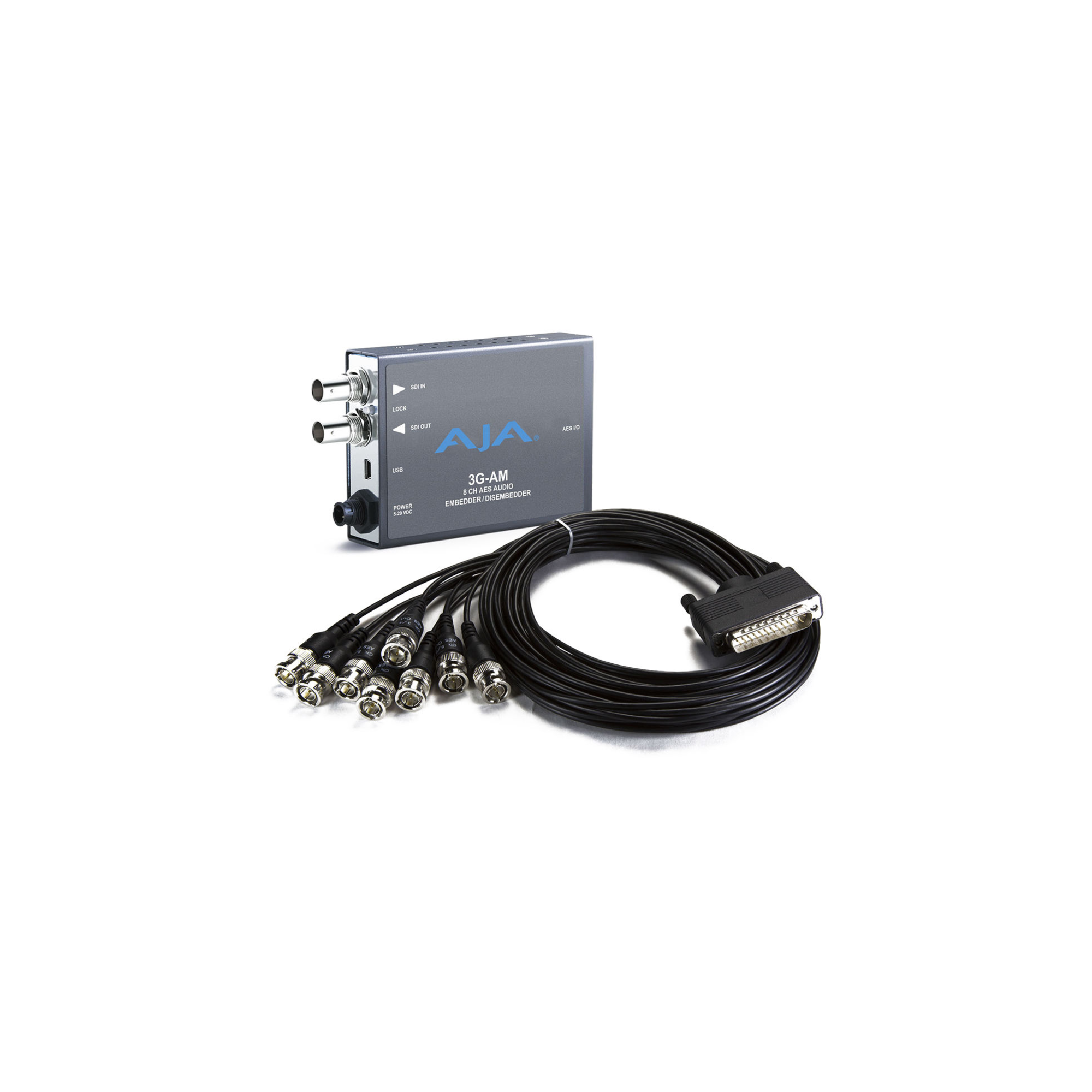

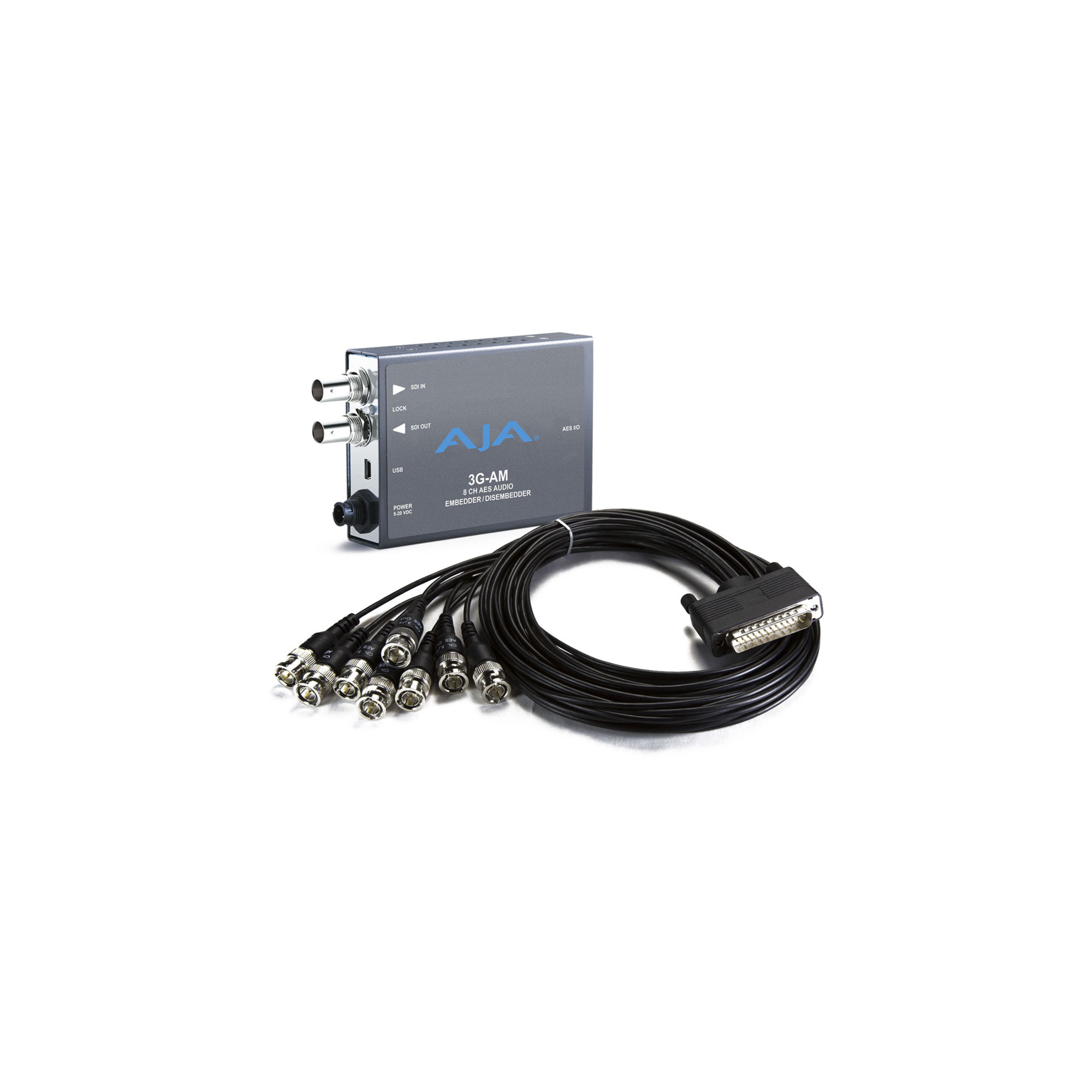

AJA 3G-AM 8-Channel AES Embedder/Disembedder with BNC Breakout Cable - 3G-AM-BNC

The 3G-AM from AJA is a triple rate 8-channel AES audio embedder/disembedder. AES audio can be embedded and disembedded simultaneously.
The embedder is user selectable, on a channel pair basis, to either "pass" existing SDI input audio or embed AES input audio from the breakout cable.
The ability to pass incoming ancillary data makes it possible to embed up to 16 channels of audio by cascading two units.

Horizontal ancillary data (HANC) packets in compliance with SMPTE 291M can also be dropped at the input.
The 3G-AM automatically detects and configures to the input video standard, and formats to a resolution of up to 2048 x 1080p. This unit includes an BNC connector AES breakout cable.

Triple rate 3G, HD, and SD-SDI embedder/disembedder
8-Channel AES I/O
BNC 3G-SDI input and output
Setup via DIP switch or Windows/Mac using USB port and supplied USB cable
