ATEM Microphone Converter

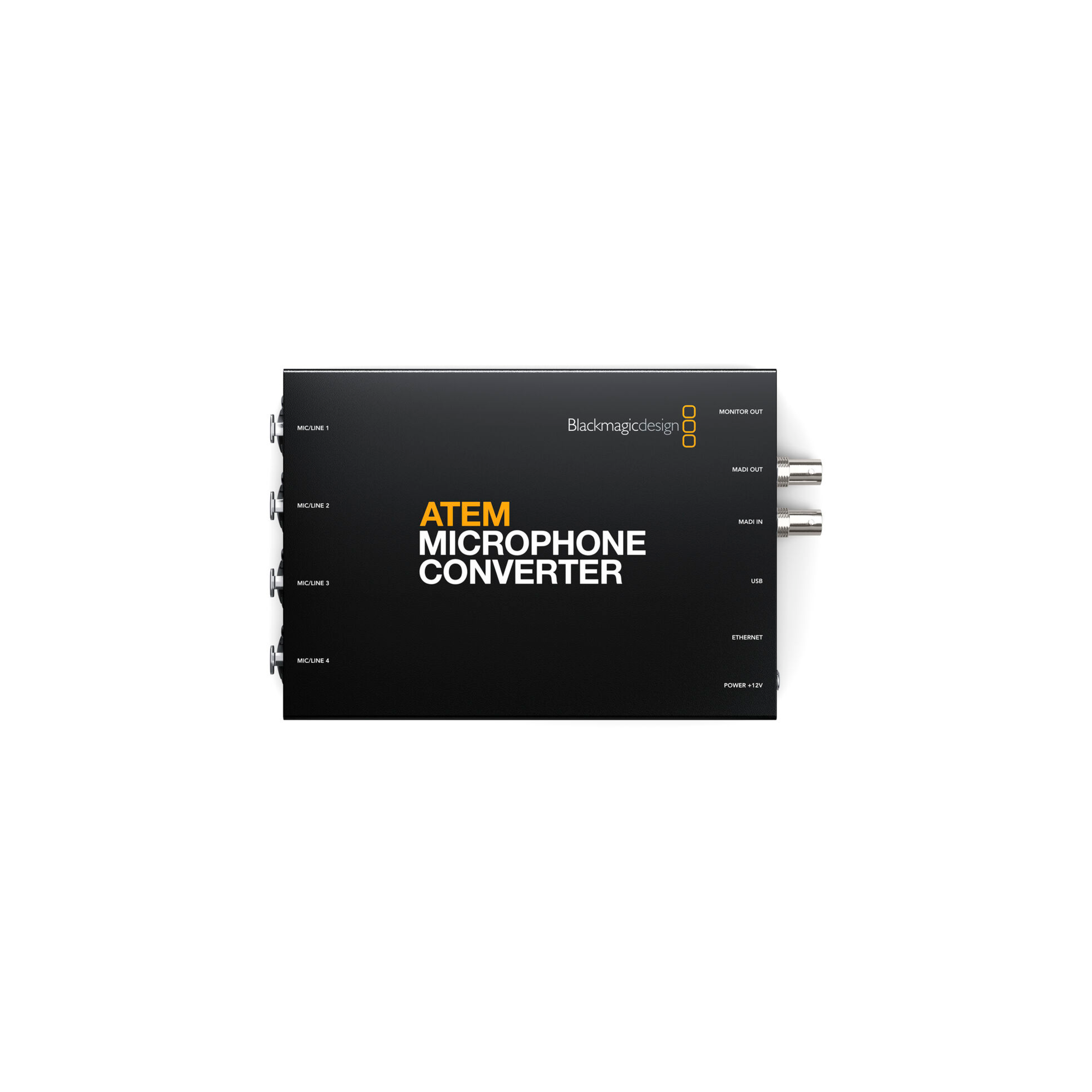

Blackmagic Design ATEM Microphone Converter - Black (SWATEMTVSTDMC)

The ATEM Microphone Converter features a familiar converter based design that has space for the analog electronics required for high quality analog to digital audio conversion (ADC).
It features combined XLR/TRS input sockets allowing both XLR or jack cables to be connected.
It also includes a MADI output with the converted audio, as well as a MADI input which allows multiple ATEM Microphone Converters to be daisy chained so more than 4 channels of audio can be embedded into a single MADI connection.

The ATEM Microphone Converter's MADI output embeds the 4 analog inputs as MADI channels 1, 2, 3 and 4. ATEM Microphone Converter also includes a MADI input, which is used to loop multiple converters when customers need more than 4 channels of audio on a single MADI link. This means if a second converter is connected to the input of another, the upstream converter will stack its 4 channels above the 4 channels on the downstream converter.

Each analog input channel has an ultra low noise, fixed gain pre amplifier scaled to drive a high dynamic range audio ADC.

The ATEM Microphone Converter steps outside conventional audio industry design practice of using an individual audio ADC, as each input implements analog to digital conversion using 8 high dynamic range audio ADCs that function collectively as one ultra high dynamic range audio ADC.
This means each input channel's dynamic range is an incredible 131 dB(A).

Expand audio inputs with ATEM Microphone Converter.
Robust converter style design.
Connects via MADI for multi channel audio.
Extremely low noise floor of -129dBV.
Ultra high dynamic range of 131 dB(A).
Precise input matching and low distortion of 0.002%.
Includes HDMI monitoring output with scrolling audio waveform display.
