ETH-GPI Link

Digital converter - ETH-GPI-LINK-V1

Configuring an I / O device has never been so flexible. Plug in and monitor anything from your tally lights, activate ATEM switcher routines, monitor a HyperDeck, switch scopes on a SmartScope Duo, and route inputs / outputs on a VideoHub. The definition of parameters - single or multiple - for inputs / outputs is extremely fast, thanks to the structure of the drop-down menu in UniSketch OS. Connect and control up to 8 devices at the same time!

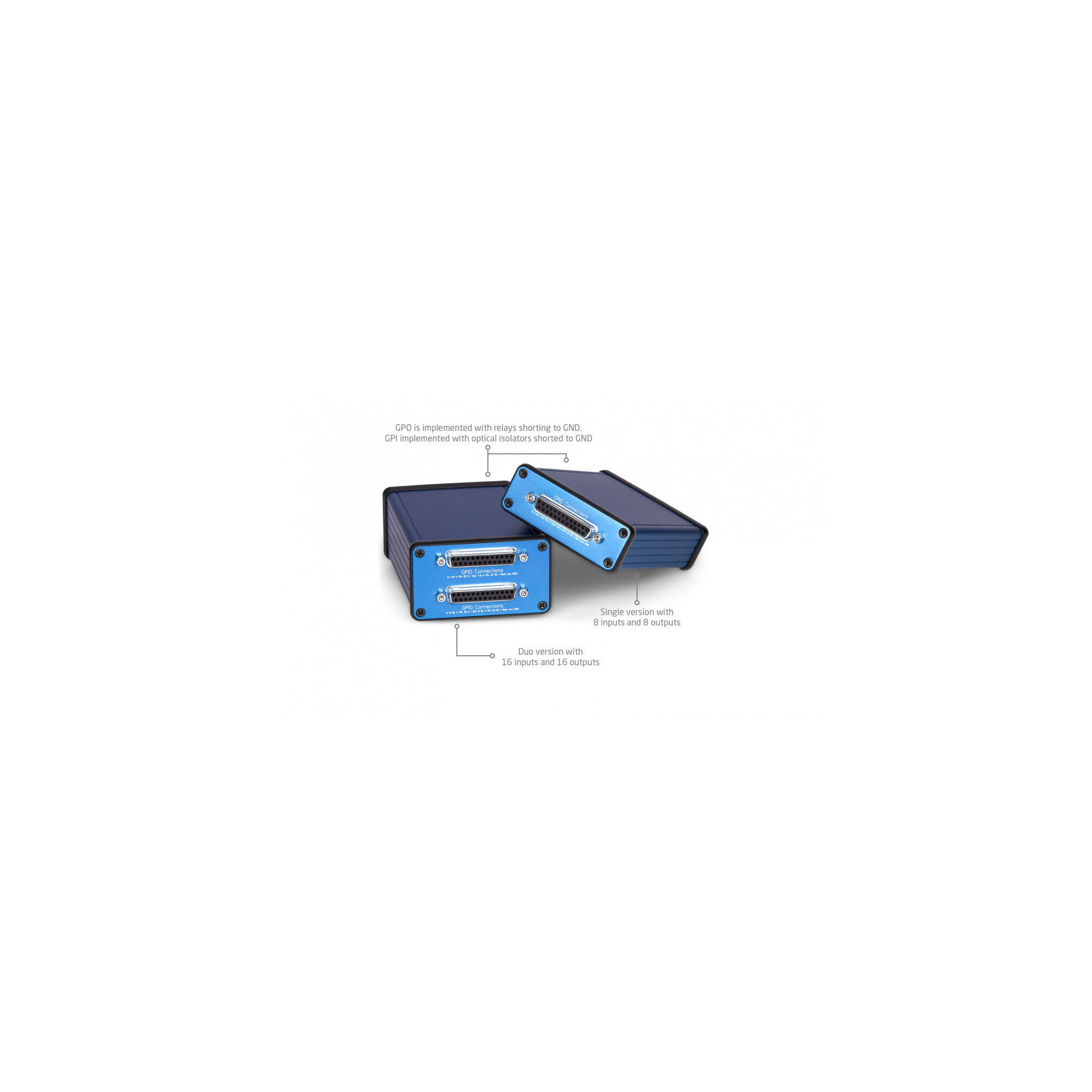

General purpose I / O controllers offer 8/16 inputs and 8/16 outputs, all electrically separated with quality relays and optocouplers. GPO is implemented with relay shorted to GND. GPI implemented with optical isolators shorted to GND.

Note: SKAARHOJ controllers with GPI inputs accept open collector and relay outputs (connected to GND). The default HD15 tally connector on the TriCaster TC1 does not provide a direct work signal to the ETH-GPI connection. It is necessary to convert the 5V potential to GND.
