CONVCMICHS12G

Name: CONVCMICHS12G
Brand: Blackmagic
SKU: CONVCMICHS12G
Price: 294173 NGN
Availability: InStock

Blackmagic

EAN: 9338716007060

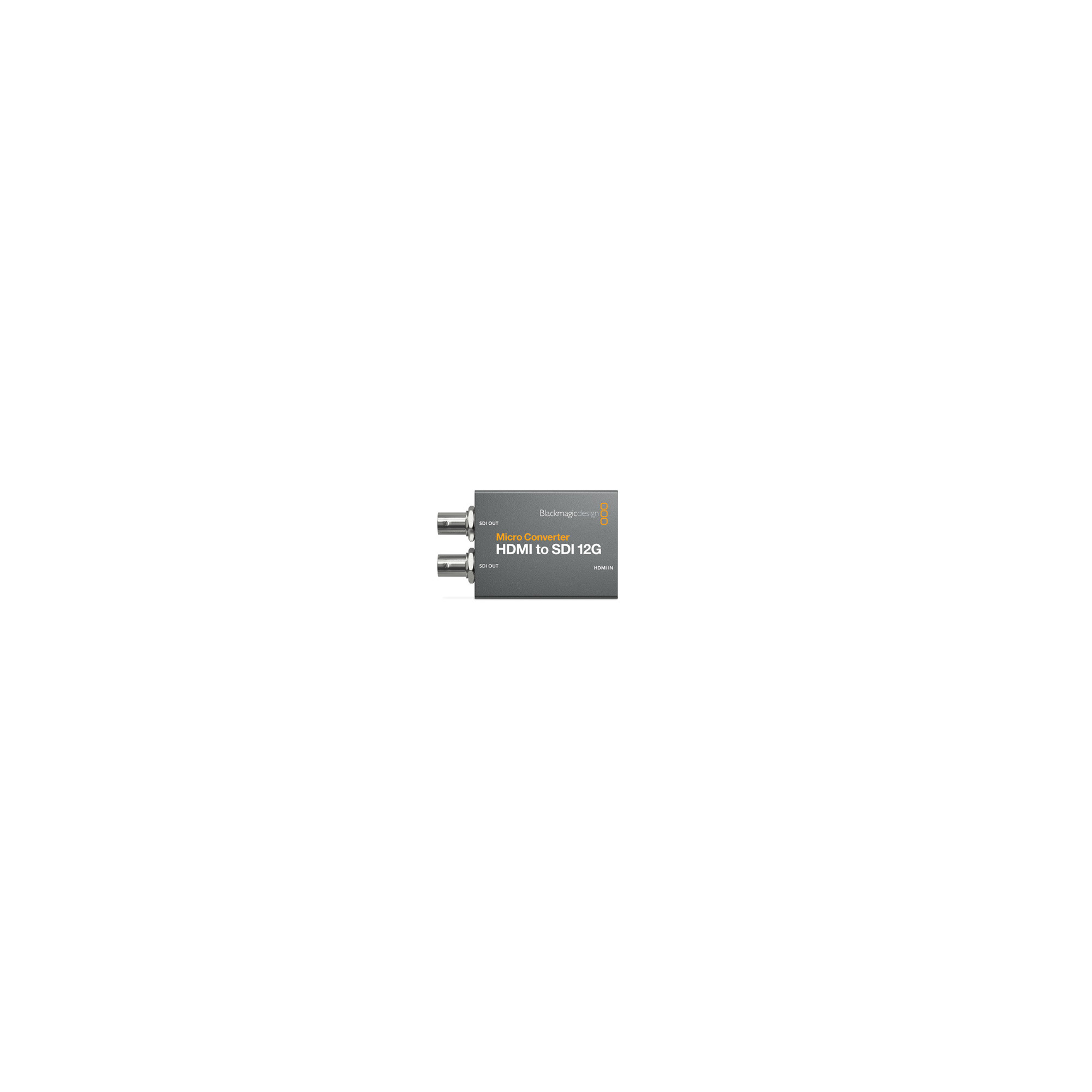

Micro Converter BiDirectional HDMI to SDI 12G - No power supply

go to the technical sheet

₦ 294,173.00

₦ 273,649.00 VAT excl.

Available 8 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

The world's smallest broadcast quality HDMI to 12G-SDI video converter! With its miniaturized yet broadcast quality design, it is perfect for connecting consumer video cameras and computers with HDMI connectivity to professional SDI equipment. It houses two 12G-SDI outputs configurable for 3G-SDI signal levels A or B. It boasts a standard HDMI connection and two professional 12G-SDI connections to work with all rates of NTSC, PAL, 720p, 1080p, 1080i and 2160p formats, including 4Kp24 / 47.95 / 48 DCI. Power it via USB from a laptop or phone charger

Power Supply & Chargers

Blackmagic

PSUPPLY-5V10WUSBC

₦ 78,259.00 VAT included

Available in 11 days

SDI video outputs: Automatically adapts to HDMI input
HDMI 2.0 video outputs: 1 x type A
SDI transmission: 270Mb, 1.5G, 3G, 6G, 12G
Multi-rate compatibility: SD, HD, 2K, Ultra HD and 4K automatically detected
Update, configuration and power supply: USB Type-C
Reclocking: Yes

Standard
SD video standard: 525i59.94 NTSC, 625i50 PAL

HD video standard:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

Ultra HD video standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
Compliance with SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
SDI transmission: SDI video connections switch between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD
and 4K DCI
SDI color accuracy: 4: 2: 2. You can load a 17-point LUT using the utility to calibrate or improve the color of the monitor
SDI color space: YUV
Auto SDI switching: SD, HD, Ultra HD and 4K DCI automatically detected. Level A and B selectable for 3G-SDI output

HDMI video standard:
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.

HDMI color accuracy: 4: 2: 2. You can load a 17-point LUT using the utility to calibrate or improve the color of the monitor
HDMI color space: YUV

Power Requirements
Power Consumption: 4W max
Operating voltage: 4.4 to 5.25V DC

Environmental Specifications
Operating temperature: 0 ° to 40 ° C
Storage temperature: -20 ° to 60 ° C
Relative humidity: 0% to 90% without condensation
